Part Details for WSL2010R5000FTB by Vishay Intertechnologies
Results Overview of WSL2010R5000FTB by Vishay Intertechnologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
WSL2010R5000FTB Information
WSL2010R5000FTB by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSL2010R5000FTB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSL2010R5000FTB
|
Avnet Americas | WSL-2010 .5 1% R79 - Tape and Reel (Alt: WSL2010R5000FTB) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.7680 / $0.8232 | Buy Now |
|
DISTI #
71-WSL2010R5000FTB
|
Mouser Electronics | Current Sense Resistors - SMD .5 OHM 1% 1/2W 75PPM | 0 |
|
$0.8450 | Order Now |
|
|
Bristol Electronics | 4048 |
|
RFQ | ||
|
|
Quest Components | FIXED RESISTOR, METAL STRIP, 0.5W, 0.5OHM, 0.5V, 1% +/-TOL, 75PPM/CEL, SURFACE MOUNT, 2010 | 1839 |
|
$0.4375 / $1.2500 | Buy Now |
|
|
Quest Components | FIXED RESISTOR, METAL STRIP, 0.5W, 0.5OHM, 0.5V, 1% +/-TOL, 75PPM/CEL, SURFACE MOUNT, 2010 | 298 |
|
$0.8000 / $2.0000 | Buy Now |
|
DISTI #
WSL2010R5000FTB
|
TTI | Current Sense Resistors - SMD .5 OHM 1% 1/2W 75PPM Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.7900 / $0.8400 | Buy Now |
Part Details for WSL2010R5000FTB

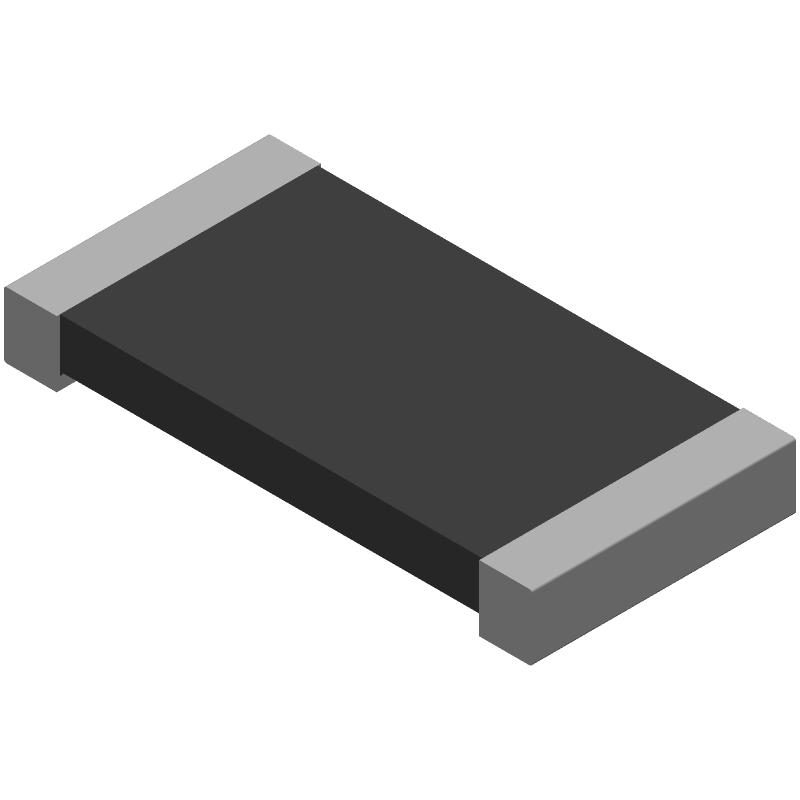

WSL2010R5000FTB CAD Models
WSL2010R5000FTB Part Data Attributes
|
|
WSL2010R5000FTB
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSL2010R5000FTB
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 0.5W, 0.5ohm, 0.5V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2010, CHIP
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| JESD-609 Code | e0 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.635 mm | |
| Package Length | 5.08 mm | |
| Package Style | SMT | |
| Package Width | 2.54 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 13 INCH | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.5 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2010 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 75 ppm/°C | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.5 V |
