Resistors / Wire Wound Resistors / WSC45271R300FEA
Datasheets

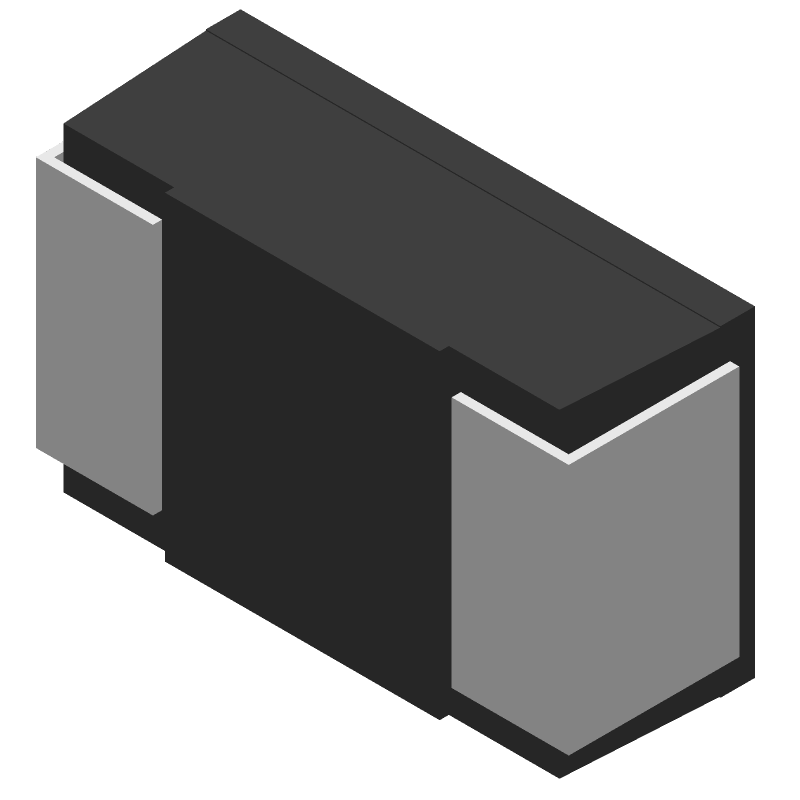

WSC45271R300FEA by:

Fixed Resistor, Wire Wound, 2W, 1.3ohm, 1.6125V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 4527, CHIP

Part Details for WSC45271R300FEA by Vishay Intertechnologies

Results Overview of WSC45271R300FEA by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics

WSC45271R300FEA Information

WSC45271R300FEA by Vishay Intertechnologies is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for WSC45271R300FEA

Part # Distributor Description Stock Price Buy
DISTI # 98AH6856
Newark Res Ww 4527 1.3 Ohm 1% 2W 50Ppm/ C Smd Rohs Compliant: Yes |Vishay WSC45271R300FEA RoHS: Compliant Min Qty: 1200 Package Multiple: 1 Date Code: 0 Container: Reel 7200
  • 1 $0.5570
  • 2,400 $0.4170
  • 4,800 $0.4120
$0.4120 / $0.5570 Buy Now
DISTI # WSC45271R300FEA
Avnet Americas WSC4527 1.3 1% EA e3 - Tape and Reel (Alt: WSC45271R300FEA) RoHS: Compliant Min Qty: 1200 Package Multiple: 1200 Lead time: 26 Weeks, 0 Days Container: Reel 7200
  • 1,200 $0.5567
  • 2,400 $0.4169
  • 4,800 $0.4117
  • 7,200 $0.4042
  • 9,600 $0.3923
$0.3923 / $0.5567 Buy Now
DISTI # 71-WSC45271R300FEA
Mouser Electronics Wirewound Resistors - SMD 1.30 OHM 1% 2W 50PPM RoHS: Compliant 0
  • 1 $2.2500
  • 10 $1.3700
  • 25 $1.2600
  • 50 $1.1500
  • 100 $0.9930
  • 250 $0.8390
  • 500 $0.7070
  • 1,200 $0.5830
  • 2,400 $0.5370
$0.5370 / $2.2500 Order Now
DISTI # WSC45271R300FEA
TTI Wirewound Resistors - SMD 1.30 OHM 1% 2W 50PPM RoHS: Compliant pbFree: Pb-Free Min Qty: 1200 Package Multiple: 1200 Container: Reel Americas - 2400
In Stock
  • 1,200 $0.5570
  • 2,400 $0.4180
  • 4,800 $0.4100
  • 7,200 $0.4020
  • 9,600 $0.3920
$0.3920 / $0.5570 Buy Now

Part Details for WSC45271R300FEA

WSC45271R300FEA Part Data Attributes

Parametric Data
WSC45271R300FEA Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
WSC45271R300FEA Vishay Intertechnologies Fixed Resistor, Wire Wound, 2W, 1.3ohm, 1.6125V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 4527, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 26 Weeks
Samacsys Manufacturer Vishay
Additional Feature PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 275 °C
Operating Temperature-Min -65 °C
Package Height 4.24 mm
Package Length 11.56 mm
Package Style SMT
Package Width 6.98 mm
Packing Method TR, EMBOSSED PLASTIC, 13 INCH
Rated Power Dissipation (P) 2 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 1.3 Ω
Resistor Type FIXED RESISTOR
Size Code 4527
Surface Mount YES
Technology WIRE WOUND
Temperature Coefficient 50 ppm/°C
Terminal Finish Matte Tin (Sn)
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 1.61 V
