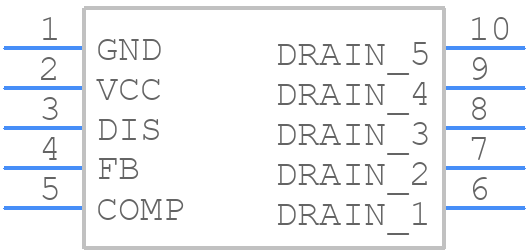

Part Symbol
-

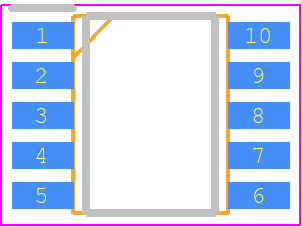

Footprint
-

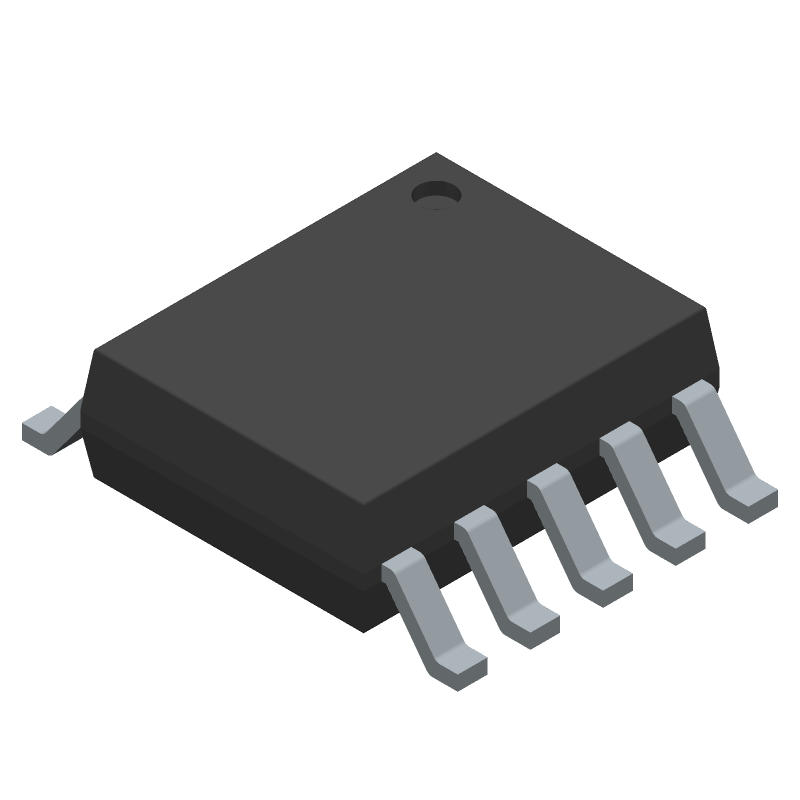

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VIPER012LS by STMicroelectronics
Results Overview of VIPER012LS by STMicroelectronics
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
VIPER012LS Information
VIPER012LS by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for VIPER012LS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98Y2517
|
Newark | Ac/Dc Conv, Buck-Boost/Flyback, Ssop-10, Input Voltage Ac Min:4.5V, Input Voltage Ac Max:30V, Ac/Dc Converter Case Style:Ssop, No. Of Pins:10Pins, Power Rating:1W, Topology:Buck, Buck-Boost, Flyback, Operating Temperature Rohs Compliant: Yes |Stmicroelectronics VIPER012LS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.4210 / $0.8900 | Buy Now |
|
DISTI #
497-VIPER012LS-ND
|
DigiKey | IC OFFLINE SW MULT TOP 10SSOP Min Qty: 1 Lead time: 18 Weeks Container: Tube |
2000 In Stock |
|
$0.4059 / $0.8900 | Buy Now |
|
DISTI #
VIPER012LS
|
Avnet Americas | Conv AC-DC Single Buck/Buck-Boost/Flyback 4.5V 30V 10-Pin SSOP T/R - Bulk (Alt: VIPER012LS) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3648 / $0.3732 | Buy Now |
|
DISTI #
511-VIPER012LS
|
Mouser Electronics | AC/DC Converters VIPerPlus family: Low volt energy saving fixed frequency high volt converter RoHS: Compliant | 1998 |
|
$0.4050 / $0.8900 | Buy Now |
|
DISTI #
E02:0323_09731575
|
Arrow Electronics | AC to DC Switching Converter Boost/Buck/Flyback/Off-Line Switcher 4.25V 66kHz Tube 10-Pin SSOP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2348 | Europe - 200 |
|
$0.8441 | Buy Now |
|
|
STMicroelectronics | VIPerPlus family: Low voltage energy saving fixed frequency high voltage converter COO: China RoHS: Compliant Min Qty: 1 | 2000 |
|
$0.4400 / $0.8700 | Buy Now |
|
DISTI #
87776494
|
Verical | AC to DC Switching Converter Boost/Buck/Flyback/Off-Line Switcher 4.25V 66kHz Tube 10-Pin SSOP RoHS: Compliant Min Qty: 14 Package Multiple: 1 Date Code: 2348 | Americas - 196 |
|
$0.8360 | Buy Now |
|
DISTI #
VIPER012LS
|
TME | IC: driver, buck,buck-boost,flyback, SSOP10, 2A, 800V, Ch: 1, 0÷80% Min Qty: 1 | 373 |
|
$0.6700 / $0.9700 | Buy Now |
|
DISTI #
VIPER012LS
|
Avnet Silica | Conv ACDC Single BuckBuckBoostFlyback 45V 30V 10Pin SSOP TR (Alt: VIPER012LS) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 17 Weeks, 0 Days | Silica - 4000 |
|
Buy Now | |
|
DISTI #
VIPER012LS
|
EBV Elektronik | Conv ACDC Single BuckBuckBoostFlyback 45V 30V 10Pin SSOP TR (Alt: VIPER012LS) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 19 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for VIPER012LS
VIPER012LS CAD Models
VIPER012LS Part Data Attributes
|
|
VIPER012LS
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
VIPER012LS
STMicroelectronics
VIPerPlus family: Low voltage energy saving fixed frequency high voltage converter
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | SSOP-10 | |
| Manufacturer Package Code | SSOP 10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | PFM CONTROL TECHNIQUE ALSO AVAILABLE | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 9 V | |
| JESD-30 Code | R-PDSO-G10 | |
| Length | 4.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP10,.25,40 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 1.5 mA | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 132 kHz | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm |
VIPER012LS Frequently Asked Questions (FAQ)
-
A good PCB layout for VIPER012LS involves keeping the high-frequency switching nodes (e.g., drain and source of the power MOSFET) as close as possible to the IC, and using a solid ground plane to reduce EMI. Additionally, it's recommended to use a separate power ground plane for the IC and the power stage.
-
To ensure reliable startup and shutdown, make sure to follow the recommended startup and shutdown sequences outlined in the datasheet. Additionally, ensure that the input voltage rises and falls slowly (e.g., < 10 ms) to prevent false triggering of the overvoltage protection.
-
The maximum allowed voltage on the VCC pin is 15 V, but it's recommended to keep it below 12 V to ensure reliable operation and prevent damage to the IC.
-
Choose external components based on the specific application requirements, such as output voltage, current, and frequency. Refer to the datasheet and application notes for guidance on component selection and calculation formulas.
-
The VIPER012LS has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink, thermal interface material, and a PCB design that allows for good airflow. Calculate the thermal resistance of the system and ensure it's within the recommended range.
