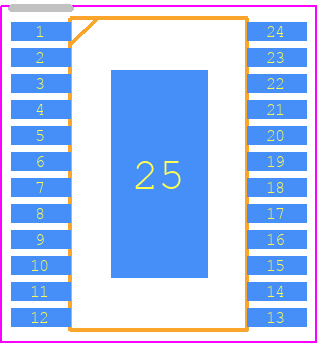

Footprint
-

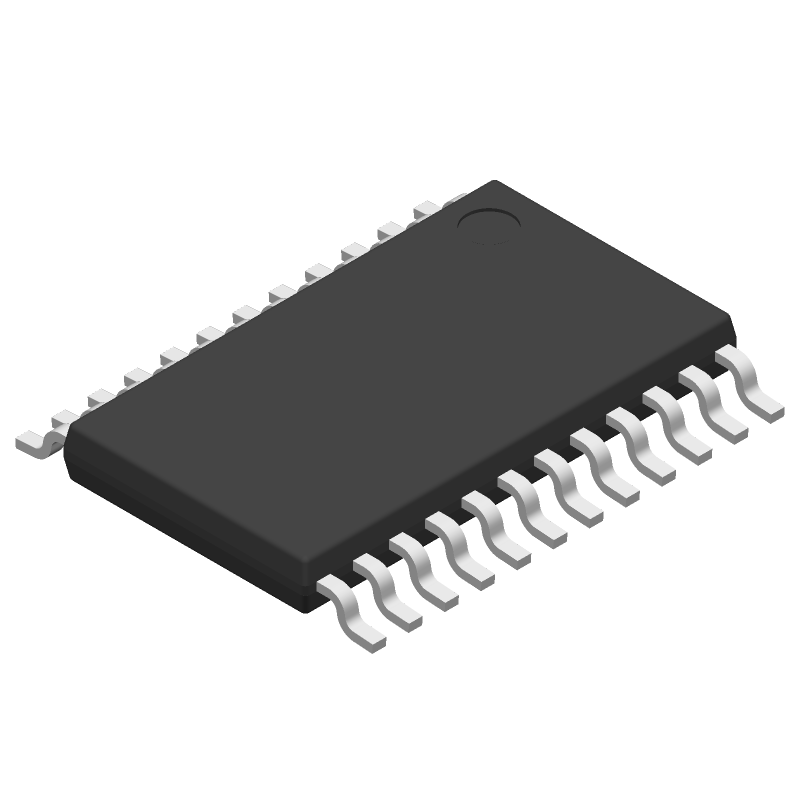

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPA2000D2PWPG4 by Texas Instruments
Results Overview of TPA2000D2PWPG4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
Price & Stock for TPA2000D2PWPG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 1262 |
|
RFQ |
Part Details for TPA2000D2PWPG4
TPA2000D2PWPG4 CAD Models
TPA2000D2PWPG4 Part Data Attributes
|
|
TPA2000D2PWPG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPA2000D2PWPG4
Texas Instruments
2-W, stereo, analog input Class-D audio amplifier 24-HTSSOP -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | HTSSOP, TSSOP24,.25 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Bandwidth-Nom | 20 kHz | |
| Consumer IC Type | CLASS D AUDIO AMPLIFIER | |
| Gain | 23.5 dB | |
| Harmonic Distortion | 0.1% | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 7.8 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Power-Nom | 2 W | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP24,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 10 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4.4 mm |
Alternate Parts for TPA2000D2PWPG4
This table gives cross-reference parts and alternative options found for TPA2000D2PWPG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPA2000D2PWPG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPA2000D2PWPRG4 | Texas Instruments | Check for Price | 2W, 2 CHANNEL, AUDIO AMPLIFIER, PDSO24, GREEN, PLASTIC, HTSSOP-24 | TPA2000D2PWPG4 vs TPA2000D2PWPRG4 |
| TPA2000D2PWP | Texas Instruments | Check for Price | 2-W, stereo, analog input Class-D audio amplifier 24-HTSSOP -40 to 85 | TPA2000D2PWPG4 vs TPA2000D2PWP |
| TPA005D02DCA | Texas Instruments | Check for Price | 2 W Stereo Class-D Audio Amplifier 48-HTSSOP -40 to 125 | TPA2000D2PWPG4 vs TPA005D02DCA |
| LM4663MTX/NOPB | Texas Instruments | Check for Price | 2.1W, 2 CHANNEL, AUDIO AMPLIFIER, PDSO24, TSSOP-24 | TPA2000D2PWPG4 vs LM4663MTX/NOPB |
| LM4663MT/NOPB | National Semiconductor Corporation | Check for Price | Audio Amplifier, 2.1W, 2 Channel(s), 1 Func, PDSO24 | TPA2000D2PWPG4 vs LM4663MT/NOPB |
