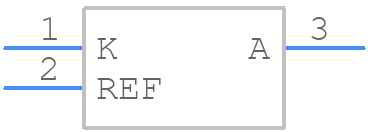

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL431AIDBZR,215 by Nexperia
Results Overview of TL431AIDBZR,215 by Nexperia
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
TL431AIDBZR,215 Information
TL431AIDBZR,215 by Nexperia is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TL431AIDBZR,215
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
91T5103
|
Newark | Volt Ref, Shunt-Adj, 2.495V-36V, Sot-23, Voltage Reference Type:Shunt - Adjustable, Product Range:Tl431 Series, Reference Voltage Min:2.495V, Reference Voltage Max:36V, Initial Accuracy:1%, Temperature Coefficient:- Rohs Compliant: Yes |Nexperia TL431AIDBZR,215 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 255067 |
|
$0.1380 / $0.2690 | Buy Now |
|
DISTI #
1727-4260-1-ND
|
DigiKey | IC VREF SHUNT ADJ 1% TO236AB Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
38964 In Stock |
|
$0.0835 / $0.2300 | Buy Now |
|
DISTI #
TL431AIDBZR,215
|
Avnet Americas | Voltage Reference, Shunt - Adjustable, 2.47 V to 2.52 V, 3 Pins, SOT-23 - Tape and Reel (Alt: TL431AIDBZR,215) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 75000 |
|
$0.0785 | Buy Now |
|
DISTI #
771-TL431AIDBZR215
|
Mouser Electronics | Voltage References Adjustable precision shunt regulators RoHS: Compliant | 339825 |
|
$0.0760 / $0.2300 | Buy Now |
|
DISTI #
A03:0893_00685443
|
Arrow Electronics | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2420 | Asia - 285000 |
|
$0.0499 / $0.0755 | Buy Now |
|
DISTI #
E02:0323_00685443
|
Arrow Electronics | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2421 | Europe - 18000 |
|
$0.0785 | Buy Now |
|
DISTI #
V72:2272_06547379
|
Arrow Electronics | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1447 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2224 Container: Cut Strips | Americas - 2007 |
|
$0.0691 | Buy Now |
|
DISTI #
86041781
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3551 Package Multiple: 1 Date Code: 2301 | Americas - 1365970 |
|
$0.1056 | Buy Now |
|
DISTI #
17894094
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 285000 |
|
$0.0499 / $0.0755 | Buy Now |
|
DISTI #
86044273
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3551 Package Multiple: 1 Date Code: 2201 | Americas - 144000 |
|
$0.1056 | Buy Now |
Part Details for TL431AIDBZR,215
TL431AIDBZR,215 CAD Models
TL431AIDBZR,215 Part Data Attributes
|
|
TL431AIDBZR,215
Nexperia
Buy Now
Datasheet
|
Compare Parts:
TL431AIDBZR,215
Nexperia
TL431 family - Adjustable precision shunt regulator@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TO-236 | |
| Package Description | PLASTIC, TO-236AB, SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 2.52 V | |
| Output Voltage-Min | 2.47 V | |
| Output Voltage-Nom | 2.495 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 36 V | |
| Supply Voltage-Min (Vsup) | 2.47 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | YES | |
| Width | 1.3 mm |
TL431AIDBZR,215 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for TL431AIDBZR,215 is -40°C to 125°C.
-
To ensure stability, make sure to decouple the TL431AIDBZR,215 with a capacitor (e.g., 10nF) between the REF and ADJ pins, and use a low-ESR capacitor (e.g., 10uF) between the VIN and GND pins.
-
The maximum allowed voltage on the VIN pin is 36V. Exceeding this voltage may damage the device.
-
Yes, the TL431AIDBZR,215 can be used as a voltage regulator. It can be configured to regulate a fixed voltage or a variable voltage using an external resistor divider.
-
The output voltage of the TL431AIDBZR,215 can be calculated using the formula: Vout = Vref * (1 + R1/R2), where Vref is the internal reference voltage (2.5V), and R1 and R2 are the external resistors.
