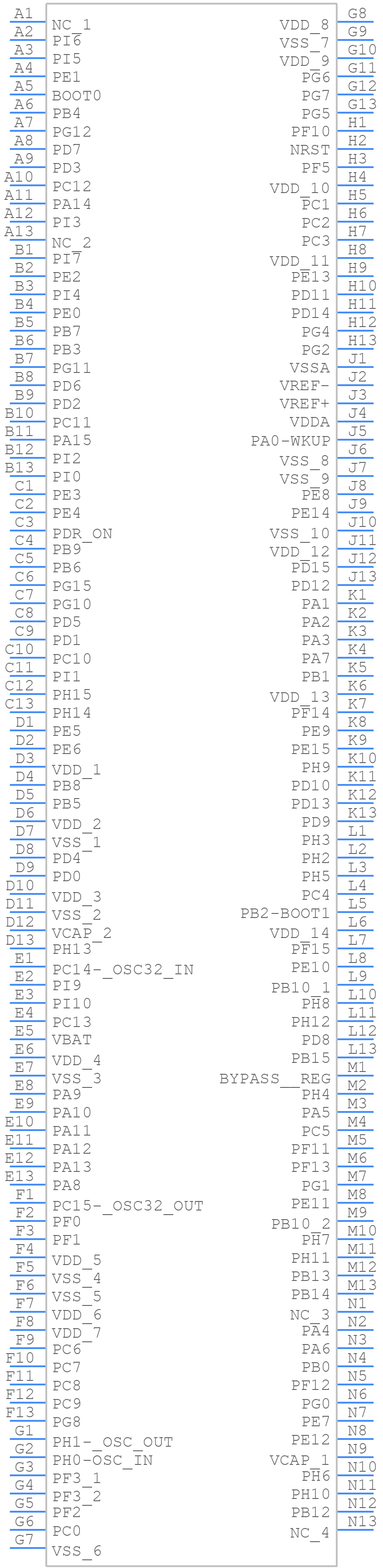

Part Symbol
-

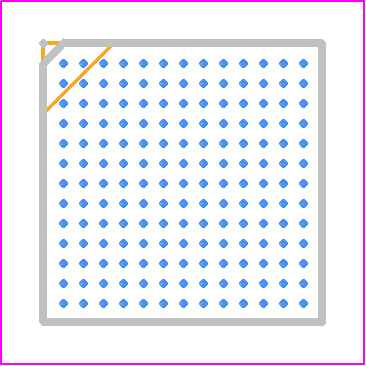

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32F427AIH6TR by STMicroelectronics
Results Overview of STM32F427AIH6TR by STMicroelectronics
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
STM32F427AIH6TR Information
STM32F427AIH6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32F427AIH6TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
STM32F427AIH6TR-ND
|
DigiKey | IC MCU 32BIT 2MB FLASH 169UFBGA Min Qty: 2500 Lead time: 15 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$9.5437 | Buy Now |
|
DISTI #
STM32F427AIH6TR
|
Avnet Americas | ARM Based Microcontroller 32-Bit 2V to 3.6V RISC 180MHz 169-Pin BGA Surface Mount T/R - Tape and Reel (Alt: STM32F427AIH6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days Container: Reel | 2500 |
|
$9.1619 / $9.3528 | Buy Now |
|
DISTI #
511-STM32F427AIH6TR
|
Mouser Electronics | ARM Microcontrollers - MCU High-performance advanced line, Arm Cortex-M4 core DSP & FPU, 2 Mbytes of Flash RoHS: Compliant | 0 |
|
$9.5400 | Order Now |
|
|
STMicroelectronics | High-performance advanced line, Arm Cortex-M4 core with DSP and FPU, 2 Mbytes of Flash memory, 180 MHz CPU, ART Accelerator, Chrom-ART Accelerator, FMC with SDRAM COO: Philippines RoHS: Compliant Min Qty: 1 | 0 |
|
$10.9800 / $15.9000 | Buy Now |
|
DISTI #
SMC-STM32F427AIH6TR
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 70000 |
|
RFQ | |
|
DISTI #
STM32F427AIH6TR
|
Avnet Silica | ARM Based Microcontroller 32Bit 2V to 36V RISC 180MHz 169Pin BGA Surface Mount TR (Alt: STM32F427AIH6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STM32F427AIH6TR
|
EBV Elektronik | ARM Based Microcontroller 32Bit 2V to 36V RISC 180MHz 169Pin BGA Surface Mount TR (Alt: STM32F427AIH6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for STM32F427AIH6TR
STM32F427AIH6TR CAD Models
STM32F427AIH6TR Part Data Attributes
|
|
STM32F427AIH6TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32F427AIH6TR
STMicroelectronics
High-performance advanced line, Arm Cortex-M4 core with DSP and FPU, 2 Mbytes of Flash memory, 180 MHz CPU, ART Accelerator, Chrom-ART Accelerator, FMC with SDRAM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | UFBGA-169 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | 26 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | CORTEX-M4 | |
| Clock Frequency-Max | 26 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | 32 | |
| Format | FLOATING POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PBGA-B169 | |
| Length | 7 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 2 | |
| Number of External Interrupts | 16 | |
| Number of I/O Lines | 130 | |
| Number of Serial I/Os | 6 | |
| Number of Terminals | 169 | |
| Number of Timers | 15 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA169,13X13,20 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| RAM (bytes) | 266240 | |
| ROM (words) | 2097152 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 0.6 mm | |
| Speed | 180 MHz | |
| Supply Current-Max | 100 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for STM32F427AIH6TR
This table gives cross-reference parts and alternative options found for STM32F427AIH6TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F427AIH6TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STM32F427AIH6XXXTR | STMicroelectronics | Check for Price | IC,MICROCONTROLLER,32-BIT,CORTEX-M4 CPU,CMOS,BGA,169PIN,PLASTIC | STM32F427AIH6TR vs STM32F427AIH6XXXTR |
| STM32F427AIH7XXXTR | STMicroelectronics | Check for Price | IC,MICROCONTROLLER,32-BIT,CORTEX-M4 CPU,CMOS,BGA,169PIN,PLASTIC | STM32F427AIH6TR vs STM32F427AIH7XXXTR |
| STM32F427AIH7 | STMicroelectronics | Check for Price | 32-BIT, FLASH, 180MHz, RISC MICROCONTROLLER, PBGA169, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, UFBGA-169 | STM32F427AIH6TR vs STM32F427AIH7 |
STM32F427AIH6TR Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the STM32F427AIH6TR is -40°C to 105°C (industrial grade) and -40°C to 125°C (extended grade).
-
The clock speed of the STM32F427AIH6TR can be configured using the Clock Control Register (RCC) and the Power Management Unit (PMU). The clock speed can be set to 180 MHz, 168 MHz, or 144 MHz, depending on the application requirements.
-
The STM32F427AIH6TR has 2 MB of Flash memory and 256 KB of SRAM, with an additional 4 KB of backup SRAM.
-
The DMA controller on the STM32F427AIH6TR can be used to transfer data between peripherals and memory without CPU intervention. The DMA controller has 16 channels and supports various transfer modes, including circular buffer mode and double-buffer mode.
-
The power consumption of the STM32F427AIH6TR depends on the operating frequency, voltage, and peripherals used. In low-power mode, the device can consume as low as 2.5 μA/MHz, while in high-performance mode, it can consume up to 400 mA.
