Drivers And Interfaces / Line Driver or Receivers / SN75LBC174DW
Datasheets
SN75LBC174DW by:

Quadruple Low-Power Differential Line Driver 20-SOIC 0 to 70

Part Details for SN75LBC174DW by Texas Instruments

Results Overview of SN75LBC174DW by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SN75LBC174DW Information

SN75LBC174DW by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for SN75LBC174DW

Part # Distributor Description Stock Price Buy
DISTI # 2156-SN75LBC174DW-ND
DigiKey IC TRANSCEIVER 4/0 20SOIC Min Qty: 1 Lead time: 20 Weeks Container: Bulk MARKETPLACE PRODUCT 675
In Stock
  • 74 $4.0600
$4.0600 Buy Now
DISTI # 296-6869-5-ND
DigiKey IC TRANSCEIVER 4/0 20SOIC Min Qty: 1 Lead time: 20 Weeks Container: Tube 30
In Stock
  • 1 $6.9900
  • 10 $5.3870
  • 25 $4.9868
$4.9868 / $6.9900 Buy Now
DISTI # V99:2348_07361314
Arrow Electronics Quad Transmitter RS-485 20-Pin SOIC Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2236 Americas - 92
  • 1 $4.1390
  • 10 $3.8470
  • 25 $3.7500
  • 500 $3.7290
  • 1,000 $3.7120
$3.7120 / $4.1390 Buy Now
DISTI # 86037984
Verical Quad Transmitter RS-485 20-Pin SOIC Tube RoHS: Compliant Min Qty: 77 Package Multiple: 1 Date Code: 0401 Americas - 400
  • 77 $4.8750
  • 100 $4.6375
  • 500 $4.3875
  • 1,000 $4.1500
  • 10,000 $3.9000
$3.9000 / $4.8750 Buy Now
DISTI # 86038862
Verical Quad Transmitter RS-485 20-Pin SOIC Tube RoHS: Compliant Min Qty: 77 Package Multiple: 1 Americas - 275
  • 77 $4.8750
  • 100 $4.6375
  • 500 $4.3875
  • 1,000 $4.1500
  • 10,000 $3.9000
$3.9000 / $4.8750 Buy Now
Bristol Electronics   341
RFQ
Quest Components QUAD LINE DRIVER, PDSO20 37
  • 1 $8.2800
  • 2 $5.5200
  • 6 $4.1400
$4.1400 / $8.2800 Buy Now
Rochester Electronics SN75LBC174 Quadruple Low-Power Differential Line Driver RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 675
  • 25 $3.9000
  • 100 $3.7100
  • 500 $3.5100
  • 1,000 $3.3200
  • 10,000 $3.1200
$3.1200 / $3.9000 Buy Now
DISTI # SN75LBC174DW
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 132
  • 1 $4.0400
$4.0400 Buy Now

Part Details for SN75LBC174DW

SN75LBC174DW CAD Models

  • Part Symbol

    Part Symbol

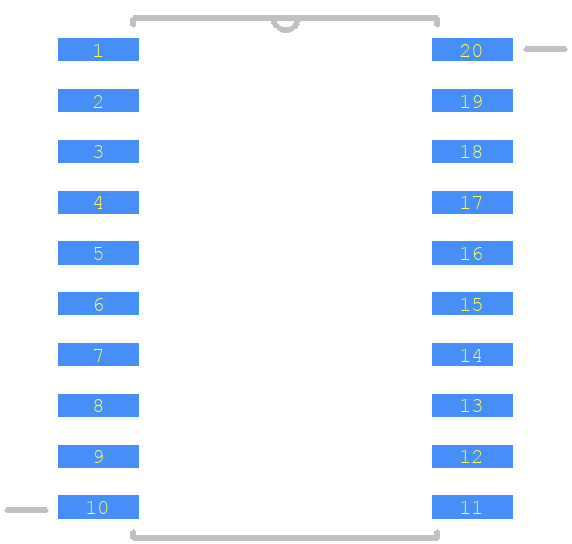

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SN75LBC174DW Part Data Attributes

Parametric Data
SN75LBC174DW Texas Instruments
Buy Now Datasheet
Compare Parts:
SN75LBC174DW Texas Instruments Quadruple Low-Power Differential Line Driver 20-SOIC 0 to 70
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description GREEN, PLASTIC, SOIC-20
Pin Count 20
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Differential Output YES
Driver Number of Bits 4
High Level Input Current-Max 0.0001 A
Input Characteristics STANDARD
Interface IC Type LINE DRIVER
Interface Standard EIA-485
JESD-30 Code R-PDSO-G20
JESD-609 Code e4
Length 12.8 mm
Moisture Sensitivity Level 1
Number of Functions 4
Number of Terminals 20
Operating Temperature-Max 70 °C
Operating Temperature-Min
Out Swing-Min 1.5 V
Output Characteristics 3-STATE
Output Low Current-Max 0.000059999999999999995 A
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Supply Current-Max 7 mA
Supply Voltage-Max 5.25 V
Supply Voltage-Min 4.75 V
Supply Voltage-Nom 5 V
Supply Voltage1-Max 5.25 V
Supply Voltage1-Min 4.75 V
Supply Voltage1-Nom 5 V
Surface Mount YES
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transmit Delay-Max 20 ns
Width 7.5 mm

Alternate Parts for SN75LBC174DW

This table gives cross-reference parts and alternative options found for SN75LBC174DW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SN75LBC174DW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SN75LBC174DWR Texas Instruments $2.5236 Quadruple Low-Power Differential Line Driver 20-SOIC 0 to 70 SN75LBC174DW vs SN75LBC174DWR
Part Number Manufacturer Composite Price Description Compare
AM26LS32BJC AMD Check for Price Line Receiver, 4 Func, 4 Rcvr, BIPolar, PQCC20, PLASTIC, LCC-20 SN75LBC174DW vs AM26LS32BJC
5962-9164001MEX National Semiconductor Corporation Check for Price IC QUAD LINE RECEIVER, CDIP16, CERDIP-16, Line Driver or Receiver SN75LBC174DW vs 5962-9164001MEX
5962F9666301QXX Renesas Electronics Corporation Check for Price Line Driver, 4 Func, 4 Driver, CMOS, CDFP16 SN75LBC174DW vs 5962F9666301QXX
5962F7802005VFA National Semiconductor Corporation Check for Price IC QUAD LINE RECEIVER, CDFP16, CERPACK-16, Line Driver or Receiver SN75LBC174DW vs 5962F7802005VFA
DS3487N/NOPB Texas Instruments Check for Price IC QUAD LINE DRIVER, PDIP16, PLASTIC, DIP-16, Line Driver or Receiver SN75LBC174DW vs DS3487N/NOPB
AM26LS31CDBRE4 Texas Instruments Check for Price Quadruple differential line driver 16-SSOP 0 to 70 SN75LBC174DW vs AM26LS31CDBRE4
SN75ALS193DE4 Texas Instruments Check for Price Quadruple Differential Line Receiver 16-SOIC 0 to 70 SN75LBC174DW vs SN75ALS193DE4
ST34C87IP16 Exar Corporation Check for Price Line Driver, 4 Func, 4 Driver, CMOS, PDIP16, 0.300 INCH, PLASTIC, DIP-16 SN75LBC174DW vs ST34C87IP16
ST34C87CP16 Startech Semiconductor Inc Check for Price Line Driver, 2 Func, 2 Driver, CMOS, PDIP16, SN75LBC174DW vs ST34C87CP16
5962-7802001M2A QP Semiconductor Check for Price Line Receiver, 4 Func, 4 Rcvr, CQCC20, CERAMIC, LCC-20 SN75LBC174DW vs 5962-7802001M2A

SN75LBC174DW Related Parts

SN75LBC174DW Frequently Asked Questions (FAQ)

  • The SN75LBC174DW can support data rates up to 400 Mbps.

  • Yes, the SN75LBC174DW is compatible with other LVDS standards, including TIA/EIA-644 and IEEE 1596.3.

  • The power consumption of the SN75LBC174DW is typically around 150 mW, but can vary depending on the operating conditions.

  • Yes, the SN75LBC174DW is rated for operation up to 125°C, making it suitable for high-temperature applications.

  • No, the SN75LBC174DW is not radiation-hardened. It is not designed for use in radiation-intensive environments.
