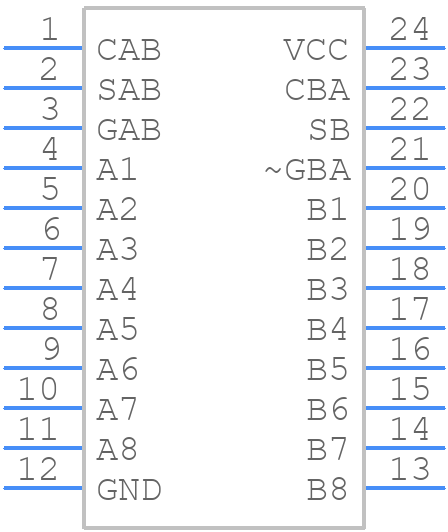

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SN74LS652DW by Texas Instruments
Results Overview of SN74LS652DW by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Financial Technology (Fintech)
Computing and Data Storage
Telecommunications
Communication and Networking
SN74LS652DW Information
SN74LS652DW by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for SN74LS652DW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-SN74LS652DW-ND
|
DigiKey | IC TXRX NON-INVERT 5.25V 24SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
13212 In Stock |
|
$6.2600 | Buy Now |
|
DISTI #
296-34023-5-ND
|
DigiKey | IC TXRX NON-INVERT 5.25V 24SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
121 In Stock |
|
$6.2901 / $10.3800 | Buy Now |
|
DISTI #
595-SN74LS652DW
|
Mouser Electronics | Bus Transceivers Octal Bus Transcvrs & Reg RoHS: Compliant | 152 |
|
$6.0900 / $10.3800 | Buy Now |
|
DISTI #
86285885
|
Verical | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC Tube RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 0001 | Americas - 13061 |
|
$6.0250 / $7.5250 | Buy Now |
|
DISTI #
86285736
|
Verical | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC Tube RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 1401 | Americas - 100 |
|
$6.0250 / $7.5250 | Buy Now |
|
DISTI #
87073873
|
Verical | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC Tube RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 1001 | Americas - 50 |
|
$6.0250 / $7.5250 | Buy Now |
|
|
Quest Components | 145 |
|
$8.2500 / $15.0000 | Buy Now | |
|
|
Quest Components | 5 |
|
$9.9447 / $13.5609 | Buy Now | |
|
|
Rochester Electronics | SN74LS652 Octal bus transceivers and registers RoHS: Compliant Status: Active Min Qty: 1 | 13212 |
|
$4.8200 / $6.0200 | Buy Now |
|
DISTI #
SN74LS652DW
|
TME | IC: digital, bus transceiver,register, Ch: 8, SMD, SO24, 74LS Min Qty: 1 | 0 |
|
$6.8100 / $11.3000 | RFQ |
Part Details for SN74LS652DW
SN74LS652DW CAD Models
SN74LS652DW Part Data Attributes
|
|
SN74LS652DW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
SN74LS652DW
Texas Instruments
Octal bus transceivers and registers 24-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA | |
| Control Type | INDEPENDENT CONTROL | |
| Count Direction | BIDIRECTIONAL | |
| Family | LS | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 15.4 mm | |
| Load Capacitance (CL) | 45 pF | |
| Logic IC Type | REGISTERED BUS TRANSCEIVER | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 8 | |
| Number of Ports | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP24,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 180 mA | |
| Prop. Delay@Nom-Sup | 20 ns | |
| Propagation Delay (tpd) | 36 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | TTL | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 7.5 mm |
