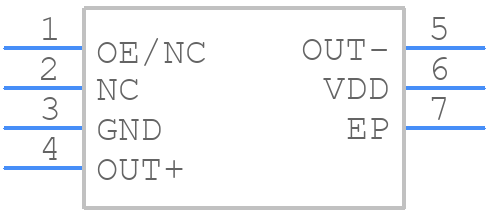

Part Symbol
-
Footprint
-

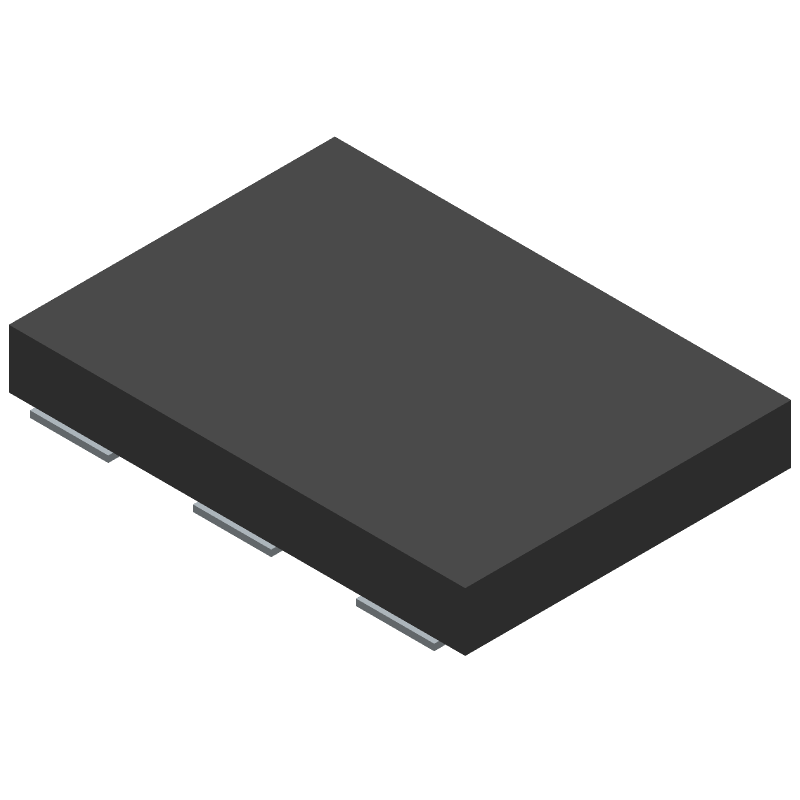

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT9346AE-1E3A33E125.000000 by SiTime Corporation
Results Overview of SIT9346AE-1E3A33E125.000000 by SiTime Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Electronic Manufacturing
Telecommunications
Automotive
SIT9346AE-1E3A33E125.000000 Information
SIT9346AE-1E3A33E125.000000 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for SIT9346AE-1E3A33E125.000000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SIT9346AE-1E3A33E125.000000
|
SiTime Corporation | 1 to 220 MHz, Ultra-low Jitter, ±10 to ±50 ppm Differential Oscillator Package Multiple: 1 | 49 |
|
$58.3000 / $83.2900 | Buy Now |
Part Details for SIT9346AE-1E3A33E125.000000
SIT9346AE-1E3A33E125.000000 CAD Models
SIT9346AE-1E3A33E125.000000 Part Data Attributes
|
|
SIT9346AE-1E3A33E125.000000
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT9346AE-1E3A33E125.000000
SiTime Corporation
LVPECL Output Clock Oscillator, 125MHz Nom,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SITIME CORP | |
| Package Description | PQFV, 6 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | SiTime | |
| Additional Feature | ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT | |
| Fall Time-Max | 0.29 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 50% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Frequency-Nom | 125 MHz | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVPECL | |
| Output Load | 50 OHM | |
| Package Equivalence Code | DILCC6,.2 | |
| Physical Dimension | 7.0mm x 5.0mm x 0.9 | |
| Rise Time-Max | 0.29 ns | |
| Screening Level | MIL-PRF-55310; MIL-STD-883F | |
| Supply Current-Max | 89 mA | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
Alternate Parts for SIT9346AE-1E3A33E125.000000
This table gives cross-reference parts and alternative options found for SIT9346AE-1E3A33E125.000000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SIT9346AE-1E3A33E125.000000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
