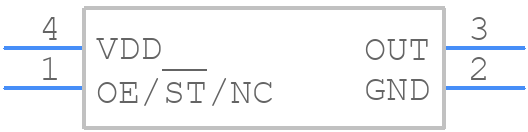

Part Symbol
-

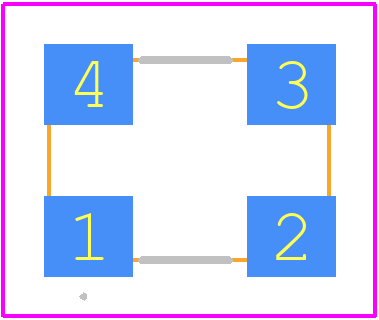

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT8924BAB83-XXN-100.000000 by SiTime Corporation
Results Overview of SIT8924BAB83-XXN-100.000000 by SiTime Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
SIT8924BAB83-XXN-100.000000 Information
SIT8924BAB83-XXN-100.000000 by SiTime Corporation is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for SIT8924BAB83-XXN-100.000000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1473-SIT8924BAB83-XXN-100.000000-ND
|
DigiKey | MEMS OSC XO 100.0000MHZ LVCMOS Min Qty: 1 Lead time: 26 Weeks Container: Strip |
50 In Stock |
|
$2.7125 / $4.3700 | Buy Now |
|
DISTI #
SiT8924BAB83-XXN-100.000000
|
SiTime Corporation | 1 to 110 MHz, Wide Temperature AEC-Q100 Oscillator (-55 to +125°C) Package Multiple: 1 | 0 |
|
$5.2510 / $13.1270 | Buy Now |
Part Details for SIT8924BAB83-XXN-100.000000
SIT8924BAB83-XXN-100.000000 CAD Models
SIT8924BAB83-XXN-100.000000 Part Data Attributes
|
|
SIT8924BAB83-XXN-100.000000
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT8924BAB83-XXN-100.000000
SiTime Corporation
1 to 110 MHz, Wide Temperature AEC-Q100 Oscillator (-55 to +125°C)
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SITIME CORP | |
| Package Description | PQFN, 4 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | SiTime | |
| Additional Feature | ALSO COMPATIBLE WITH LVTTL O/P | |
| Fall Time-Max | 3 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 50% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 100 MHz | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVCMOS | |
| Output Load | 15 pF | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | DILCC4,.2,200 | |
| Physical Dimension | 7mm x 5mm x 1mm | |
| Rise Time-Max | 3 ns | |
| Screening Level | AEC-Q100 | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.25 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | NICKEL PALLADIUM GOLD |
