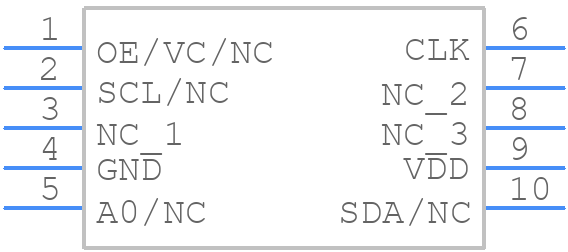

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SIT5357AE-FQ-33VT-100.412500 by SiTime Corporation
Results Overview of SIT5357AE-FQ-33VT-100.412500 by SiTime Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
SIT5357AE-FQ-33VT-100.412500 Information
SIT5357AE-FQ-33VT-100.412500 by SiTime Corporation is a TCVCXO.
TCVCXO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for SIT5357AE-FQ-33VT-100.412500
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SiT5357AE-FQ-33VT-100.412500
|
SiTime Corporation | 60 to 220 MHz, Stratum 3 Super-TCXO Package Multiple: 1 | 1542 |
|
$47.9900 / $86.1840 | Buy Now |
Part Details for SIT5357AE-FQ-33VT-100.412500
SIT5357AE-FQ-33VT-100.412500 CAD Models
SIT5357AE-FQ-33VT-100.412500 Part Data Attributes
|
|
SIT5357AE-FQ-33VT-100.412500
SiTime Corporation
Buy Now
Datasheet
|
Compare Parts:
SIT5357AE-FQ-33VT-100.412500
SiTime Corporation
60 to 220 MHz, Stratum 3 Super-TCXO
|
| Part Life Cycle Code | Active | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | SiTime | |
| Aging | 0.23 PPM/YEAR | |
| Control Voltage-Max | 2.97 V | |
| Control Voltage-Min | 0.33 V | |
| Fall Time-Max | 1.9 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Deviation/Pullability | 6.25 ppm | |
| Frequency Stability | 0.1% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 10 | |
| Operating Frequency-Nom | 100.4125 MHz | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVCMOS | |
| Output Load | 15 pF | |
| Package Body Material | CERAMIC | |
| Package Equivalence Code | LCC10,.12X.2,53/47/43 | |
| Physical Dimension | 5.15mm x 3.35mm x 1.06mm | |
| Rise Time-Max | 1.9 ns | |
| Supply Current-Max | 66 mA | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | Gold (Au) - with Nickel (Ni) barrier |
