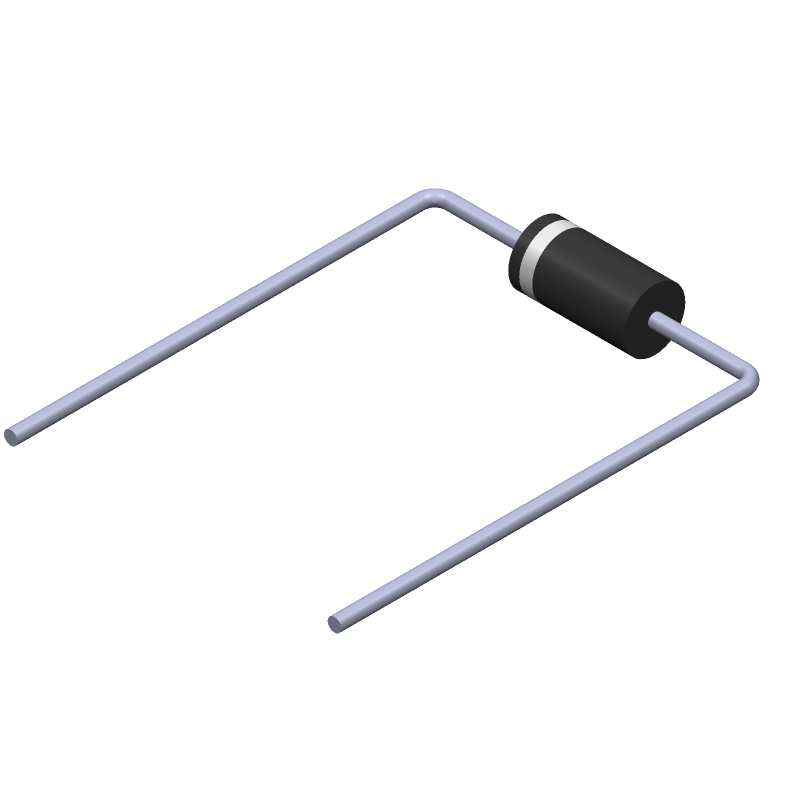

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SAC5.0 by Littelfuse Inc
Results Overview of SAC5.0 by Littelfuse Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
SAC5.0 Information
SAC5.0 by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SAC5.0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
27AK1499
|
Newark | Tvs Diode, 500W, 5V, Unidir, Do-15, Product Range:Sac Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:5V, Clamping Voltage Max:13.2V, Diode Case Style:Do-15 (Do-204Ac), No. Of Pins:2Pins, Minimum Breakdown Voltage:7.6V Rohs Compliant: Yes |Littelfuse SAC5.0 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3818 |
|
$0.1670 | Buy Now |
|
DISTI #
32M3529
|
Newark | Tvs Diode Low Cap P6Ke Tr/ Tr Rohs Compliant: Yes |Littelfuse SAC5.0 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1980 / $0.2640 | Buy Now |
|
DISTI #
SAC5.0CT-ND
|
DigiKey | TVS DIODE 5VWM 10VC DO204AC Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
1023 In Stock |
|
$0.1875 / $0.5700 | Buy Now |
|
DISTI #
576-SAC5.0
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes TVS Diode Low Cap P6KE RoHS: Compliant | 2975 |
|
$0.1870 / $0.5700 | Buy Now |
|
DISTI #
85534939
|
Verical | TVS Diode Single Uni-Dir 5V 500W 2-Pin DO-15 T/R Min Qty: 300 Package Multiple: 1 | Americas - 3818 |
|
$0.2822 / $0.3381 | Buy Now |
|
|
Bristol Electronics | Min Qty: 7 | 152 |
|
$0.2250 / $0.7500 | Buy Now |
|
|
Quest Components | TRANSIENT SUPPRESSOR DIODE,SINGLE,UNIDIRECTIONAL,5V V(RWM),DO-15 (Also Known As: SAC5.0-13) | 121 |
|
$0.3000 / $1.0000 | Buy Now |
|
|
Quest Components | TRANSIENT SUPPRESSOR DIODE,SINGLE,UNIDIRECTIONAL,5V V(RWM),DO-15 | 121 |
|
$0.3000 / $1.0000 | Buy Now |
|
DISTI #
SAC5.0
|
TTI | ESD Protection Diodes / TVS Diodes TVS Diode Low Cap P6KE RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Container: Reel | Americas - 0 |
|
$0.2500 | Buy Now |
|
DISTI #
SAC5.0
|
IBS Electronics | DO-204AC DO-15AXIAL SAC 1 THROUGH HOLE ZENER TVS DIODE 55.5V 44A 500W 50PF Min Qty: 4000 Package Multiple: 1 | 0 |
|
$0.1781 / $0.1846 | Buy Now |
Part Details for SAC5.0
SAC5.0 CAD Models
SAC5.0 Part Data Attributes
|
|
SAC5.0
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
SAC5.0
Littelfuse Inc
Trans Voltage Suppressor Diode, 500W, 5V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AC, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, DO-15, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Part Package Code | DO-15 | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Breakdown Voltage-Max | 8.3 V | |
| Breakdown Voltage-Min | 7.6 V | |
| Breakdown Voltage-Nom | 7.95 V | |
| Case Connection | ISOLATED | |
| Clamping Voltage-Max | 13.2 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-204AC | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 3 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-4; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Reverse Current-Max | 300 µA | |
| Reverse Test Voltage | 5 V | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
