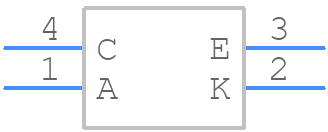

Part Symbol
-

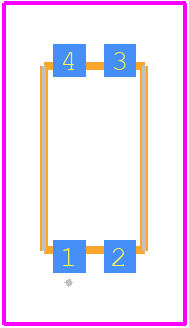

Footprint
-

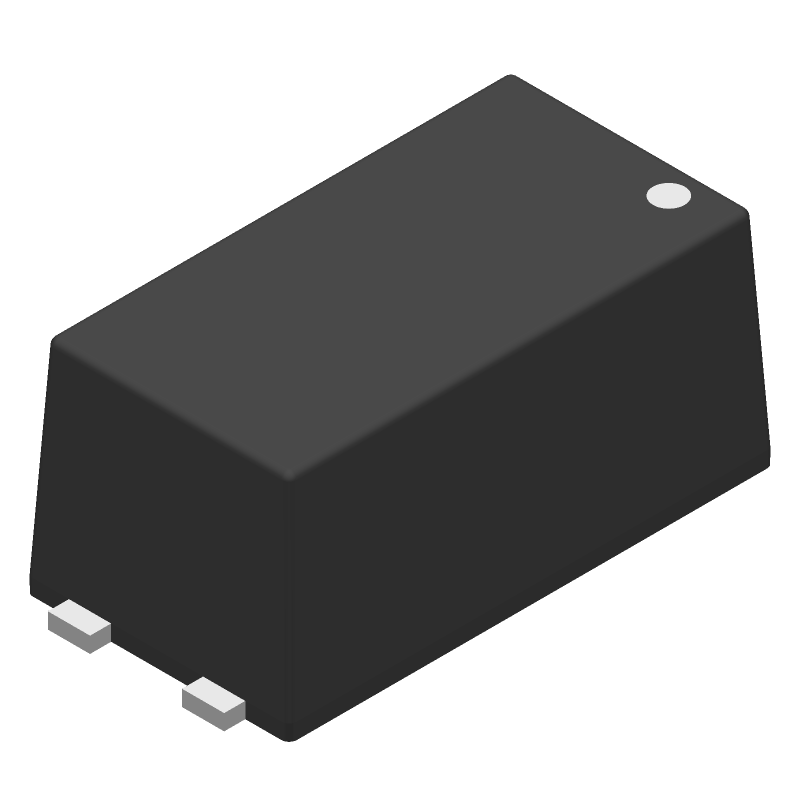

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PS2911-1-F3-AX by Renesas Electronics Corporation
Results Overview of PS2911-1-F3-AX by Renesas Electronics Corporation
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PS2911-1-F3-AX Information
PS2911-1-F3-AX by Renesas Electronics Corporation is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for PS2911-1-F3-AX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
23AH3387
|
Newark | Optocoupler, Transistor, 2.5Kv, Sop-4, No. Of Channels:1 Channel, Optocoupler Case Style:Sop, No. Of Pins:4Pins, Forward Current If Max:50Ma, Isolation Voltage:2.5Kv, Ctr Min:100%, Collector Emitter Voltage V(Br)Ceo:40V Rohs Compliant: Yes |Renesas PS2911-1-F3-AX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 5982 |
|
$0.8550 / $1.6900 | Buy Now |
|
DISTI #
559-1060-1-ND
|
DigiKey | OPTOISO 2.5KV TRANS 4-MINI-FLAT Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
1865 In Stock |
|
$0.7973 / $2.0400 | Buy Now |
|
DISTI #
PS2911-1-F3-AX
|
Avnet Americas | Optocoupler Single Transistor Output 2.5kVrms 4-Pin Ultra Small Flat Emboss T/R - Tape and Reel (Alt: PS2911-1-F3-AX) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 18 Weeks, 0 Days Container: Reel | 3500 |
|
$1.1440 | Buy Now |
|
DISTI #
968-PS2911-1-F3-AX
|
Mouser Electronics | Transistor Output Optocouplers OPTOCOUPLER 4-PIN SSOP RoHS: Compliant | 132483 |
|
$0.8450 / $2.0400 | Buy Now |
|
DISTI #
84982381
|
Verical | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Ultra Small Flat T/R RoHS: Compliant Min Qty: 60 Package Multiple: 1 Date Code: 2429 | Americas - 5756 |
|
$0.7170 / $1.0700 | Buy Now |
|
DISTI #
PS2911-1-F3-AX
|
TME | Optocoupler, SMD, Ch: 1, OUT: transistor, Uinsul: 2.5kV, Uce: 40V Min Qty: 1 | 0 |
|
$0.7200 / $1.8500 | RFQ |
|
DISTI #
PS2911-1-F3-AX
|
IBS Electronics | OPTOCOUPLER SINGLE TRANSISTOR OUTPUT 2.5KVRMS 4-PIN ULTRA SMALL FLAT EMBOSS T/R Min Qty: 3500 Package Multiple: 1 | 0 |
|
$0.8645 | Buy Now |
|
DISTI #
SMC-PS2911-1-F3-AX
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 2043 |
|
RFQ | |
|
DISTI #
PS2911-1-F3-AX
|
Avnet Asia | Optocoupler Single Transistor Output 2.5kVrms 4-Pin Ultra Small Flat Emboss T/R (Alt: PS2911-1-F3-AX) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
PS2911-1-F3-AX
|
Avnet Silica | Optocoupler Single Transistor Output 25kVrms 4Pin Ultra Small Flat Emboss TR (Alt: PS2911-1-F3-AX) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for PS2911-1-F3-AX
PS2911-1-F3-AX CAD Models
PS2911-1-F3-AX Part Data Attributes
|
|
PS2911-1-F3-AX
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
PS2911-1-F3-AX
Renesas Electronics Corporation
High CTR, 4-Pin Ultra Small Package Flat-lead Photocoupler, , /
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Package Description | 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL PACKAGE-4 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Additional Feature | UL RECOGNIZED | |
| Coll-Emtr Bkdn Voltage-Min | 40 V | |
| Configuration | SINGLE | |
| Current Transfer Ratio-Min | 100% | |
| Current Transfer Ratio-Nom | 100% | |
| Dark Current-Max | 100 nA | |
| Forward Current-Max | 0.05 A | |
| Forward Voltage-Max | 1.3 V | |
| Isolation Voltage-Max | 2500 V | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| On-State Current-Max | 0.04 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER | |
| Packing Method | TR, EMBOSSED, 13 INCH | |
| Power Dissipation-Max | 0.12 W | |
| Surface Mount | YES | |
| Terminal Finish | NICKEL PALLADIUM GOLD |
PS2911-1-F3-AX Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
-
Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, follow the recommended thermal design guidelines in the datasheet.
-
Power up the device in the following sequence: VCC, AVCC, and then DVCC. Ensure that the power supplies are stable and within the recommended voltage range before applying the input signals.
-
Connect the analog ground (AGND) to the digital ground (DGND) at a single point, preferably near the power supply. Keep the analog and digital grounds separate on the PCB to minimize noise coupling.
-
The maximum allowable capacitance is 10uF. However, it's recommended to use 0.1uF to 1uF ceramic capacitors for optimal performance and noise reduction.
