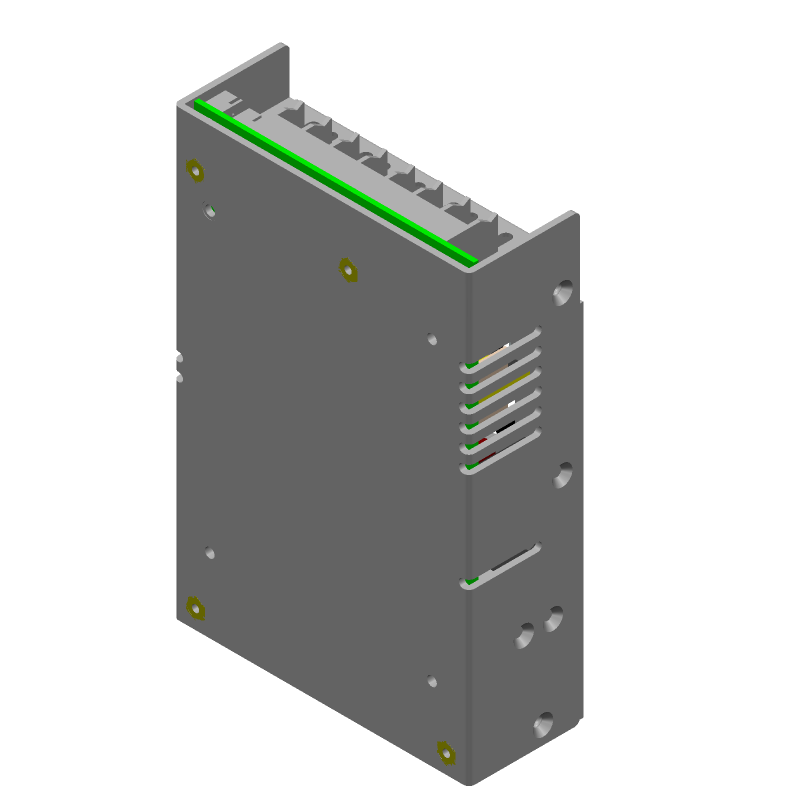

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCM-400-12-CF by CUI Inc
Results Overview of PCM-400-12-CF by CUI Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Energy and Power Systems
Renewable Energy
Telecommunications
Automotive
Robotics and Drones
PCM-400-12-CF Information
PCM-400-12-CF by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PCM-400-12-CF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
PCM-400-12-CF-ND
|
DigiKey | AC/DC CONVERTER 12V 400W Min Qty: 120 Lead time: 31 Weeks Container: Box | Temporarily Out of Stock |
|
$242.7928 | Buy Now |
|
DISTI #
490-PCM-400-12-CF
|
Mouser Electronics | Switching Power Supplies 400W 12V metal case w/top fan RoHS: Compliant | 0 |
|
$235.9200 | Order Now |
|
|
Onlinecomponents.com | AC/DC Power Supply - 1 Output - Enclosed - 12V@33.33 A - 400W -W/Fan RoHS: Compliant | 0 |
|
$219.3500 / $643.7800 | Buy Now |
|
DISTI #
000000000006360056
|
Sager | Switching Power Supplies 400W 12V metal case w/top fan Min Qty: 1 | 0 |
|
$230.7500 / $266.2500 | Buy Now |
Part Details for PCM-400-12-CF
PCM-400-12-CF CAD Models
PCM-400-12-CF Part Data Attributes
|
|
PCM-400-12-CF
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PCM-400-12-CF
CUI Inc
Chassis Mount Power Supply, 12 Vdc, 33.33 A, 400 W
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Package Description | PACKAGE | |
| Reach Compliance Code | not_compliant | |
| Samacsys Manufacturer | CUI Inc. | |
| Additional Feature | REMOTE SHUTDOWN | |
| Analog IC - Other Type | AC-DC POWER FACTOR CORRECTION MODULE | |
| Approvals | CB, CE, TUV, UL | |
| Efficiency (Main Output) | 85% | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 90 V | |
| Input Voltage-Nom | 115 V | |
| JESD-30 Code | R-XXMA-X | |
| Length | 152.4 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 33.33 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | XMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL | |
| Ripple Voltage (Main Out) | 0.04242 Vrms | |
| Seated Height-Max | 54.75 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UNSPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 400 W | |
| Trim/Adjustable Output | NO | |
| Warm-up Time | 1.5 s | |
| Width | 101.6 mm |
