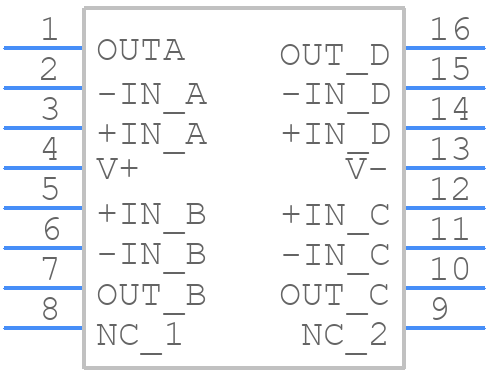

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for OP400GSZ-REEL by Analog Devices Inc
Results Overview of OP400GSZ-REEL by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
OP400GSZ-REEL Information
OP400GSZ-REEL by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMX2325TMX-G | Rochester Electronics LLC | LMX2325 - RoHS - T/R, PLL Freq Synthesizer | |
| HSCHD02CR2001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Brown housing | |
| HSCHD02BR1001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Blue housing |
Price & Stock for OP400GSZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK8866
|
Newark | Op-Amp, 500Khz, 0 To 70Deg C, Wsoic-16, No. Of Channels:4Channels, Gain Bandwidth Product:500Khz, Supply Voltage Range:± 3V To ± 18V, Ic Case/Package:Wsoic, No. Of Pins:16Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Analog Devices OP400GSZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 769 |
|
$8.9100 | Buy Now |
|
DISTI #
OP400GSZ-REELCT-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 16SOIC Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2047 In Stock |
|
$9.3125 / $17.0600 | Buy Now |
|
DISTI #
584-OP400GSZ-R
|
Mouser Electronics | Operational Amplifiers - Op Amps SO-16 WITH TAPE & REEL RoHS: Compliant | 2699 |
|
$9.6600 / $16.0500 | Buy Now |
|
DISTI #
V72:2272_06228383
|
Arrow Electronics | Op Amp Quad Low Power Amplifier ±20V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2431 Container: Cut Strips | Americas - 36 |
|
$10.0000 / $14.0620 | Buy Now |
|
|
Analog Devices Inc | SO-16 WITH TAPE & REEL Min Qty: 1000 Package Multiple: 1000 | 1000 |
|
$9.3125 / $17.0600 | Buy Now |
|
DISTI #
84386256
|
Verical | Op Amp Quad Low Power Amplifier ±20V 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2431 | Americas - 36 |
|
$10.0000 / $14.0620 | Buy Now |
|
DISTI #
OP400GSZ-REEL
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 1000 | 0 |
|
$9.7400 | Buy Now |
|
|
LCSC | QUAD 3nA 0.15V/us 220uV SOIC-16-300mil Operational Amplifier ROHS | 187 |
|
$7.0562 / $10.4875 | Buy Now |
|
|
Vyrian | Amplifiers | 1100 |
|
RFQ | |
|
|
Win Source Electronics | Quad Low Offset, Low Power Operational Amplifier | 4530 |
|
$7.5000 / $9.6875 | Buy Now |
Part Details for OP400GSZ-REEL
OP400GSZ-REEL CAD Models
OP400GSZ-REEL Part Data Attributes
|
|
OP400GSZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
OP400GSZ-REEL
Analog Devices Inc
Low Offset, Low Power Quad Op Amp
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-013AA, SOIC-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.012 µA | |
| Bias Current-Max (IIB) @25C | 0.007 µA | |
| Common-mode Reject Ratio-Min | 105 dB | |
| Common-mode Reject Ratio-Nom | 130 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 400000 µV | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Low-Offset | YES | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -20 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Slew Rate-Min | 0.1 V/us | |
| Slew Rate-Nom | 0.15 V/us | |
| Supply Current-Max | 3.1 mA | |
| Supply Voltage Limit-Max | 20 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 500 | |
| Voltage Gain-Min | 1000000 | |
| Width | 7.5 mm |
Alternate Parts for OP400GSZ-REEL
This table gives cross-reference parts and alternative options found for OP400GSZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OP400GSZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OP400GSZ | Analog Devices Inc | $13.5632 | Low Offset, Low Power Quad Op Amp | OP400GSZ-REEL vs OP400GSZ |
| OP400GS | Analog Devices Inc | Check for Price | Low Offset, Low Power Quad Op Amp | OP400GSZ-REEL vs OP400GS |
| OP400GSZ | Rochester Electronics LLC | Check for Price | QUAD OP-AMP, 400000uV OFFSET-MAX, 0.5MHz BAND WIDTH, PDSO16, ROHS COMPLIANT, MS-013AA, SOIC-16 | OP400GSZ-REEL vs OP400GSZ |
| OP400GS-REEL | Analog Devices Inc | Check for Price | Low Offset, Low Power Quad Op Amp | OP400GSZ-REEL vs OP400GS-REEL |
OP400GSZ-REEL Frequently Asked Questions (FAQ)
-
A good PCB layout for OP400GSZ-REEL involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure stability, ensure that the gain and phase margins are sufficient, and the output impedance is matched to the load. Also, use a compensation capacitor (if required) and ensure that the device is operated within its recommended operating conditions.
-
The maximum power dissipation of OP400GSZ-REEL is 1.4W. However, this can be limited by the thermal resistance of the package and the ambient temperature. Ensure that the device is properly heat-sinked and operated within the recommended temperature range.
-
While OP400GSZ-REEL is rated for operation up to 125°C, its performance may degrade at high temperatures. Ensure that the device is operated within its recommended temperature range, and consider using thermal management techniques to keep the device within a safe operating temperature.
-
Handle OP400GSZ-REEL with anti-static precautions, such as using an anti-static wrist strap or mat. Ensure that the device is stored in an anti-static bag or tube, and avoid touching the pins or leads during handling.
