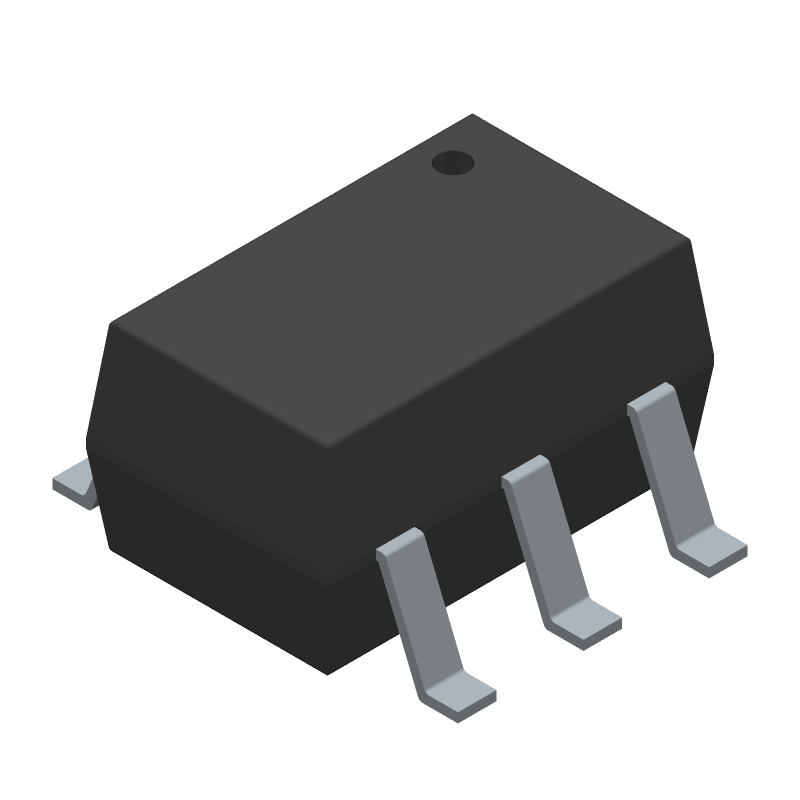

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for NLV27WZ17DFT2G by onsemi
Results Overview of NLV27WZ17DFT2G by onsemi
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
NLV27WZ17DFT2G Information
NLV27WZ17DFT2G by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for NLV27WZ17DFT2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51Y0552
|
Newark | Log Dual Non-Invrt Schmit/Reel |Onsemi NLV27WZ17DFT2G RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1740 / $0.2230 | Buy Now |
|
DISTI #
87893151
|
Verical | Schmitt Trigger Buffer 2-CH Non-Inverting Push-Pull CMOS 6-Pin SC-88 T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 170 Package Multiple: 1 Date Code: 2302 | Americas - 4614 |
|
$0.2360 / $0.8190 | Buy Now |
|
DISTI #
88058965
|
Verical | Schmitt Trigger Buffer 2-CH Non-Inverting Push-Pull CMOS 6-Pin SC-88 T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 1413 Package Multiple: 1 Date Code: 2201 | Americas - 2952 |
|
$0.2655 | Buy Now |
|
|
Bristol Electronics | 12000 |
|
RFQ | ||
|
|
Quest Components | BUFFER, LVC/LCX/Z SERIES, 2-FUNC, 1-INPUT, CMOS | 9600 |
|
$0.1778 / $0.5925 | Buy Now |
|
|
Rochester Electronics | NL27WZ17 - Dual Non-Inverting Buffer withSchmitt Trigger Input Automotive Device RoHS: Compliant Status: Active Min Qty: 1 | 2952 |
|
$0.1317 / $0.2124 | Buy Now |
|
|
ComSIT USA | DUAL NON-INVERTING SCHMITT TRIGGER BUFFER Buffer, 27WZ Series, 2-Func, 1-Input, CMOS, PDSO6 RoHS: Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 17846 |
|
RFQ | |
|
DISTI #
NLV27WZ17DFT2G
|
Avnet Silica | Schmitt Trigger Buffer Non Inverting Dual 1 Input 6 Pins SC88 (Alt: NLV27WZ17DFT2G) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
NLV27WZ17DFT2G
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 4614 |
|
$0.1470 / $0.8190 | Buy Now |
Part Details for NLV27WZ17DFT2G
NLV27WZ17DFT2G CAD Models
NLV27WZ17DFT2G Part Data Attributes
|
|
NLV27WZ17DFT2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NLV27WZ17DFT2G
onsemi
Dual Non-Inverting Buffer withSchmitt Trigger Input Automotive Device, SC-88/SC70-6/SOT-363 6 LEAD, 3000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88/SC70-6/SOT-363 6 LEAD | |
| Package Description | SOT-363, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | 419B-02 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | onsemi | |
| Family | 27WZ | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUFFER | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Inputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 100 mA | |
| Prop. Delay@Nom-Sup | 9.5 ns | |
| Propagation Delay (tpd) | 15.6 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
