MC56F84550VLF Information

MC56F84550VLF by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MC56F84550VLF

Part # Distributor Description Stock Price Buy
DISTI # 53W5629
Newark 32-Bit Dsc, 56800Ex Core, 96Kb Flash, 80Mhz, Qfp 48/ Tray Rohs Compliant: Yes |Nxp MC56F84550VLF RoHS: Compliant Min Qty: 1250 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $5.9600
$5.9600 Buy Now
DISTI # 2832-MC56F84550VLF-ND
DigiKey IC MCU 32BIT 96KB FLASH 48LQFP Min Qty: 60 Lead time: 13 Weeks Container: Tray MARKETPLACE PRODUCT 1212
In Stock
  • 60 $8.3800
$8.3800 Buy Now
DISTI # 568-14286-ND
DigiKey IC MCU 32BIT 96KB FLASH 48LQFP Min Qty: 60 Lead time: 13 Weeks Container: Tray Temporarily Out of Stock
  • 1,250 $5.9660
$5.9660 Buy Now
DISTI # MC56F84550VLF
Avnet Americas MCU 32-Bit MC56F845xx 56800 EX CISC 96KB Flash 3.3V 48-Pin LQFP Tray - Trays (Alt: MC56F84550VLF) RoHS: Compliant Min Qty: 80 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Tray 1212 Partner Stock
  • 80 $8.4152
  • 90 $8.1012
  • 170 $7.7872
  • 400 $7.4732
  • 800 $7.1592
$7.1592 / $8.4152 Buy Now
DISTI # MC56F84550VLF
Avnet Americas MCU 32-Bit MC56F845xx 56800 EX CISC 96KB Flash 3.3V 48-Pin LQFP Tray - Trays (Alt: MC56F84550VLF) RoHS: Compliant Min Qty: 1250 Package Multiple: 1250 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 1,250 $5.8719
  • 2,500 $5.6528
  • 5,000 $5.4337
  • 7,500 $5.2146
  • 10,000 $4.9955
$4.9955 / $5.8719 Buy Now
DISTI # 841-MC56F84550VLF
Mouser Electronics Digital Signal Processors & Controllers - DSP, DSC 32bit,64k Flash 2kB FlexMemory RoHS: Compliant 0
  • 1 $12.0500
  • 10 $9.5200
  • 25 $9.0800
  • 100 $8.2900
  • 250 $7.0400
  • 500 $6.5200
  • 1,000 $5.9600
$5.9600 / $12.0500 Order Now
Rochester Electronics MC56F84553 - 32-bit DSC, 56800EX core, 96KB Flash, 80MHz RoHS: Compliant Status: Active Min Qty: 1 12
  • 25 $5.7700
  • 100 $5.4800
  • 500 $5.1900
  • 1,000 $4.9000
  • 10,000 $4.6200
$4.6200 / $5.7700 Buy Now
NXP Semiconductors 32-bit DSC, 56800EX core, 96KB Flash, 80MHz, QFP 48, Tray, Bakeable, Multiple in Drypack RoHS: Compliant pbFree: Yes Lead time: 13 Weeks, 0 Days Container: Tray 1145
  • 1 $5.7000
  • 26 $5.2600
  • 100 $4.8200
$4.8200 / $5.7000 Buy Now
DISTI # MC56F84550VLF
Avnet Silica MCU 32Bit MC56F845xx 56800 EX CISC 96KB Flash 33V 48Pin LQFP Tray (Alt: MC56F84550VLF) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 15 Weeks, 0 Days Silica - 750
Buy Now
DISTI # MC56F84550VLF
EBV Elektronik MCU 32Bit MC56F845xx 56800 EX CISC 96KB Flash 33V 48Pin LQFP Tray (Alt: MC56F84550VLF) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 15 Weeks, 0 Days EBV - 750
Buy Now
Flip Electronics Stock, ship today 6212
RFQ

Part Details for MC56F84550VLF

MC56F84550VLF CAD Models

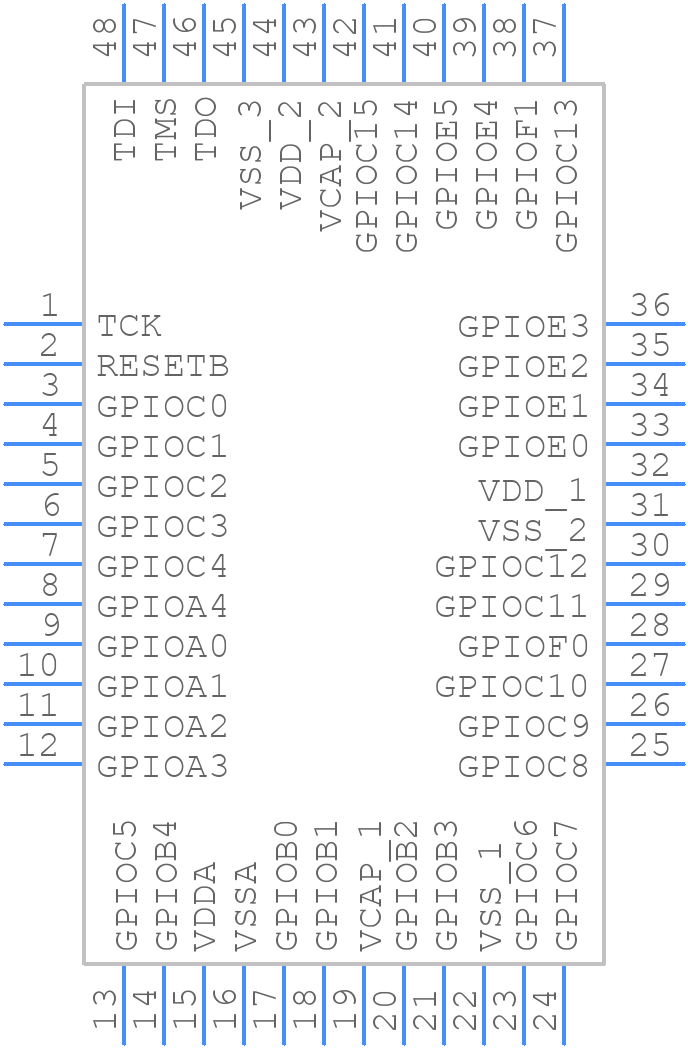

  • Part Symbol

    Part Symbol

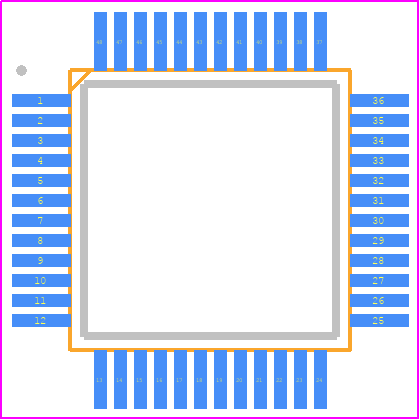

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC56F84550VLF Part Data Attributes

Parametric Data
MC56F84550VLF NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MC56F84550VLF NXP Semiconductors MICROCONTROLLER
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Package Description LQFP-48
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer NXP
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family 56800E
Clock Frequency-Max 16 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G48
JESD-609 Code e3
Length 7 mm
Moisture Sensitivity Level 3
Number of I/O Lines 34
Number of Terminals 48
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape SQUARE
Package Style FLATPACK
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 16384
ROM (words) 98304
ROM Programmability FLASH
Speed 80 MHz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER

MC56F84550VLF Related Parts

MC56F84550VLF Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the MC56F84550VLF is 56 MHz.

  • The MC56F84550VLF has 64 KB of flash memory.

  • The maximum current consumption of the MC56F84550VLF is 25 mA at 56 MHz.

  • Yes, the MC56F84550VLF has a 12-bit, 16-channel analog-to-digital converter (ADC).

  • Yes, the MC56F84550VLF has several low-power modes, including Stop, Wait, and Doze modes, to reduce power consumption.
