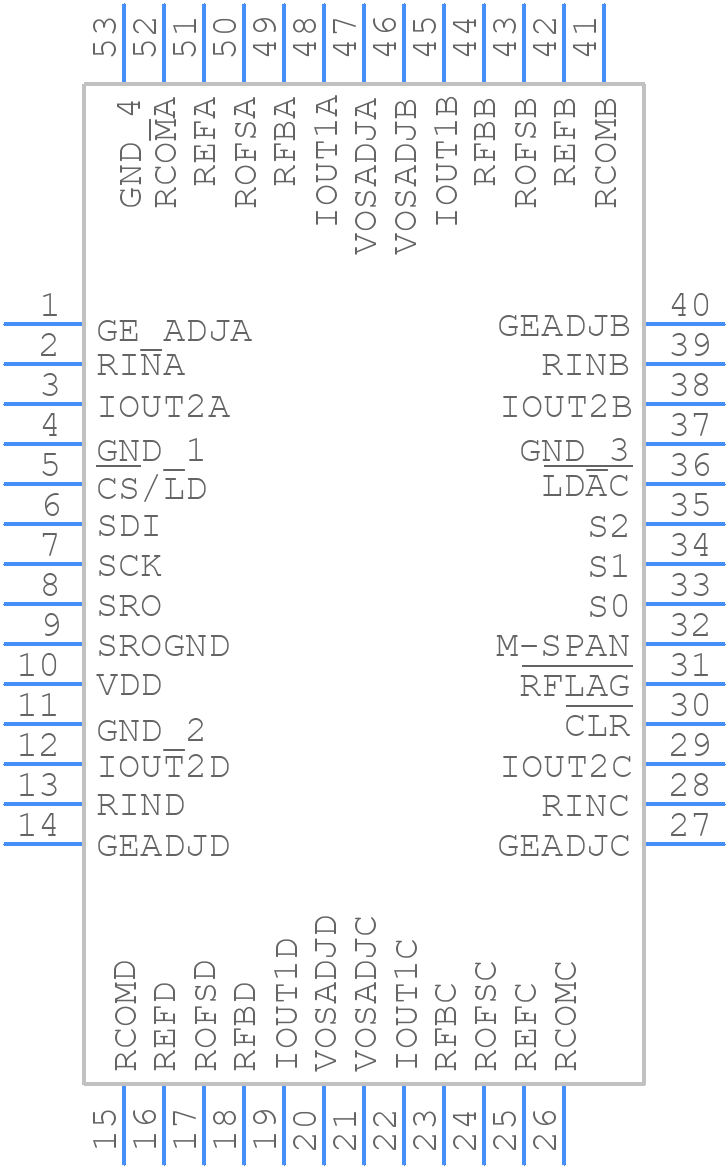

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC2754ACUKG-16#TRPBF by Analog Devices Inc
Results Overview of LTC2754ACUKG-16#TRPBF by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LTC2754ACUKG-16#TRPBF Information
LTC2754ACUKG-16#TRPBF by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for LTC2754ACUKG-16#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC2754ACUKG-16#TRPBF-ND
|
DigiKey | IC DAC 16BIT A-OUT 52QFN Min Qty: 2000 Lead time: 26 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$29.0750 | Buy Now |
|
DISTI #
584-C2754ACUKG-16TPF
|
Mouser Electronics | Digital to Analog Converters - DAC 4x 12-/16-B SoftSpan IOUT DACs RoHS: Compliant | 0 |
|
$29.0700 | Order Now |
|
|
Analog Devices Inc | 4x 12-/16-B SoftSpan IOUT DACs Min Qty: 2000 Package Multiple: 2000 | 0 |
|
$23.2600 / $33.1200 | Buy Now |
|
DISTI #
LTC2754ACUKG16T
|
Richardson RFPD | CONVERTER - DAC RoHS: Compliant Min Qty: 2000 | 0 |
|
$30.0300 / $31.2200 | Buy Now |
Part Details for LTC2754ACUKG-16#TRPBF
LTC2754ACUKG-16#TRPBF CAD Models
LTC2754ACUKG-16#TRPBF Part Data Attributes
|
|
LTC2754ACUKG-16#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC2754ACUKG-16#TRPBF
Analog Devices Inc
LTC2754ACUKG-16#TRPBF
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 7 X 8 MM, LEAD FREE, PLASTIC, QFN-52 | |
| Pin Count | 52 | |
| Manufacturer Package Code | 05-08-1729 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 10 V | |
| Analog Output Voltage-Min | -10 V | |
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PQCC-N52 | |
| JESD-609 Code | e3 | |
| Length | 8 mm | |
| Linearity Error-Max (EL) | 0.0015% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 52 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Settling Time-Nom (tstl) | 2 µs | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm |
Alternate Parts for LTC2754ACUKG-16#TRPBF
This table gives cross-reference parts and alternative options found for LTC2754ACUKG-16#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC2754ACUKG-16#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC2754ACUKG-16#TRPBF | Linear Technology | Check for Price | LTC2754-12 - Quad 12-/16-Bit SoftSpan IOUT DACs; Package: QFN; Pins: 52; Temperature Range: 0°C to 70°C | LTC2754ACUKG-16#TRPBF vs LTC2754ACUKG-16#TRPBF |
