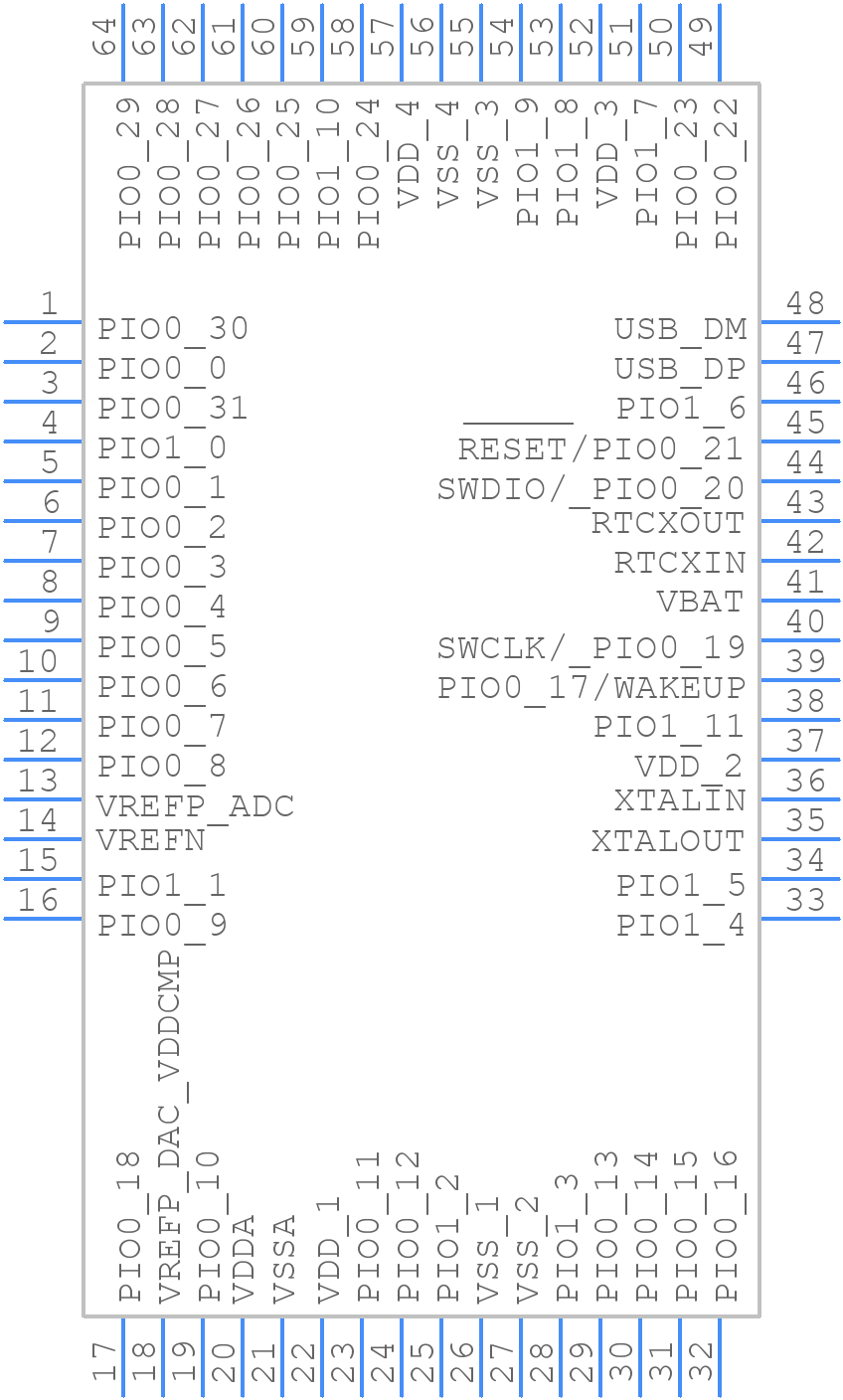

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LPC1549JBD64QL by NXP Semiconductors
Results Overview of LPC1549JBD64QL by NXP Semiconductors
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LPC1549JBD64QL Information
LPC1549JBD64QL by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for LPC1549JBD64QL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40X8114
|
Newark | 32 Bit Microcontroller, Arm Cortex-M3, 72 Mhz, 256 Kb, 36 Kb, 64, Lqfp Rohs Compliant: Yes |Nxp LPC1549JBD64QL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 850 |
|
$7.3600 / $8.4500 | Buy Now |
|
DISTI #
568-11350-ND
|
DigiKey | IC MCU 32BIT 256KB FLASH 64LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray |
2699 In Stock |
|
$6.1940 / $8.5300 | Buy Now |
|
DISTI #
LPC1549JBD64QL
|
Avnet Americas | - Trays (Alt: LPC1549JBD64QL) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$5.6487 / $6.6397 | Buy Now |
|
DISTI #
771-LPC1549JBD64QL
|
Mouser Electronics | ARM Microcontrollers - MCU Motion Control 32-bit Microcontroller based on ARM Cortex-M3 RoHS: Compliant | 2449 |
|
$6.1900 / $8.6200 | Buy Now |
|
DISTI #
85999382
|
Verical | MCU 32-bit ARM Cortex M3 RISC 256KB Flash 3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 47 Package Multiple: 1 Date Code: 2301 | Americas - 960 |
|
$6.5250 / $8.1500 | Buy Now |
|
DISTI #
85999891
|
Verical | MCU 32-bit ARM Cortex M3 RISC 256KB Flash 3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 47 Package Multiple: 1 Date Code: 2201 | Americas - 533 |
|
$6.5250 / $8.1500 | Buy Now |
|
DISTI #
85999174
|
Verical | MCU 32-bit ARM Cortex M3 RISC 256KB Flash 3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 47 Package Multiple: 1 | Americas - 370 |
|
$6.5250 / $8.1500 | Buy Now |
|
DISTI #
88070236
|
Verical | MCU 32-bit ARM Cortex M3 RISC 256KB Flash 3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2330 | Americas - 248 |
|
$5.0700 / $6.0400 | Buy Now |
|
|
Rochester Electronics | LPC1549 - Motion Control 32-bit ARM Cortex-M3 MCU RoHS: Compliant Status: Active Min Qty: 1 | 1863 |
|
$5.2200 / $6.5200 | Buy Now |
|
DISTI #
LPC1549JBD64QL
|
Avnet Silica | (Alt: LPC1549JBD64QL) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for LPC1549JBD64QL
LPC1549JBD64QL CAD Models
LPC1549JBD64QL Part Data Attributes
|
|
LPC1549JBD64QL
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
LPC1549JBD64QL
NXP Semiconductors
LPC1549JBD64 - Motion Control 32-bit Microcontroller based on ARM Cortex-M3 QFP 64-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | QFP | |
| Package Description | 10 X 10 MM, 1.40 MM HEIGHT, PLASTIC, MS-026, SOT314-2, LQFP-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | SOT314-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | CORTEX-M3 | |
| Clock Frequency-Max | 25 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of I/O Lines | 44 | |
| Number of Terminals | 64 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP64,.47SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 36864 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.4 mm | |
| Speed | 72 MHz | |
| Supply Voltage-Max | 3.3 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for LPC1549JBD64QL
This table gives cross-reference parts and alternative options found for LPC1549JBD64QL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LPC1549JBD64QL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LPC1549JBD64,151 | NXP Semiconductors | Check for Price | RISC Microcontroller, 32-Bit, FLASH, CMOS, PQFP64 | LPC1549JBD64QL vs LPC1549JBD64,151 |
LPC1549JBD64QL Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the LPC1549JBD64QL is 72 MHz.
-
The pin multiplexing on the LPC1549JBD64QL can be configured using the PINSEL registers. The PINSEL registers allow you to select the function of each pin, such as GPIO, UART, SPI, etc.
-
The maximum amount of current that can be sourced or sunk by the GPIO pins on the LPC1549JBD64QL is 4mA.
-
The ADC on the LPC1549JBD64QL can be used by configuring the ADC registers, such as the ADC Control Register (AD0CR) and the ADC Configuration Register (AD0CFG). You will also need to configure the pin multiplexing to select the ADC function for the desired pins.
-
The boot loader on the LPC1549JBD64QL is used to load the application code into the flash memory of the microcontroller. It can also be used to update the firmware of the device.
