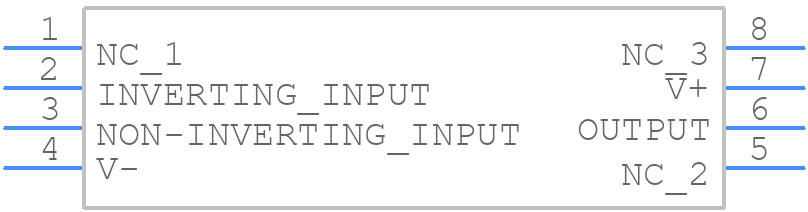

Part Symbol
-

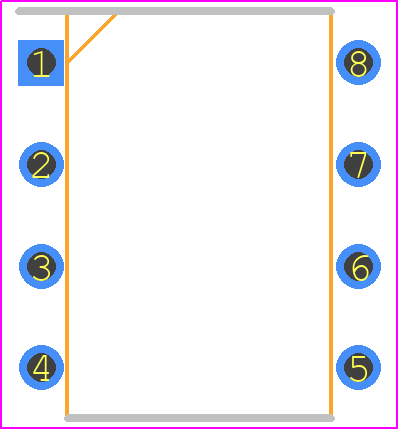

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LMC6001AIN by Texas Instruments
Results Overview of LMC6001AIN by Texas Instruments
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LMC6001AIN Information
LMC6001AIN by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Part Details for LMC6001AIN
LMC6001AIN CAD Models
LMC6001AIN Part Data Attributes
|
|
LMC6001AIN
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LMC6001AIN
Texas Instruments
OP-AMP, 700uV OFFSET-MAX, 1.3MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | PLASTIC, DIP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 2.5e-8 µA | |
| Bias Current-Max (IIB) @25C | 2.5e-8 µA | |
| Common-mode Reject Ratio-Nom | 83 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 700 µV | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e0 | |
| Length | 9.817 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -8 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Slew Rate-Min | 0.6 V/us | |
| Slew Rate-Nom | 1.5 V/us | |
| Supply Current-Max | 0.95 mA | |
| Supply Voltage Limit-Max | 8 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 1300 | |
| Voltage Gain-Min | 100000 | |
| Wideband | NO | |
| Width | 7.62 mm |
Alternate Parts for LMC6001AIN
This table gives cross-reference parts and alternative options found for LMC6001AIN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LMC6001AIN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LMC6001AIN/NOPB | Texas Instruments | $15.7623 | Ultra-Low Input Current Amplifier 8-PDIP -40 to 85 | LMC6001AIN vs LMC6001AIN/NOPB |
| LMC6001AMDC | Texas Instruments | Check for Price | OP-AMP, 1.3MHz BAND WIDTH, UUC, DIE | LMC6001AIN vs LMC6001AMDC |
LMC6001AIN Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
-
The LMC6001AIN datasheet provides a list of recommended external components, and the application note SLVAE04 provides guidance on selecting the correct values based on the specific application requirements.
-
The LMC6001AIN has an operating temperature range of -40°C to 125°C, and performance may degrade at higher temperatures. The datasheet provides temperature-related specifications and guidelines for thermal management.
-
Texas Instruments provides troubleshooting guides and application notes, such as SLVAE04, that provide guidance on identifying and resolving common issues with the LMC6001AIN.
-
The LMC6001AIN is qualified for automotive and high-reliability applications, and Texas Instruments provides relevant certifications and documentation, such as AEC-Q100 and ISO/TS 16949, upon request.
