LM7910CT Information
LM7910CT by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM7910CT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LM7910CT
|
EBV Elektronik | LDO Regulator Neg 10V 22A 3Pin3Tab TO220AB Rail (Alt: LM7910CT) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for LM7910CT

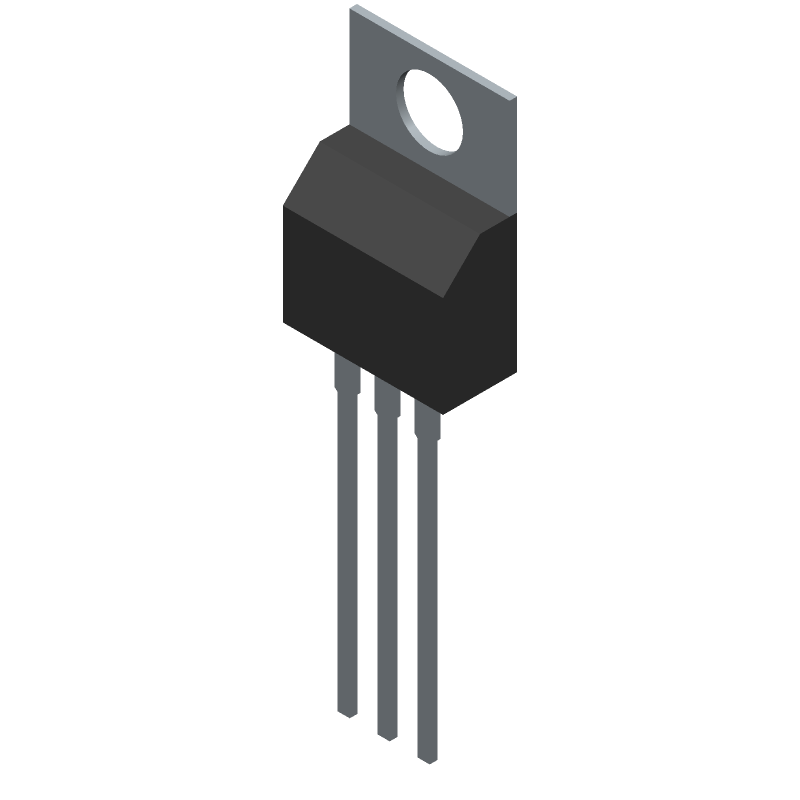

LM7910CT CAD Models
LM7910CT Part Data Attributes
|
|
LM7910CT
onsemi
Buy Now
Datasheet
|
Compare Parts:
LM7910CT
onsemi
3-Terminal 1 A Negative Voltage Regulator, 1000-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Package Description | TO-220AB, 3 PIN | |
| Manufacturer Package Code | 340AT | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 2 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 28 V | |
| Input Voltage-Min | 12.5 V | |
| JESD-30 Code | R-XSFM-T3 | |
| JESD-609 Code | e3 | |
| Line Regulation-Max | 0.2% | |
| Load Regulation-Max | 0.2% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 10.5 V | |
| Output Voltage1-Min | 9.5 V | |
| Output Voltage1-Nom | 10 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SFM | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 5% |
Alternate Parts for LM7910CT
This table gives cross-reference parts and alternative options found for LM7910CT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM7910CT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM7910CT | Fairchild Semiconductor Corporation | Check for Price | Fixed Negative Standard Regulator, 10V, BIPolar, TO-220AB, 3 PIN | LM7910CT vs LM7910CT |
LM7910CT Frequently Asked Questions (FAQ)
-
The LM7910CT can handle input voltages up to 35V, but it's recommended to keep it below 30V for reliable operation.
-
To ensure a stable output voltage, make sure to use a suitable input capacitor (e.g., 10uF) and output capacitor (e.g., 10uF) as close to the device as possible, and keep the input voltage at least 2V above the desired output voltage.
-
The minimum input voltage required for the LM7910CT to function is around 10V, but it's recommended to keep it above 12V for reliable operation.
-
The LM7910CT is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to use a heat sink or ensure good airflow to keep the device temperature below 100°C.
-
To protect the LM7910CT from input voltage transients, use a transient voltage suppressor (TVS) diode or a voltage clamp circuit at the input to limit voltage spikes.
