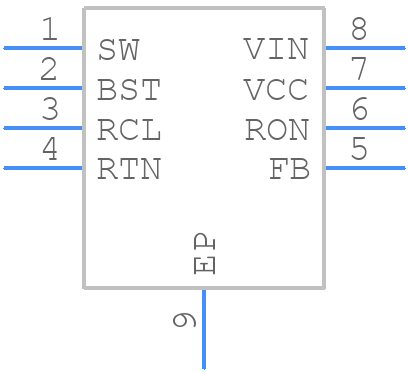

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM5007SDX/NOPB by Texas Instruments
Results Overview of LM5007SDX/NOPB by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LM5007SDX/NOPB Information
LM5007SDX/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM5007SDX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-43063-1-ND
|
DigiKey | IC REG BUCK ADJ 500MA 8WSON Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
31988 In Stock |
|
$1.5725 / $3.2300 | Buy Now |
|
DISTI #
926-LM5007SDX/NOPB
|
Mouser Electronics | Switching Voltage Regulators 9-75V Wide Vin 500m A Constant On-Time N A 926-LM5007SD/NOPB RoHS: Compliant | 6787 |
|
$1.2400 / $3.2300 | Buy Now |
|
DISTI #
J56:1989_00058188
|
Arrow Electronics | Conv DC-DC 9V to 75V Step Down Single-Out 2.5V to 73V 0.5A 8-Pin WSON EP T/R RoHS: Compliant Min Qty: 4500 Package Multiple: 4500 Lead time: 12 Weeks | Europe - 4500 |
|
$1.2364 | Buy Now |
|
DISTI #
V72:2272_07282026
|
Arrow Electronics | Conv DC-DC 9V to 75V Step Down Single-Out 2.5V to 73V 0.5A 8-Pin WSON EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2242 Container: Cut Strips | Americas - 2541 |
|
$1.6130 / $2.0060 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 27000 |
|
RFQ | |
|
|
LCSC | Step-down type Adjustable 9V75V 500mA WSON-8-EP(4x4) DC-DC Converters ROHS | 35 |
|
$1.1393 / $1.9389 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 0.5A 8WSON | 52263 |
|
$2.3943 / $3.5921 | Buy Now |
Part Details for LM5007SDX/NOPB
LM5007SDX/NOPB CAD Models
LM5007SDX/NOPB Part Data Attributes
|
|
LM5007SDX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM5007SDX/NOPB
Texas Instruments
9-75V Wide Vin, 500mA Constant On-Time Non-Synchronous Buck Regulator 8-WSON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | 4 X 4 MM, GREEN, LLP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Input Voltage-Max | 75 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | S-XDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.5 A | |
| Output Voltage-Max | 73 V | |
| Output Voltage-Min | 2.5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 800 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
Alternate Parts for LM5007SDX/NOPB
This table gives cross-reference parts and alternative options found for LM5007SDX/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM5007SDX/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM5007SD/NOPB | Texas Instruments | $2.4220 | 9-75V Wide Vin, 500mA Constant On-Time Non-Synchronous Buck Regulator 8-WSON -40 to 125 | LM5007SDX/NOPB vs LM5007SD/NOPB |
| LM5007SDX | National Semiconductor Corporation | Check for Price | IC 0.9 A SWITCHING REGULATOR, DSO8, 4 X 4 MM, LLP-8, Switching Regulator or Controller | LM5007SDX/NOPB vs LM5007SDX |
| LM5007SDX/NOPB | National Semiconductor Corporation | Check for Price | IC 0.9 A SWITCHING REGULATOR, DSO8, 4 X 4 MM, LLP-8, Switching Regulator or Controller | LM5007SDX/NOPB vs LM5007SDX/NOPB |
| LM5007SD/NOPB | National Semiconductor Corporation | Check for Price | IC 0.9 A SWITCHING REGULATOR, DSO8, 4 X 4 MM, LLP-8, Switching Regulator or Controller | LM5007SDX/NOPB vs LM5007SD/NOPB |
LM5007SDX/NOPB Frequently Asked Questions (FAQ)
-
The LM5007SDX/NOPB can handle input voltages up to 75V, but it's recommended to keep it below 60V for optimal performance and reliability.
-
To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet, and use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) value.
-
The minimum input capacitance required is 10uF, but it's recommended to use a higher value (e.g., 22uF) to ensure stability and reduce input voltage ripple.
-
The LM5007SDX/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent overheating.
-
The output voltage can be calculated using the formula: Vout = (R1 / R2) * (1 + R3 / R4) * Vref, where R1, R2, R3, and R4 are the resistors in the feedback network, and Vref is the internal reference voltage (1.25V).
