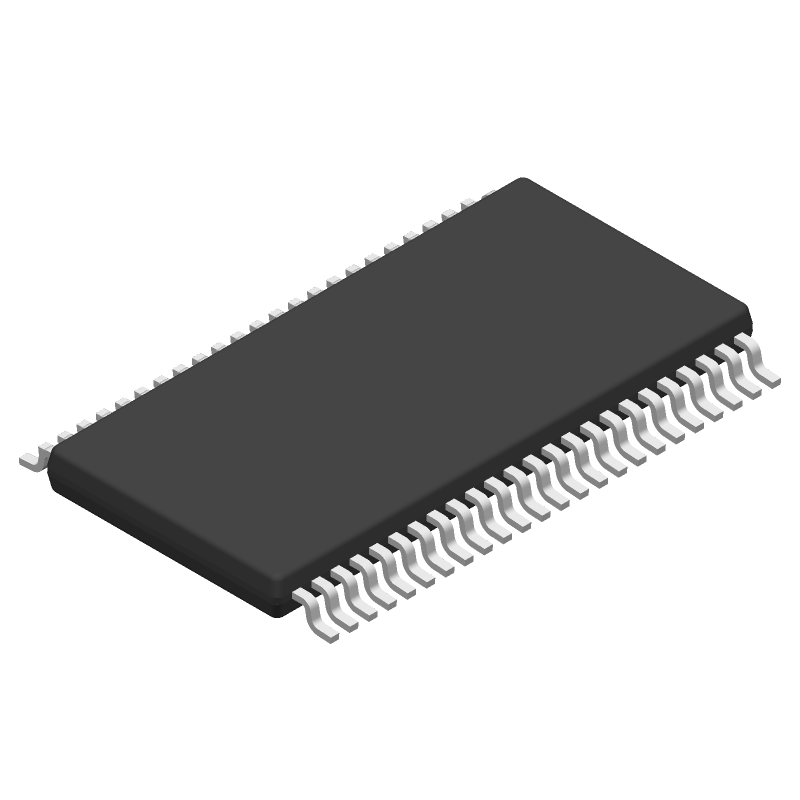

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LM27213MTD/NOPB by Texas Instruments
Results Overview of LM27213MTD/NOPB by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
LM27213MTD/NOPB Information
LM27213MTD/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LM27213MTD/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-39748-5-ND
|
DigiKey | IC REG CTRLR BUCK 48TSSOP Min Qty: 152 Lead time: 12 Weeks Container: Tube | Temporarily Out of Stock |
|
$6.4316 | Buy Now |
|
DISTI #
926-LM27213MTD/NOPB
|
Mouser Electronics | Switching Controllers 5-V to 30-V hysteret ic synchronous buck A 926-LM27213MTDX/NOPB RoHS: Compliant | 0 |
|
$6.2400 / $6.3400 | Order Now |
Part Details for LM27213MTD/NOPB
LM27213MTD/NOPB CAD Models
LM27213MTD/NOPB Part Data Attributes
|
|
LM27213MTD/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
LM27213MTD/NOPB
Texas Instruments
5-V to 30-V hysteretic synchronous buck controller 48-TSSOP -5 to 110
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TSSOP-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUT VOLTAGE IS PROGRAMMED FROM 0.7 TO 1.708V, ALSO OPERATES IN PWM CONTROL TECHNIQUE | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | HYSTERETIC CURRENT MODE | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G48 | |
| JESD-609 Code | e3 | |
| Length | 12.5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 110 °C | |
| Operating Temperature-Min | -5 °C | |
| Output Current-Max | 25 A | |
| Output Voltage-Max | 1.708 V | |
| Output Voltage-Min | 0.7 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP48,.3,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 400 kHz | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.1 mm |
LM27213MTD/NOPB Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
-
To ensure stability, make sure to follow the recommended component values and layout guidelines, and also consider the output capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) when selecting the output capacitor. Additionally, a minimum of 10uF output capacitance is recommended.
-
The maximum input voltage rating for the LM27213MTD/NOPB is 42V, but it's recommended to operate the device within the specified input voltage range of 7V to 36V for optimal performance and reliability.
-
The LM27213MTD/NOPB has a maximum operating junction temperature of 150°C, but it's recommended to operate the device within the specified temperature range of -40°C to 125°C for optimal performance and reliability. Additionally, consider the thermal derating of the device and the PCB when operating in high-temperature environments.
-
The output voltage of the LM27213MTD/NOPB can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (1.21V), R1 is the feedback resistor, and R2 is the divider resistor. The output voltage range is adjustable from 1.21V to 36V.
