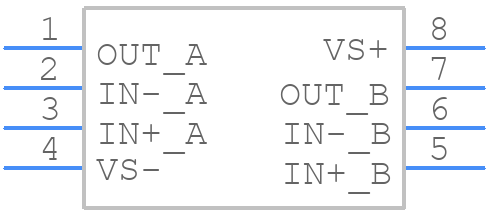

Part Symbol
-
Footprint
-

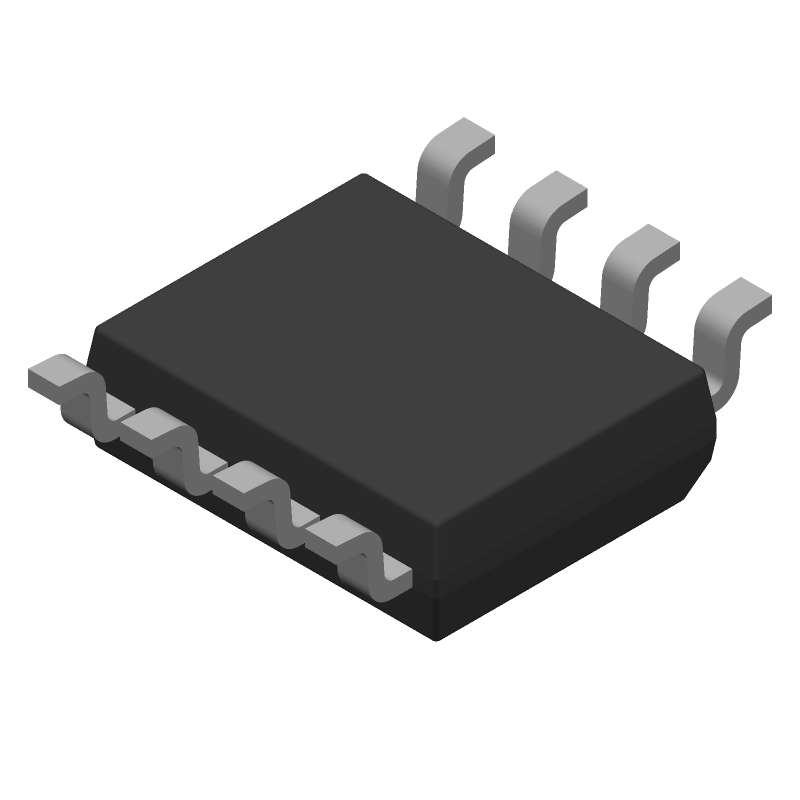

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL28213FBZ by Renesas Electronics Corporation
Results Overview of ISL28213FBZ by Renesas Electronics Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Electronic Manufacturing
Automotive
ISL28213FBZ Information
ISL28213FBZ by Renesas Electronics Corporation is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ISL28213FBZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ISL28213FBZ-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
2934 In Stock |
|
$0.2887 / $1.3000 | Buy Now |
|
DISTI #
ISL28213FBZ
|
Avnet Americas | OP Amp Dual GP R-R I/O 5.5V 8-Pin SOIC - Rail/Tube (Alt: ISL28213FBZ) RoHS: Compliant Min Qty: 3880 Package Multiple: 97 Lead time: 12 Weeks, 0 Days Container: Tube | 64990 Factory Stock |
|
$0.4900 | Buy Now |
|
DISTI #
968-ISL28213FBZ
|
Mouser Electronics | Operational Amplifiers - Op Amps ISL28213FBZ DL GEN PURPOSE MIPR RRIO OP RoHS: Compliant | 1572 |
|
$0.2880 / $1.3000 | Buy Now |
|
DISTI #
ISL28213FBZ
|
IBS Electronics | ISL28213FBZ by Renesas is a dual precision operational amplifier with low noise, low offset voltage, and wide supply range of 2.4V to 5.5V, ideal for precision applications. Min Qty: 3880 Package Multiple: 1 | 0 |
|
$0.3120 / $0.3445 | Buy Now |
|
DISTI #
ISL28213FBZ
|
Avnet Silica | OP Amp Dual GP RR IO 55V 8Pin SOIC (Alt: ISL28213FBZ) RoHS: Compliant Min Qty: 97 Package Multiple: 97 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | IC OPAMP GP 2 CIRCUIT 8SOIC | 1067 |
|
RFQ |
Part Details for ISL28213FBZ
ISL28213FBZ CAD Models
ISL28213FBZ Part Data Attributes
|
|
ISL28213FBZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL28213FBZ
Renesas Electronics Corporation
Dual General Purpose Micropower, RRIO Operational Amplifier, SOICN, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOICN | |
| Pin Count | 8 | |
| Manufacturer Package Code | M8.15E | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2017-11-07 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.00005 µA | |
| Bias Current-Max (IIB) @25C | 0.00002 µA | |
| Common-mode Reject Ratio-Nom | 70 dB | |
| Frequency Compensation | NO | |
| Input Offset Current-Max (IIO) | 0.00003 µA | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.24 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUT LINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 1 V/us | |
| Supply Current-Max | 0.17 mA | |
| Supply Voltage Limit-Max | 6.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 2000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for ISL28213FBZ
This table gives cross-reference parts and alternative options found for ISL28213FBZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL28213FBZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL28213FBZ-T13 | Renesas Electronics Corporation | Check for Price | Dual General Purpose Micropower, RRIO Operational Amplifier, SOICN, /Reel | ISL28213FBZ vs ISL28213FBZ-T13 |
| ISL28213FBZ-T7 | Intersil Corporation | Check for Price | Dual General Purpose Micropower, RRIO Operational Amplifier; MSOP8, SOIC8, SOT8; Temp Range: -40° to 125°C | ISL28213FBZ vs ISL28213FBZ-T7 |
ISL28213FBZ Frequently Asked Questions (FAQ)
-
Renesas provides a recommended PCB layout in the ISL28213FBZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
The ISL28213FBZ has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
-
The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 25V. X5R or X7R ceramic capacitors are suitable for this application.
-
To ensure stability, follow the recommended PCB layout, use a low-ESR input capacitor, and ensure that the output capacitor is properly sized and placed. Additionally, avoid using long traces and minimize the distance between the device and the output capacitor. If oscillations occur, try adding a small resistor (e.g., 1Ω) in series with the output capacitor.
-
The maximum allowed voltage on the EN (Enable) pin is 6V. Exceeding this voltage may damage the device. If a higher voltage is required, use a voltage divider or a level shifter to ensure the EN pin voltage remains within the specified range.
