IPR1SAD2 Information
IPR1SAD2 by APEM Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for IPR1SAD2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73J0515
|
Newark | Pushbutton Switch, Product Range:Ip Series, Panel Cutout Diameter:13.6Mm, Contact Configuration:Spst, Switch Operation:Off-On, Pushbutton Actuator Style:Round Curved, Actuator/Cap Colour:Black, Contact Current Ac Max:- Rohs Compliant: Yes |Apem IPR1SAD2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 21 |
|
$17.5200 / $21.4800 | Buy Now |
|
DISTI #
679-1099-ND
|
DigiKey | SWITCH PUSHBUTTON SPST 4A 12V Min Qty: 1 Lead time: 10 Weeks Container: Bulk |
352 In Stock |
|
$18.9412 / $28.2600 | Buy Now |
|
DISTI #
642-IPR1SAD2
|
Mouser Electronics | Pushbutton Switches SEALED PB BLACK RoHS: Compliant | 2252 |
|
$18.4000 / $26.3600 | Buy Now |
|
DISTI #
70066006
|
RS | Switch, P/B, Sealed, SPST, OFF-ON, Non-Illum, Rnd, Curved Blk Actuator,2A,125VAC, Solder Min Qty: 1 Package Multiple: 1 Container: Bulk | 76 |
|
$16.6700 / $23.4800 | Buy Now |
|
DISTI #
MORIPR1SAD2
|
Heilind Electronics | Americas - 59 in Stock |
|
$21.2264 / $28.1250 | Buy Now | |
|
|
Onlinecomponents.com | Switch Push Button OFF ON SPST Round Plunger 4A 72VDC Latching Solder Lug Panel Mount Automotive RoHS: Compliant |
1352 In Stock |
|
$15.5800 / $28.2100 | Buy Now |
|
DISTI #
71320311
|
Verical | Switch Push Button OFF ON SPST Round Plunger 4A 72VDC Latching Solder Lug Panel Mount RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2302 | Americas - 1312 |
|
$20.6021 / $40.5019 | Buy Now |
|
DISTI #
MORIPR1SAD2
|
Interstate Connecting Components | 18 |
|
$21.2264 / $28.1250 | Buy Now | |
|
|
Master Electronics | Switch Push Button OFF ON SPST Round Plunger 4A 72VDC Latching Solder Lug Panel Mount Automotive RoHS: Compliant |
1352 In Stock |
|
$15.5800 / $28.2100 | Buy Now |
Part Details for IPR1SAD2

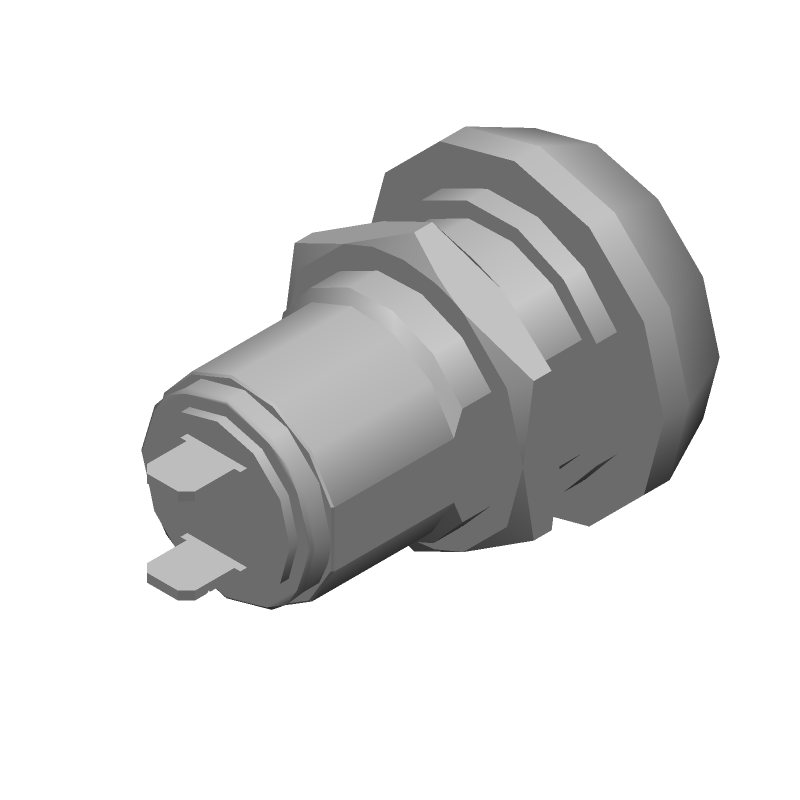

IPR1SAD2 CAD Models
IPR1SAD2 Part Data Attributes
|
|
IPR1SAD2
APEM Inc
Buy Now
Datasheet
|
Compare Parts:
IPR1SAD2
APEM Inc
Special Switch, Off-on, Latched, 1A, 48VDC, Solder Lug Terminal, Panel Mount
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | APEM COMPONENTS INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.33 | |
| Samacsys Manufacturer | Apem | |
| Actuator Color | BLACK | |
| Actuator Length | 0.275 inch | |
| Actuator Material | POLYAMIDE 6/6 | |
| Actuator Travel | 2.5 mm | |
| Actuator Type | ROUND CURVED TYPE | |
| Body Height | 20.6 mm | |
| Body Length or Diameter | 12 mm | |
| Bushing Diameter | 0.472 inch | |
| Bushing Length | 0.322 inch | |
| Center Contact Material | SILVER | |
| Center Contact Plating | GOLD | |
| Contact Current(DC)-Max | 4 A | |
| Contact (DC) Max Rating R Load | 4A@12VDC | |
| Contact Function | OFF-ON | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Dielectric Withstand Volts | 1500VAC V | |
| Electrical Life | 200000 Cycle(s) | |
| End Contact Material | SILVER | |
| End Contact Plating | GOLD | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | THERMOPLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | PANEL MOUNT-THREADED | |
| Operating Force-Max | 7 N | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | BULK | |
| Sealing | EPOXY TERMINAL SEALED; IP67 | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPST | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Finish | TIN | |
| Termination Type | SOLDER |
