ICL3222EIVZ-T by:

±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, TSSOP, /Reel

Part Details for ICL3222EIVZ-T by Renesas Electronics Corporation

Results Overview of ICL3222EIVZ-T by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ICL3222EIVZ-T Information

ICL3222EIVZ-T by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for ICL3222EIVZ-T

Part # Distributor Description Stock Price Buy
DISTI # 84AC6741
Newark Rs232 Transceiver, 250Kbps, -40To85Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:Full Duplex, Data Rate Max:250Kbps, Supply Voltage Min:3V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Renesas ICL3222EIVZ-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 1220
  • 1 $1.3500
$1.3500 Buy Now
DISTI # 61J6119
Newark Ic, Rs232 Drvr, 5.5V, Tssop-20, Device Type:Transceiver, Ic Interface Type:Rs232, No. Of Drivers:2, Supply Voltage Range:3V To 5.5V, Driver Case Style:Tssop, No. Of Pins:20, Operating Temperature Range:-40°C To +85°C Rohs Compliant: Yes |Renesas ICL3222EIVZ-T RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # ICL3222EIVZ-TCT-ND
DigiKey IC TRANSCEIVER FULL 2/2 20TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 5870
In Stock
  • 1 $3.4600
  • 10 $2.2070
  • 25 $1.8812
  • 100 $1.5125
  • 250 $1.3314
  • 500 $1.2200
  • 1,000 $1.1266
  • 2,500 $1.1748
  • 5,000 $1.1504
  • 7,500 $1.1382
$1.1266 / $3.4600 Buy Now
DISTI # 84AC6741
Avnet Americas Transceiver, RS232, 2 Driver, 2 Receiver, 3 V to 5.5 V, 250 Kbps, TSSOP-20, -40 ?C to 85 ?C - Product that comes on tape, but is not reeled (Alt: 84AC6741) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack 1220 Partner Stock
  • 1 $2.6300
  • 10 $1.9700
  • 25 $1.8400
  • 50 $1.7100
  • 100 $1.5800
$1.5800 / $2.6300 Buy Now
DISTI # ICL3222EIVZ-T
Avnet Americas Transceiver, RS232, 2 Driver, 2 Receiver, 3 V to 5.5 V, 250 Kbps, TSSOP-20, -40 ?C to 85 ?C - Tape and Reel (Alt: ICL3222EIVZ-T) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 1 $2.0400
$2.0400 Buy Now
DISTI # 968-ICL3222EIVZ-T
Mouser Electronics RS-232 Interface IC RS232 3V 2D/2R 15KV SHTDWN IND RoHS: Compliant 4246
  • 1 $2.9900
  • 10 $2.0500
  • 25 $1.8700
  • 100 $1.5200
  • 250 $1.3400
  • 500 $1.2200
  • 1,000 $1.1300
  • 2,500 $1.0600
$1.0600 / $2.9900 Buy Now
DISTI # 87730290
Verical Dual Transmitter/Receiver RS-232 20-Pin TSSOP T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 2435 Americas - 2500
  • 25 $2.9100
  • 50 $2.0300
  • 100 $1.8000
  • 500 $1.4500
  • 1,000 $1.1860
$1.1860 / $2.9100 Buy Now
DISTI # ICL3222EIVZ-T
IBS Electronics &#xC0, 15KV ESD PROTECTED &#x2B, 3V TO &#x2B, 5.5V 1&#xA6, &#xCC, A 250KBPS RS-232 TRANSMITTERS/RECEIVERS Min Qty: 2500 Package Multiple: 1 0
  • 2,500 $1.3000
$1.3000 Buy Now
NexGen Digital   1994
RFQ
DISTI # ICL3222EIVZ-T
Avnet Silica Transceiver RS232 2 Driver 2 Receiver 3 V to 55 V 250 Kbps TSSOP20 40 C to 85 C (Alt: ICL3222EIVZ-T) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # ICL3222EIVZ-T
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 2500
  • 1 $2.8700
  • 10 $1.9600
  • 50 $1.7900
  • 100 $1.4500
  • 500 $1.2100
  • 2,000 $1.0700
$1.0700 / $2.8700 Buy Now

Part Details for ICL3222EIVZ-T

ICL3222EIVZ-T CAD Models

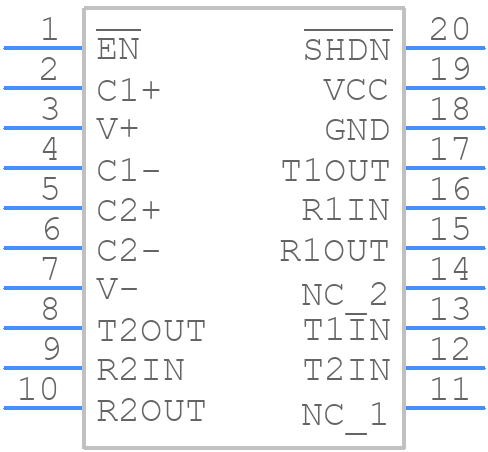

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

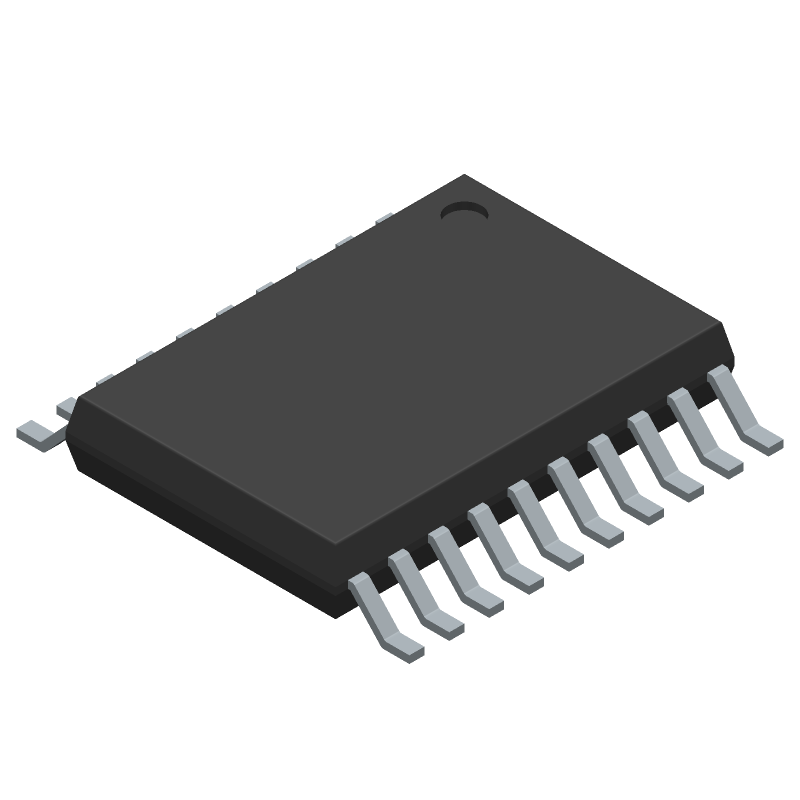

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ICL3222EIVZ-T Part Data Attributes

Parametric Data
ICL3222EIVZ-T Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
ICL3222EIVZ-T Renesas Electronics Corporation ±15kV ESD Protected, +3V to +5.5V, 1µA, 250kbps, RS-232 Transmitters/Receivers, TSSOP, /Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RENESAS ELECTRONICS CORP
Part Package Code TSSOP
Pin Count 20
Manufacturer Package Code M20.173
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 16 Weeks, 3 Days
Date Of Intro 2017-10-27
Samacsys Manufacturer Renesas Electronics
Differential Output NO
Driver Number of Bits 2
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-232; TIA-232; V.24; V.28
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 6.5 mm
Moisture Sensitivity Level 3
Number of Functions 2
Number of Terminals 20
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Receiver Number of Bits 2
Seated Height-Max 1.2 mm
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm
