G6A-274P-ST-US-DC3 by:

Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.067A (Coil), 3VDC (Coil), 200mW (Coil), 2A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

Part Details for G6A-274P-ST-US-DC3 by OMRON Electronic Components LLC

Results Overview of G6A-274P-ST-US-DC3 by OMRON Electronic Components LLC

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

G6A-274P-ST-US-DC3 Information

G6A-274P-ST-US-DC3 by OMRON Electronic Components LLC is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Part Details for G6A-274P-ST-US-DC3

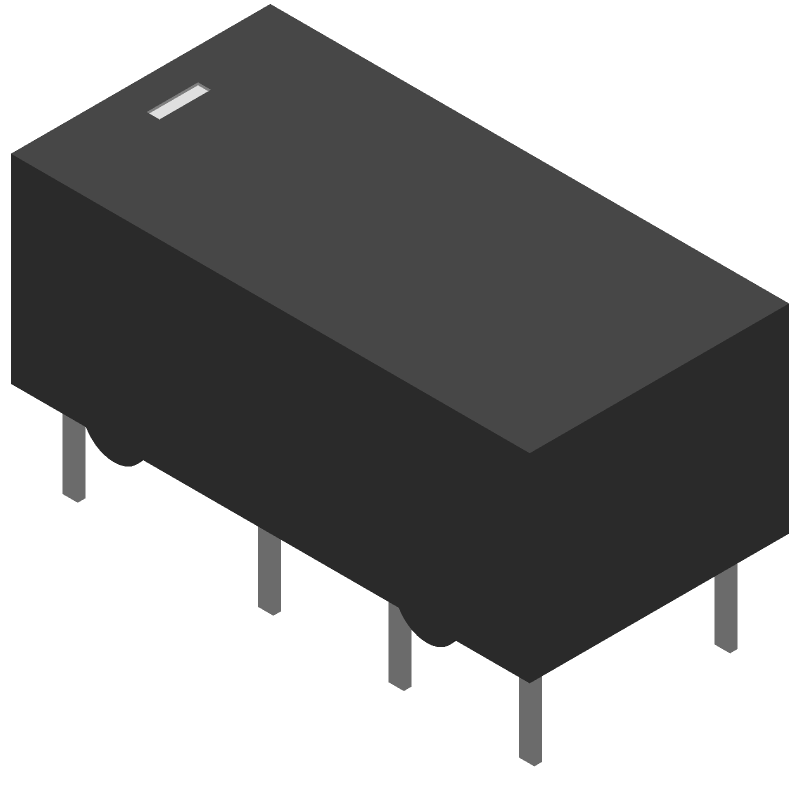

G6A-274P-ST-US-DC3 CAD Models

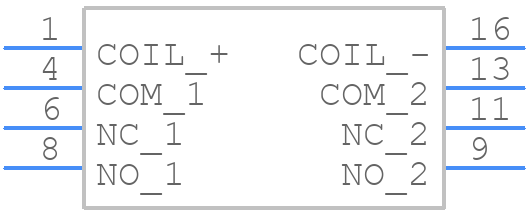

  • Part Symbol

    Part Symbol

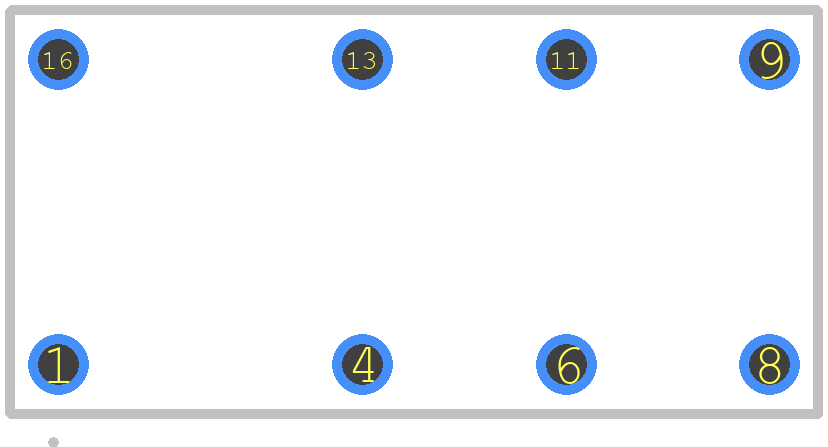

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

G6A-274P-ST-US-DC3 Part Data Attributes

Parametric Data
G6A-274P-ST-US-DC3 OMRON Electronic Components LLC
Buy Now Datasheet
Compare Parts:
G6A-274P-ST-US-DC3 OMRON Electronic Components LLC Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.067A (Coil), 3VDC (Coil), 200mW (Coil), 2A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer OMRON CORP
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.41.00.20
Factory Lead Time 111 Weeks
Samacsys Manufacturer Omron Electronics
Body Breadth 10.1 mm
Body Height 8.4 mm
Body Length or Diameter 20.2 mm
Coil Current(DC)-Max 0.067 A
Coil Operate Voltage(DC) 2.1 V
Coil Power 200 mW
Coil Release Voltage(DC) 0.3 V
Coil Resistance 45 Ω
Coil Voltage(DC)-Max 3 V
Coil Voltage-Nom 3 V
Coil/Input Supply Type DC
Contact (AC) Max Power Rating R Load 125VA@250VAC
Contact (AC) Max Rating R Load .5A@125VAC
Contact Current(AC)-Max 0.5 A
Contact Current(DC)-Max 2 A
Contact (DC) Max Power Rating R Load 60W@220VDC
Contact (DC) Max Rating R Load 2A@30VDC
Contact Resistance 50 mΩ
Contact Voltage(AC)-Max 125 V
Contact Voltage(DC)-Max 30 V
Contact/Output Supply Type AC/DC
Electrical Life 500000 Cycle(s)
End Contact Material Silver
End Contact Plating GOLD
Input Switching Control Type Random
Insulation Resistance 1000000000 Ω
Mounting Feature THROUGH HOLE-STRAIGHT
Number of Terminals 8
Operate Time 5 ms
Operating Temperature-Max 70 °C
Operating Temperature-Min -40 °C
Physical Dimension 20.2mm x 10.1mm x 8.4mm
Reference Standard CSA; UL
Relay Action MOMENTARY
Relay Form 2 FORM C
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 3 ms
Surface Mount NO
Terminal Length 0.002999745999491999 inch
Termination Type SOLDER

Alternate Parts for G6A-274P-ST-US-DC3

This table gives cross-reference parts and alternative options found for G6A-274P-ST-US-DC3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of G6A-274P-ST-US-DC3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RY-24W-K FUJITSU Limited $1.3488 Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.008A (Coil), 24VDC (Coil), 200mW (Coil), 1A (Contact), 60VDC (Contact), DC Input, Random, AC/DC Output, ROHS COMPLIANT G6A-274P-ST-US-DC3 vs RY-24W-K
G6A-474P-ST20-US-DC12 OMRON Electronic Components LLC Check for Price Power/Signal Relay, 4PDT, Momentary, 0.017A (Coil), 12VDC (Coil), 200mW (Coil), 2A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount G6A-274P-ST-US-DC3 vs G6A-474P-ST20-US-DC12
DS2E-S-DC24V-R Panasonic Electronic Components Check for Price Power/Signal Relay, DPDT, Momentary, 0.008A (Coil), 24VDC (Coil), 200mW (Coil), 2A (Contact), 220VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount G6A-274P-ST-US-DC3 vs DS2E-S-DC24V-R
DS2E-M-DC6V Panasonic Electronic Components Check for Price Power/Signal Relay, DPDT, Momentary, 0.066A (Coil), 6VDC (Coil), 400mW (Coil), 2A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT G6A-274P-ST-US-DC3 vs DS2E-M-DC6V
G6A-434P-ST20-US-DC12 OMRON Electronic Components LLC Check for Price Power/Signal Relay, 4PDT, Momentary, 0.017A (Coil), 12VDC (Coil), 200mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount G6A-274P-ST-US-DC3 vs G6A-434P-ST20-US-DC12
G6A-474P-ST40-US-DC48 OMRON Electronic Components LLC Check for Price Power/Signal Relay, 4 Form C, 4PDT, Momentary, 0.008A (Coil), 48VDC (Coil), 400mW (Coil), 2A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT G6A-274P-ST-US-DC3 vs G6A-474P-ST40-US-DC48
FBR244D024/02CP FUJITSU Component Ltd Check for Price Power/Signal Relay, DPDT, Momentary, 0.021A (Coil), 24VDC (Coil), 500mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount G6A-274P-ST-US-DC3 vs FBR244D024/02CP
MR62-48USRY TOKIN Corporation Check for Price Power/Signal Relay, DPDT, Momentary, 0.008A (Coil), 48VDC (Coil), 400mW (Coil), 2A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount G6A-274P-ST-US-DC3 vs MR62-48USRY
G6A-234P-ST40-US-DC6 OMRON Corporation Check for Price Power/Signal Relay, DPDT, Momentary, 0.067A (Coil), 6VDC (Coil), 400mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount G6A-274P-ST-US-DC3 vs G6A-234P-ST40-US-DC6
G6A-234P-ST40-US-DC24 OMRON Corporation Check for Price Power/Signal Relay, DPDT, Momentary, 0.017A (Coil), 24VDC (Coil), 400mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount G6A-274P-ST-US-DC3 vs G6A-234P-ST40-US-DC24
