Switches / Pushbutton Switches / FP11SPA1B1TP02
Datasheets
FP11SPA1B1TP02 by:

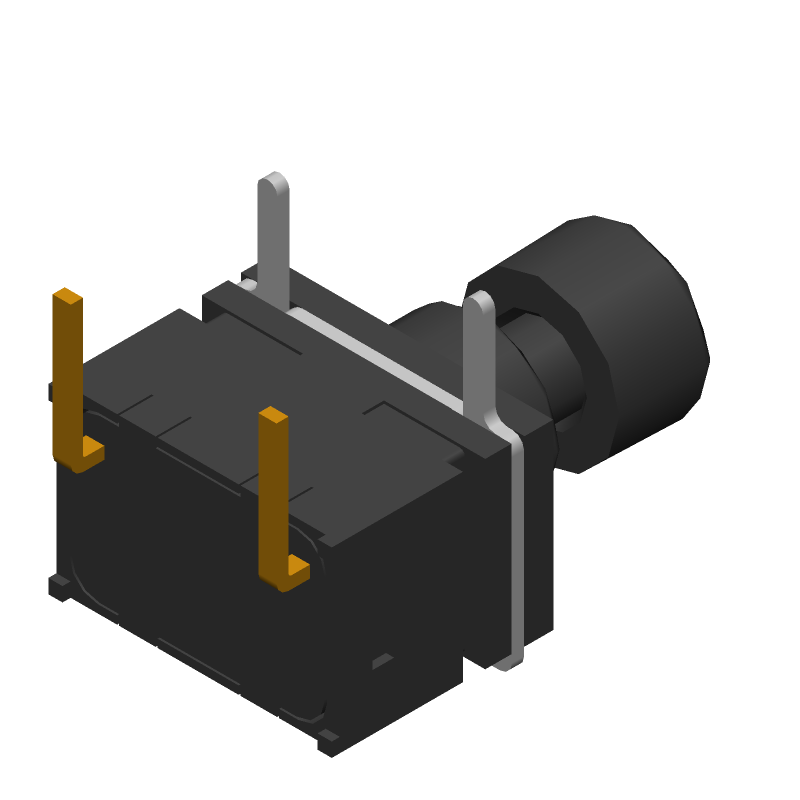

PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT

Part Details for FP11SPA1B1TP02 by C&K

Results Overview of FP11SPA1B1TP02 by C&K

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

FP11SPA1B1TP02 Information

FP11SPA1B1TP02 by C&K is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for FP11SPA1B1TP02

Part # Distributor Description Stock Price Buy
DISTI # 41AJ8575
Newark Pushbutton Switches Right Angle Mt.ing W/Black |C&k Components FP11SPA1B1TP02 RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $8.2000
$8.2000 Buy Now
DISTI # 35AH0371
Newark Fp11Spa1B1Tp02 |C&k Components FP11SPA1B1TP02 RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $7.1200
$7.1200 Buy Now
DISTI # CKN10298-ND
DigiKey SWITCH PUSH SPST-NO 0.4VA 28V Min Qty: 1 Lead time: 15 Weeks Container: Tray 7470
In Stock
  • 1 $9.1900
  • 10 $7.9290
  • 25 $7.4772
  • 50 $7.1516
  • 100 $6.8398
  • 300 $6.3722
  • 500 $6.1653
  • 1,000 $5.8949
$5.8949 / $9.1900 Buy Now
DISTI # 611-FP11SPA1B1TP02
Mouser Electronics Pushbutton Switches RIGHT ANGLE MOUNTING W/BLACK CAP RoHS: Compliant 539
  • 1 $9.1900
  • 10 $7.2600
  • 100 $6.8300
  • 200 $6.3700
  • 500 $6.1600
  • 1,000 $5.8900
$5.8900 / $9.1900 Buy Now
DISTI # 69897314
Verical Switch Push Button OFF Mom SPST Round Plunger 28VAC 28VDC 0.4VA Momentary Thru-Hole PC Pins Tray RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 1744 Americas - 400
  • 5 $20.9430
  • 250 $20.6310
  • 500 $20.3190
  • 1,250 $20.0070
  • 2,500 $10.2180
$10.2180 / $20.9430 Buy Now
DISTI # FP11SPA1B1TP02
IBS Electronics STANDARD FP BLACK THROUGH HOLE RIGHT ANGLE PUSHBUTTON SWITCH 3.3MM 0.4VA AC/DC 28V 80MOHM Min Qty: 5 Package Multiple: 1 400
  • 5 $20.9430
  • 250 $20.6310
  • 500 $20.3190
  • 1,250 $20.0070
  • 2,500 $10.2180
  • 3,750 $6.9550
  • 5,000 $6.8120
$6.8120 / $20.9430 Buy Now
DISTI # 000000000003166679
Sager Pushbutton Switches RIGHT ANGLE MOUNTING W/BLACK CAP Min Qty: 100 0
  • 100 $6.9000
$6.9000 Buy Now

Part Details for FP11SPA1B1TP02

FP11SPA1B1TP02 Part Data Attributes

Parametric Data
FP11SPA1B1TP02 C&K
Buy Now Datasheet
Compare Parts:
FP11SPA1B1TP02 C&K PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 28VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer C & K COMPONENTS LLC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.31
Factory Lead Time 38 Weeks
Samacsys Manufacturer C & K COMPONENTS
Actuator Color BLACK
Actuator Length 0.13 inch
Actuator Material POLYPHENYLENE SULPHIDE
Actuator Type STANDARD PLUNGER
Body Breadth 5.6 mm
Body Height 4.5 mm
Body Length or Diameter 7 mm
Bushing Length 0.063 inch
Center Contact Material PHOSPHOR BRONZE
Center Contact Plating GOLD OVER NICKEL
Contact (AC) Max Rating R Load 0.02A@28VAC
Contact Current(AC)-Max 0.02 A
Contact Current(DC)-Max 0.02 A
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Contact (DC) Max Rating R Load 0.02A@28VDC
Contact Resistance 0.08 mΩ
Contact Voltage(AC)-Max 28 V
Contact Voltage(DC)-Max 28 V
Electrical Life 50000 Cycle(s)
End Contact Material BRASS
End Contact Plating GOLD OVER NICKEL
Housing Material POLYAMIDE
Illumination NON-ILLUMINATED
Insulation Resistance 500000000 Ω
Insulator Material POLYPHENYLENE SULPHIDE
JESD-609 Code e4
Mounting Feature THROUGH HOLE-RIGHT ANGLE
Operating Temperature-Max 80 °C
Operating Temperature-Min -20 °C
PCB Hole Count 4
Packing Method TRAY
Sealing EPOXY TERMINAL SEALED
Solderability MIL-STD
Surface Mount NO
Switch Action MOMENTARY
Switch Function SPST
Switch Type MINIATURE SWITCH
Terminal Finish GOLD OVER NICKEL
Terminal Length 0.102 inch
Termination Type SOLDER

FP11SPA1B1TP02 Related Parts

FP11SPA1B1TP02 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds.

  • No, the FP11SPA1B1TP02 is not designed for washable or waterproof applications. It is recommended for use in dry environments only.

  • The FP11SPA1B1TP02 is a mechanical switch, so it does not have an operating frequency. It is a momentary action switch, meaning it only responds to physical actuation.

  • While the FP11SPA1B1TP02 is a robust switch, it is not specifically designed for high-vibration or high-shock environments. If your application requires such conditions, consider consulting with a C&K representative or using a different switch model.

  • Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the switch. Avoid using liquids, chemicals, or abrasive materials that could damage the switch.
