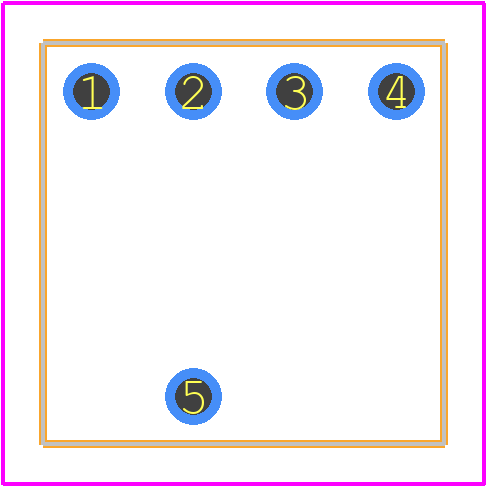

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRS3016 by knitter-switch
Results Overview of DRS3016 by knitter-switch
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Transportation and Logistics
Agriculture Technology
Medical Imaging
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Consumer Electronics
Education and Research
Security and Surveillance
Audio and Video Systems
Aerospace and Defense
Healthcare
Renewable Energy
Robotics and Drones
DRS3016 Information
DRS3016 by knitter-switch is a Rotary Switch.
Rotary Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for DRS3016
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01M7367
|
Newark | Switch, Hex, Horiz, No. Of Switch Positions:16 Position, No. Of Poles:1 Pole, Angle Of Throw:22.5°, Contact Current Ac Max:-, Contact Voltage Ac Max:-, Product Range:Drs3000 Series, Illumination:Non Illuminated, Contact Current Dc Rohs Compliant: Yes |Knitter-Switch DRS3016 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 689 |
|
$1.9500 / $3.4400 | Buy Now |
|
DISTI #
DRS3016
|
Avnet Americas | - Rail/Tube (Alt: DRS3016) Min Qty: 480 Package Multiple: 48 Lead time: 111 Weeks, 0 Days Container: Tube | 0 |
|
$1.3200 | Buy Now |
|
|
Bristol Electronics | 166 |
|
RFQ | ||
|
DISTI #
DRS3016
|
TME | Encoding switch, Pos: 16, PCB,THT, 100mΩ, DC load @R: 0.03A/15VDC Min Qty: 1 | 205 |
|
$1.6300 / $3.0900 | Buy Now |
|
|
ComSIT USA | Rotary Switch ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
DRS3016
|
Chip One Stop | Electromechanicals RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 731 |
|
$1.6300 / $3.2100 | Buy Now |
Part Details for DRS3016
DRS3016 CAD Models
DRS3016 Part Data Attributes
|
|
DRS3016
knitter-switch
Buy Now
Datasheet
|
Compare Parts:
DRS3016
knitter-switch
Rotary Coded Switch, 16 Positions, Hexadecimal, Latched, 0.03A, 15VDC, 5 PCB Hole Cnt, Solder Terminal, Rotary Screw Actuator, Through Hole-straight, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | KNITTER-SWITCH | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.20 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | KNITTER-SWITCH | |
| Actuator Color | YELLOW | |
| Actuator Type | ROTARY SCREW | |
| Additional Feature | ROHS COMPLIANT | |
| Body Breadth | 10 mm | |
| Body Color | BLACK | |
| Body Height | 4.8 mm | |
| Body Length or Diameter | 10 mm | |
| Center Contact Plating | GOLD | |
| Contact Current(DC)-Max | 0.03 A | |
| Contact (DC) Max Rating R Load | .03A@15VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 15 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 20000 Cycle(s) | |
| End Contact Plating | GOLD | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Number of Positions | 16 | |
| Number of Switch Sections | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PCB Hole Count | 5 | |
| Sealing | WATERPROOF | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | BINARY CODED HEXADECIMAL | |
| Switch Type | ROTARY CODED SWITCH | |
| Terminal Finish | Gold (Au) | |
| Terminal Length | 0.138 inch | |
| Terminal Material | PHOSPHOR BRONZE | |
| Termination Type | SOLDER |
DRS3016 Frequently Asked Questions (FAQ)
-
The recommended PCB layout and land pattern for the DRS3016 can be found in the Knitter-Switch application note AN-DRS3016-01, which provides detailed guidelines for optimal PCB design and assembly.
-
To ensure reliable switching performance in high-vibration environments, it is recommended to use a secure mounting method, such as screw mounting or adhesive bonding, and to follow the recommended PCB layout and land pattern guidelines. Additionally, consider using a switch with a higher operating force, such as the DRS3016-HF, for improved vibration resistance.
-
The maximum allowable temperature range for the DRS3016 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the switch's performance and lifespan may be affected by extreme temperatures, and it's recommended to operate the switch within a temperature range of -20°C to 85°C for optimal performance.
-
The DRS3016 is designed to operate in environments with relative humidity up to 90% RH, but it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or potting the switch. Additionally, it's essential to follow proper storage and handling procedures to prevent moisture absorption.
-
The recommended cleaning and maintenance procedure for the DRS3016 involves using a soft, dry brush to remove any debris or contaminants from the switch's surface. Avoid using harsh chemicals, solvents, or abrasive materials that may damage the switch's components or compromise its performance.
