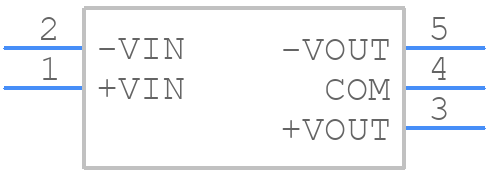

Part Symbol
-

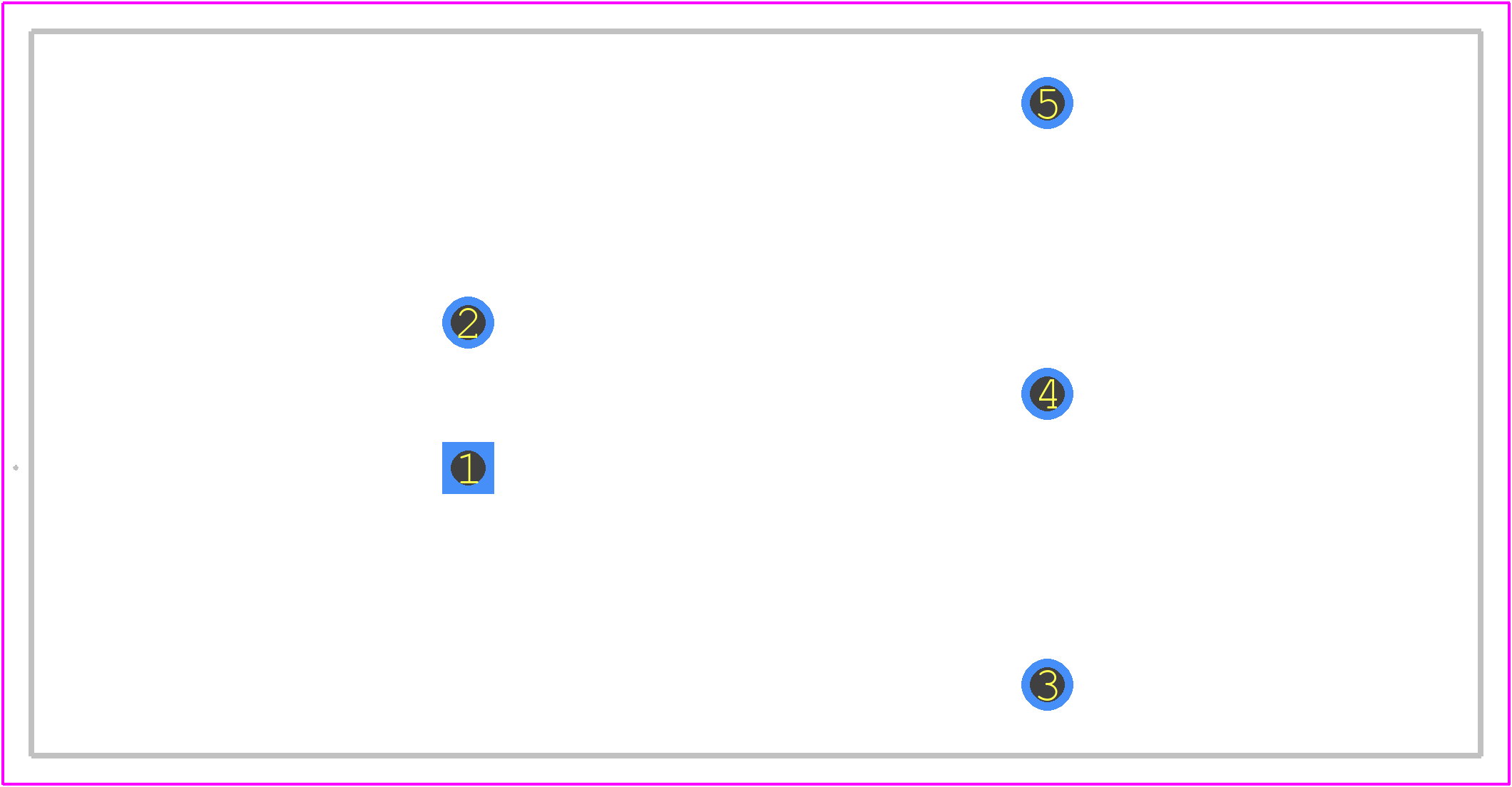

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DKE10B-24 by Mean Well
Results Overview of DKE10B-24 by Mean Well
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Computing and Data Storage
Aerospace and Defense
Energy and Power Systems
Electronic Manufacturing
Telecommunications
Renewable Energy
Automotive
DKE10B-24 Information
DKE10B-24 by Mean Well is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DKE10B-24
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1866-1328-ND
|
DigiKey | DC DC CONVERTER +/-24V 10W Min Qty: 1 Lead time: 12 Weeks Container: Tube |
9 In Stock |
|
$21.8180 / $23.0300 | Buy Now |
|
DISTI #
DKE10B-24
|
Avnet Americas | - Boxed Product (Development Kits) (Alt: DKE10B-24) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Box | 0 |
|
$17.8931 / $21.3833 | Buy Now |
|
DISTI #
709-DKE10B-24
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 18-36Vin +/-24Vout 21-210mA, 10W RoHS: Compliant | 17 |
|
$21.3200 / $23.0300 | Buy Now |
|
DISTI #
72094171
|
RS | DC-DC Converter, +/-24V 10W, 210mA, 210mA, DKE10 Series Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$21.6300 / $23.2600 | RFQ |
|
|
Onlinecomponents.com | Module DC-DC 24VIN 2-OUT 24V/-24V 0.21A/-0.21A 10W 5-Pin RoHS: Compliant |
68 In Stock 218 Factory Stock |
|
$22.1200 / $36.5900 | Buy Now |
|
DISTI #
88035614
|
Verical | Module DC-DC 24VIN 2-OUT 24V/-24V -0.21A/0.21A 10W 5-Pin Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2330 | Americas - 66 |
|
$25.5133 / $45.9097 | Buy Now |
|
DISTI #
DKE10B-24
|
TME | Converter: DC/DC, 10W, Uin: 18÷36VDC, Uout: 24VDC, Uout2: -24VDC Min Qty: 1 | 0 |
|
$17.9200 / $27.2500 | RFQ |
|
DISTI #
DKE10B-24
|
IBS Electronics | 10W I/P: 18-36VDC O/P: 24V @210MA D/D MODULE DC/DC MODULE TYPE Min Qty: 1 Package Multiple: 1 | 68 |
|
$28.7560 / $47.5670 | Buy Now |
|
DISTI #
000000000003770006
|
Sager | Isolated DC/DC Converters - Through Hole 18-36Vin +/-24Vout 21-210mA, 10W Min Qty: 1 | 0 |
|
$16.1800 / $22.4600 | Buy Now |
|
|
Master Electronics | Module DC-DC 24VIN 2-OUT 24V/-24V 0.21A/-0.21A 10W 5-Pin RoHS: Compliant |
68 In Stock 218 Factory Stock |
|
$22.1200 / $36.5900 | Buy Now |
Part Details for DKE10B-24
DKE10B-24 CAD Models
DKE10B-24 Part Data Attributes
|
|
DKE10B-24
Mean Well
Buy Now
Datasheet
|
Compare Parts:
DKE10B-24
Mean Well
Analog Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MEAN WELL ENTERPRISES CO LTD | |
| Package Description | MODULE-5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 19 Weeks, 3 Days | |
| Samacsys Manufacturer | Mean Well | |
| Additional Feature | ALSO -24 V OUTPUT VOLTAGE AVAILABLE; SEATED HEIGHT NOM | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | FCC, EAC, CE, UKCA | |
| Efficiency (Main Output) | 81% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 18 V | |
| JESD-30 Code | R-MDMA-P5 | |
| Length | 50.8 mm | |
| Line Regulation-Max | 0.3% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Current-Max | 0.21 A | |
| Output Voltage-Max | 24.48 V | |
| Output Voltage-Min | 23.52 V | |
| Output Voltage-Nom | 24 V | |
| Package Body Material | METAL | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,5LEAD,0.8 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | OVER CURRENT, SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.02828 Vrms | |
| Seated Height-Max | 11.27 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Pitch | 10.2 mm | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 10 W | |
| Trim/Adjustable Output | NO | |
| Width | 25.4 mm |
DKE10B-24 Frequently Asked Questions (FAQ)
-
The maximum ambient temperature for the DKE10B-24 is 40°C (104°F) for normal operation, and 30°C (86°F) for full load operation.
-
Yes, the DKE10B-24 is designed to operate in humid environments, but it's recommended to keep the relative humidity below 90% to prevent condensation.
-
The hold-up time for the DKE10B-24 is approximately 10ms, which means the output voltage will remain stable for at least 10ms in the event of an input power failure.
-
Yes, the DKE10B-24 can be paralleled for higher power applications, but it's recommended to consult with Mean Well's technical support team for proper configuration and wiring.
-
The MTBF for the DKE10B-24 is approximately 550,000 hours, calculated according to MIL-HDBK-217F.
