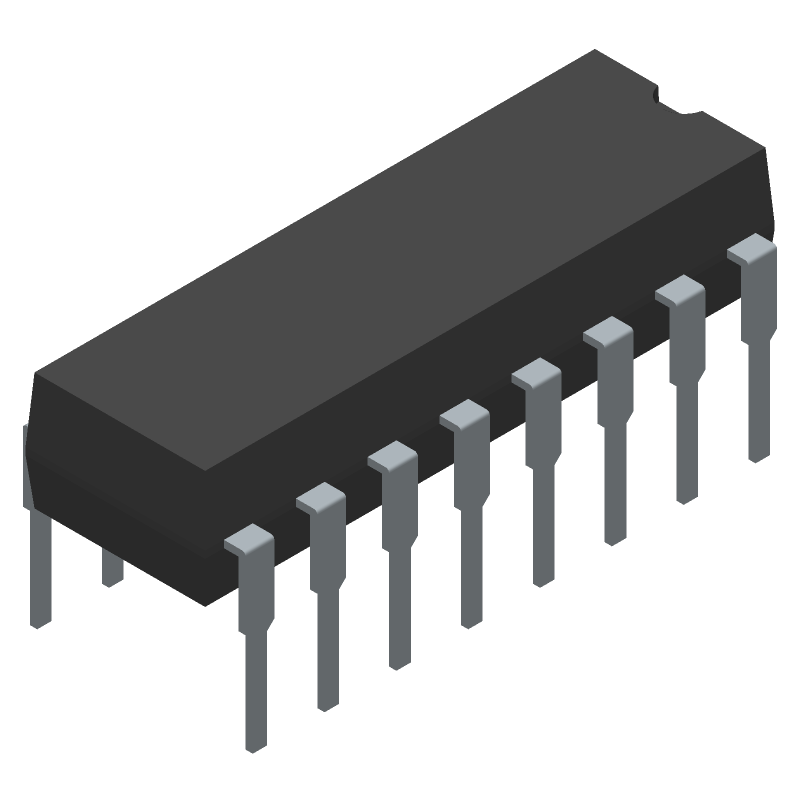

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DG202BDJ-E3 by Vishay Intertechnologies
Results Overview of DG202BDJ-E3 by Vishay Intertechnologies
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Communication and Networking
DG202BDJ-E3 Information
DG202BDJ-E3 by Vishay Intertechnologies is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DG202BDJ-E3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3772620
|
Farnell | ANALOGUE SWITCH, SPST, -40 TO 85DEG C RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 5 |
|
$2.5802 | Buy Now |
|
DISTI #
DG202BDJ-E3
|
Avnet Americas | Analog Switch Quad SPST 16-Pin PDIP - Rail/Tube (Alt: DG202BDJ-E3) RoHS: Not Compliant Min Qty: 500 Package Multiple: 500 Lead time: 111 Weeks, 0 Days Container: Tube | 0 |
|
$1.0464 / $1.0682 | Buy Now |
|
DISTI #
781-DG202BDJ-E3
|
Mouser Electronics | Analog Switch ICs DIP-16 ANALOG SWITCH QUAD RoHS: Compliant | 3912 |
|
$1.1500 / $2.0600 | Buy Now |
|
DISTI #
V99:2348_07476163
|
Arrow Electronics | Analog Switch Quad SPST 16-Pin PDIP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2242 | Americas - 222 |
|
$1.0114 / $1.3893 | Buy Now |
|
DISTI #
65147934
|
Verical | Analog Switch Quad SPST 16-Pin PDIP RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2242 | Americas - 222 |
|
$1.0114 / $1.3893 | Buy Now |
|
DISTI #
69267420
|
Verical | Analog Switch Quad SPST 16-Pin PDIP RoHS: Compliant Min Qty: 32 Package Multiple: 1 Date Code: 2251 | Americas - 120 |
|
$1.1500 / $1.2700 | Buy Now |
|
DISTI #
DG202BDJ-E3
|
TTI | Analog Switch ICs DIP-16 ANALOG SWITCH QUAD RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Tube |
Americas - 1750 In Stock |
|
$1.1100 / $1.2600 | Buy Now |
|
DISTI #
DG202BDJ-E3
|
TME | IC: analog switch, SPST-NO, Ch: 4, DIP16, 7÷22V,13÷36V, tube Min Qty: 1 | 0 |
|
$1.0700 / $2.2200 | RFQ |
|
DISTI #
DG202BDJ-E3
|
EBV Elektronik | Analog Switch Quad SPST 16Pin PDIP (Alt: DG202BDJ-E3) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 9 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for DG202BDJ-E3
DG202BDJ-E3 CAD Models
DG202BDJ-E3 Part Data Attributes
|
|
DG202BDJ-E3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
DG202BDJ-E3
Vishay Intertechnologies
SPST, 4 Func, 1 Channel, CMOS, PDIP16, DIP-16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | DIP-16 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Analog IC - Other Type | SPST | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e3 | |
| Length | 20.13 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -22 V | |
| Neg Supply Voltage-Min (Vsup) | -4.5 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Normal Position | NO | |
| Number of Channels | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 90 dB | |
| On-state Resistance Match-Nom | 2 Ω | |
| On-state Resistance-Max (Ron) | 85 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 22 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Switch-off Time-Max | 200 ns | |
| Switch-on Time-Max | 300 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7.62 mm |
Alternate Parts for DG202BDJ-E3
This table gives cross-reference parts and alternative options found for DG202BDJ-E3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DG202BDJ-E3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DG202BDJ | Temic Semiconductors | Check for Price | SPST, 4 Func, 1 Channel, CMOS, PDIP16, | DG202BDJ-E3 vs DG202BDJ |
DG202BDJ-E3 Frequently Asked Questions (FAQ)
-
The recommended storage temperature for the DG202BDJ-E3 is -40°C to 125°C, as per the datasheet. However, it's essential to note that prolonged storage at high temperatures can affect the device's reliability and lifespan.
-
While the DG202BDJ-E3 is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments. Moisture can affect the device's performance and reliability. If you must use it in a humid environment, ensure proper sealing and conformal coating to prevent moisture ingress.
-
The maximum allowable voltage for the DG202BDJ-E3 is 200V, as specified in the datasheet. Exceeding this voltage can cause permanent damage to the device.
-
To prevent electrostatic discharge (ESD) damage, handle the DG202BDJ-E3 with proper ESD protection measures, such as using an ESD wrist strap, ESD mat, or ESD-safe packaging. Ensure that your workspace and tools are also ESD-safe.
-
The DG202BDJ-E3 is designed for general-purpose switching applications, but it can be used in high-frequency applications up to 100 kHz. However, be aware that high-frequency operation may affect the device's performance, and additional considerations such as parasitic capacitance and inductance may apply.
