Capacitors / Ceramic Capacitors / CGA9P4X7T2W105M250KE
Datasheets
CGA9P4X7T2W105M250KE by: TDK Corporation

Ceramic Capacitor, Multilayer, Ceramic, 450V, 20% +Tol, 20% -Tol, X7T, -33/+22% TC, 1uF, Surface Mount, 2220, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT

Part Details for CGA9P4X7T2W105M250KE by TDK Corporation

Results Overview of CGA9P4X7T2W105M250KE by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Industrial Automation Healthcare Renewable Energy Robotics and Drones

CGA9P4X7T2W105M250KE Information

CGA9P4X7T2W105M250KE by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CGA9P4X7T2W105M250KE

Part # Distributor Description Stock Price Buy
DISTI # 39Y3559
Newark Multilayer Ceramic Capacitor, Aec-Q200 Cga Series, 1 F, 20%, X7T, 450 V, 2220 [5750 Metric] Rohs Compliant: Yes |Tdk CGA9P4X7T2W105M250KE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1287
  • 1 $3.5400
  • 10 $2.5100
  • 25 $2.4100
  • 50 $2.3100
  • 100 $1.9300
  • 250 $1.7600
  • 1,000 $1.5800
$1.5800 / $3.5400 Buy Now
DISTI # 445-7998-1-ND
DigiKey CAP CER 1UF 450V X7T 2220 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 16556
In Stock
  • 1 $3.0400
  • 10 $2.1220
  • 100 $1.6417
  • 500 $1.4788
  • 1,000 $1.3893
  • 1,500 $1.3740
  • 2,500 $1.3542
  • 3,500 $1.3345
  • 5,000 $1.3156
$1.3156 / $3.0400 Buy Now
DISTI # CGA9P4X7T2W105M250KE
Avnet Americas SMD Multilayer Ceramic Capacitor, 1 ?F, 450 V, 2220 [5750 Metric], ? 20%, X7T - Tape and Reel (Alt: CGA9P4X7T2W105M250KE) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 500 $1.1501
  • 1,000 $1.1310
  • 2,000 $1.0939
  • 3,000 $1.0827
  • 4,000 $1.0771
$1.0771 / $1.1501 Buy Now
DISTI # CGA9P4X7T2W105M250KE
Avnet Americas SMD Multilayer Ceramic Capacitor, 1 ?F, 450 V, 2220 [5750 Metric], ? 20%, X7T - Tape and Reel (Alt: CGA9P4X7T2W105M250KE) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 500 $1.2248
  • 1,000 $1.1874
  • 2,000 $1.1501
  • 3,000 $1.1126
  • 4,000 $1.0753
$1.0753 / $1.2248 Buy Now
DISTI # 810-CGA9P4X7T2W105MS
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT SOFT 2220 450V 1uF X7T 20% AEC-Q200 RoHS: Compliant 29479
  • 1 $2.7200
  • 10 $2.1000
  • 100 $1.3200
  • 500 $1.3100
$1.3100 / $2.7200 Buy Now
DISTI # V72:2272_06586335
Arrow Electronics Cap Ceramic 1uF 450V X7T 20% Pad SMD 2220 Soft Termination 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2305 Container: Cut Strips Americas - 3
  • 0 $1.2027
  • 1 $0.6254
$0.6254 / $1.2027 Buy Now
DISTI # CGA9P4X7T2W105M250KE
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT SOFT 2220 450V 1uF X7T 20% AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 28000
In Stock
  • 500 $1.3300
  • 1,000 $1.3000
$1.3000 / $1.3300 Buy Now
DISTI # CGA9P4X7T2W105MKE
TME Capacitor: ceramic, MLCC, 1uF, 450V, X7T, ±20%, SMD, 2220 Min Qty: 500 0
  • 500 $1.2100
  • 5,000 $1.1900
$1.1900 / $1.2100 RFQ
DISTI # CGA9P4X7T2W105M250KE
IBS Electronics CAP CERAMIC 1UF 450V X7T 20% PAD SMD 2220 SOFT TERMINATION 125C AUTOMOTIVE T/R Min Qty: 500 Package Multiple: 1 0
  • 500 $2.5350
$2.5350 Buy Now
DISTI # CGA9P4X7T2W105M250KE
Avnet Abacus SMD Multilayer Ceramic Capacitor 1 F 450 V 2220 5750 Metric 20 X7T - Tape and Reel (Alt: CGA9P4X7T2W105M250KE) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Vyrian Capacitors 10448
RFQ

Part Details for CGA9P4X7T2W105M250KE

CGA9P4X7T2W105M250KE CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

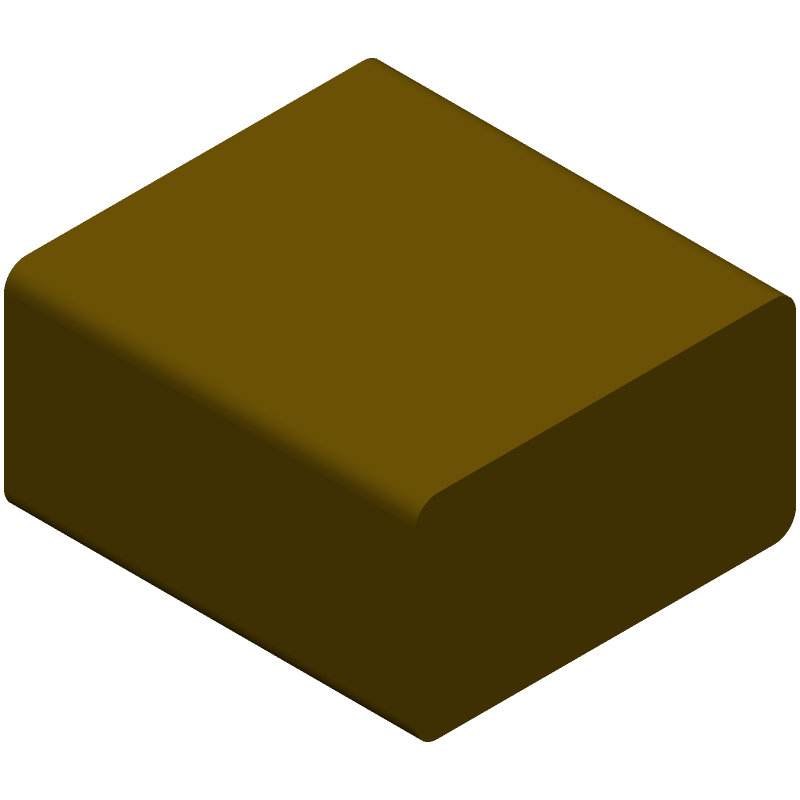

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CGA9P4X7T2W105M250KE Part Data Attributes

Parametric Data
CGA9P4X7T2W105M250KE TDK Corporation
Buy Now Datasheet
Compare Parts:
CGA9P4X7T2W105M250KE TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 450V, 20% +Tol, 20% -Tol, X7T, -33/+22% TC, 1uF, Surface Mount, 2220, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer TDK
Capacitance 1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 2.5 mm
JESD-609 Code e3
Length 5.7 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 INCH
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 450 V
Reference Standard AEC-Q200
Size Code 2220
Surface Mount YES
Temperature Characteristics Code X7T
Temperature Coefficient 22/-33% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 5 mm

CGA9P4X7T2W105M250KE Related Parts

CGA9P4X7T2W105M250KE Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the CGA9P4X7T2W105M250KE is 260°C for 10 seconds or less.

  • Yes, the CGA9P4X7T2W105M250KE is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.

  • The maximum operating temperature for the CGA9P4X7T2W105M250KE is 125°C.

  • Yes, the CGA9P4X7T2W105M250KE is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.

  • The ESR of the CGA9P4X7T2W105M250KE is 50 mΩ or less at 100 MHz.
