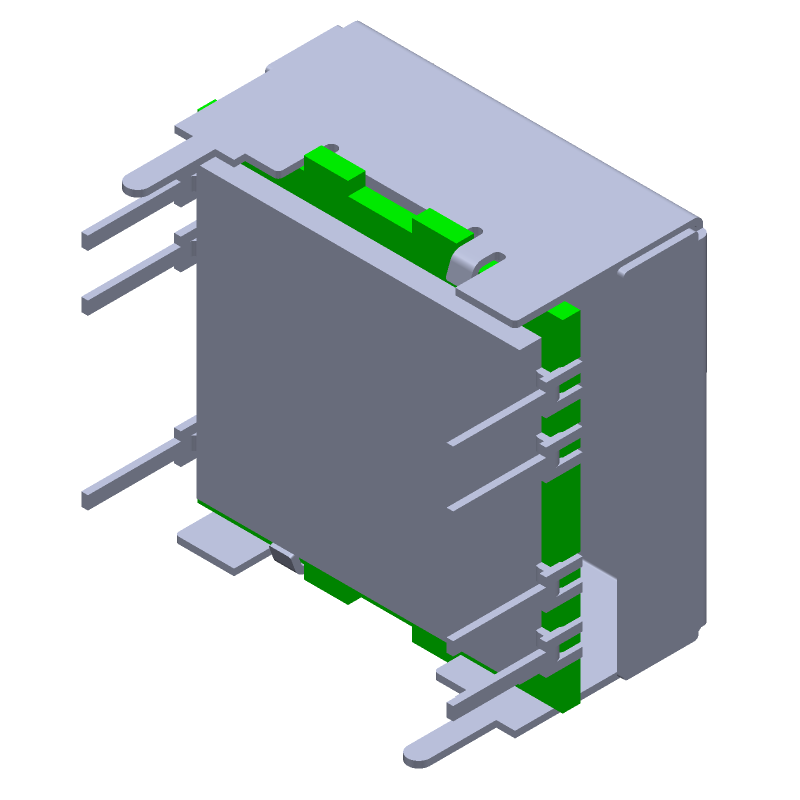

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CC1R5-1212DF-E by TDK-Lambda Corporation
Results Overview of CC1R5-1212DF-E by TDK-Lambda Corporation
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
CC1R5-1212DF-E Information
CC1R5-1212DF-E by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CC1R5-1212DF-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-2454-ND
|
DigiKey | DC DC CNVRTR +/-12V TO +/-15V 1W Min Qty: 1 Lead time: 6 Weeks Container: Tray |
842 In Stock |
|
$9.1400 / $10.7500 | Buy Now |
|
DISTI #
967-CC1R5-1212DF-E
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 1.5W 12V 0.06A RoHS: Compliant | 419 |
|
$9.1400 / $10.7500 | Buy Now |
|
DISTI #
70177147
|
RS | DC-DC Converter, Out -12, +12VDC, In 12VDC, Thru-Hole, Open-Frame, Commercial Min Qty: 10 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$10.8600 | RFQ |
|
|
Onlinecomponents.com | Dual Output DC-DC Converter - 1.5W - Vin: 12V - Vout: ±12 or ±15V - Thru-Hole DIP Package RoHS: Compliant |
25 In Stock |
|
$8.9600 / $11.9400 | Buy Now |
|
DISTI #
76881670
|
Verical | Module DC-DC 12VIN 2-OUT 12V/-12V/15V/-15V 0.06A/-0.06A/0.05A/-0.05A 1.5W 7-Pin PDIP Min Qty: 6 Package Multiple: 1 | Americas - 385 |
|
$5.8200 / $8.5800 | Buy Now |
|
DISTI #
CC1R5-1212DF-E
|
TME | Converter: DC/DC, 1.5W, Uin: 12VDC, Uout: 12VDC, Uout2: -12VDC, DIP7 Min Qty: 1 | 0 |
|
$9.3300 / $9.6500 | RFQ |
|
DISTI #
CC1R5-1212DF-E
|
IBS Electronics | MODULE DC-DC 12VIN 2-OUT 12V/-12V 0.06A 1.5W 7-PIN PDIP Min Qty: 1 Package Multiple: 1 | 25 |
|
$11.6480 / $15.5220 | Buy Now |
|
DISTI #
000000000005398271
|
Sager | Isolated DC/DC Converters - Through Hole 1.5W 12V 0.06A Min Qty: 1 | 10 |
|
$9.1400 / $10.7500 | Buy Now |
|
DISTI #
CC1R5-1212DF-E
|
Chip One Stop | Module DC-DC 12VIN 2-OUT 12V/-12V 0.06A/0.06A 1.5W 7-Pin PDIP RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 385 |
|
$5.0500 / $8.5800 | Buy Now |
|
|
Master Electronics | Dual Output DC-DC Converter - 1.5W - Vin: 12V - Vout: ±12 or ±15V - Thru-Hole DIP Package RoHS: Compliant |
25 In Stock |
|
$8.9600 / $11.9400 | Buy Now |
Part Details for CC1R5-1212DF-E
CC1R5-1212DF-E CAD Models
CC1R5-1212DF-E Part Data Attributes
|
|
CC1R5-1212DF-E
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
CC1R5-1212DF-E
TDK-Lambda Corporation
DC-DC Regulated Power Supply Module, 2 Output, 1.5W, Hybrid, DIP-7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Package Description | DIP-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Additional Feature | ADDITIONAL -12V OUTPUT ALSO AVAILABLE | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-MDMA-T7 | |
| Length | 16.51 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.06 A | |
| Output Voltage-Max | 15 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | METAL | |
| Package Code | DIP | |
| Package Equivalence Code | DIP7/8,1.4,200 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 5.08 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1.5 W | |
| Trim/Adjustable Output | YES | |
| Width | 16.6 mm |
CC1R5-1212DF-E Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the CC1R5-1212DF-E is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
-
To ensure reliability in high-vibration environments, it is recommended to follow the manufacturer's guidelines for mounting and securing the module, and to consider additional mechanical support or potting compounds if necessary.
-
The recommended input capacitance for the CC1R5-1212DF-E is 2x 22μF, 25V, X7R or X5R ceramic capacitors, connected in parallel and placed as close to the input pins as possible.
-
Yes, the CC1R5-1212DF-E can be used in a redundant configuration, but it requires careful consideration of the system design, including the use of diodes or ORing FETs to prevent back-feeding, and ensuring that the modules are synchronized to prevent oscillations.
-
The typical efficiency of the CC1R5-1212DF-E is around 85-90% at full load, depending on the input voltage and operating conditions.
