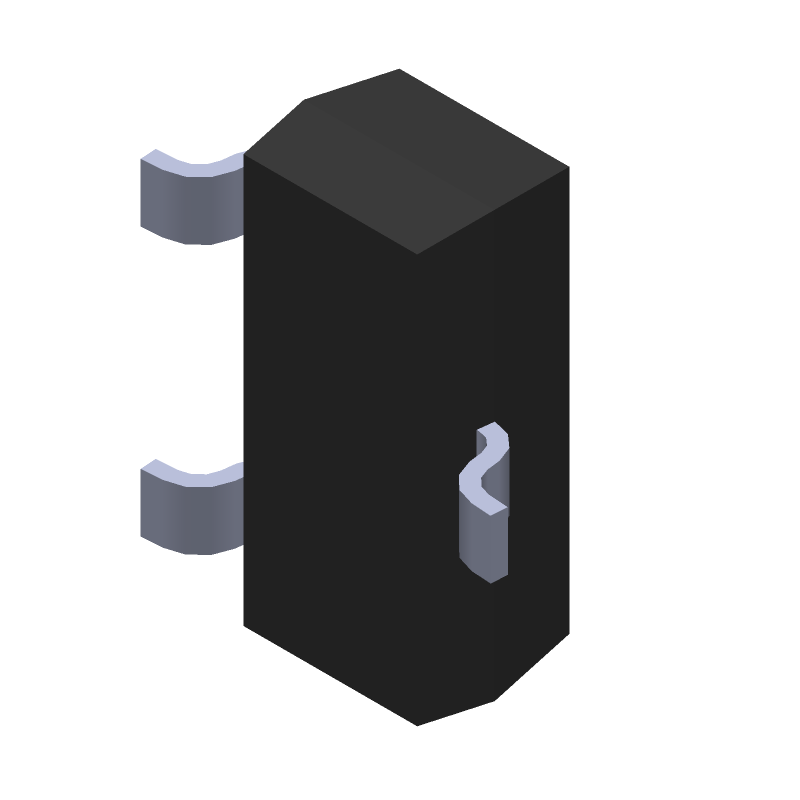

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSS138 by Diodes Incorporated
Results Overview of BSS138 by Diodes Incorporated
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BSS138 Information
BSS138 by Diodes Incorporated is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Part Details for BSS138
BSS138 CAD Models
BSS138 Part Data Attributes
|
|
BSS138
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
BSS138
Diodes Incorporated
Small Signal Field-Effect Transistor, 0.2A I(D), 50V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SOT-23, 3 PIN
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | DIODES INC | |
| Part Package Code | SOT-23 | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Configuration | SINGLE | |
| DS Breakdown Voltage-Min | 50 V | |
| Drain Current-Max (ID) | 0.2 A | |
| Drain-source On Resistance-Max | 3.5 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 8 pF | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e0 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 235 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.225 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Element Material | SILICON |
Alternate Parts for BSS138
This table gives cross-reference parts and alternative options found for BSS138. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BSS138, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LBSS138LT1 | LRC Leshan Radio Co Ltd | Check for Price | Power Field-Effect Transistor, N-Channel, Metal-oxide Semiconductor FET, | BSS138 vs LBSS138LT1 |
| BSS138LT3G | onsemi | $0.0565 | Single N-Channel Logic Level Power MOSFET 50V, 200mA, 3.5Ω, SOT-23 (TO-236) 3 LEAD, 10000-REEL | BSS138 vs BSS138LT3G |
| BSS138/S62Z | Texas Instruments | Check for Price | 220mA, 50V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-236AB | BSS138 vs BSS138/S62Z |
| BSS138TR | Fairchild Semiconductor Corporation | Check for Price | Small Signal Field-Effect Transistor, N-Channel, Metal-oxide Semiconductor FET, | BSS138 vs BSS138TR |
| BSS138 | Vishay Semiconductors | Check for Price | Small Signal Field-Effect Transistor, 0.22A I(D), 50V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-236AB, PLASTIC PACKAGE-3 | BSS138 vs BSS138 |
| BSS138 | National Semiconductor Corporation | Check for Price | TRANSISTOR 220 mA, 50 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-236AB, FET General Purpose Small Signal | BSS138 vs BSS138 |
Resources and Additional Insights for BSS138
Reference Designs related to BSS138
-
15W Qi transmitter for charging smartphones
The 15W wireless power transmitter evaluation module is a high-performance, easy-to-use development kit designed for applications up to 15W of power transfer. It supports an input voltage range of 9-12V and is compatible with QC 3.0 adapters.
BSS138 Frequently Asked Questions (FAQ)
-
The BSS138 can operate from -55°C to 150°C, but the recommended operating temperature range is -40°C to 125°C for optimal performance and reliability.
-
To ensure the BSS138 is fully turned on, the gate-source voltage (Vgs) should be at least 4.5V for a logic-level input, and the drain-source voltage (Vds) should be within the recommended operating range.
-
The maximum current rating for the BSS138 is 1.2A, but it's recommended to derate the current based on the operating temperature and PCB layout to ensure reliable operation.
-
No, the BSS138 is a low-side switch and should not be used as a high-side switch. It's designed to switch the load to ground, not to a positive voltage.
-
To protect the BSS138 from overvoltage and ESD, use a TVS diode or a zener diode in parallel with the device, and ensure the PCB layout follows good ESD protection practices.
