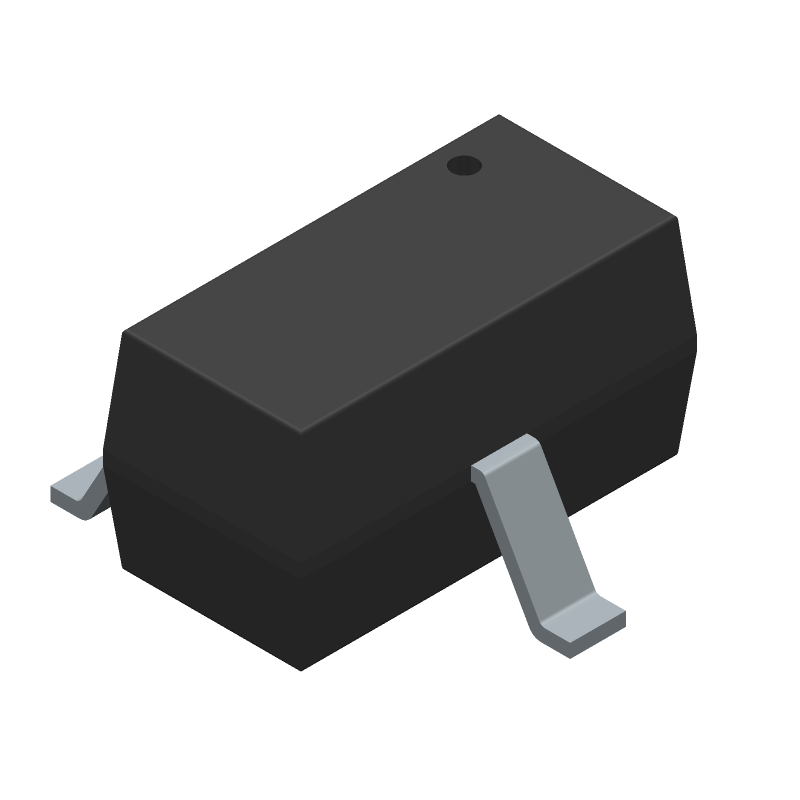

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAW56TT1G by onsemi
Results Overview of BAW56TT1G by onsemi
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
BAW56TT1G Information
BAW56TT1G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAW56TT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AC4841
|
Newark | Switching Diode, 70V, 0.2A, Sot-416, Diode Configuration:Dual Common Anode, Repetitive Reverse Voltage Vrrm Max:70V, Forward Current If(Av):200Ma, Forward Voltage Vf Max:1.25V, Reverse Recovery Time Trr Max:6Ns, Forward Surge Currentrohs Compliant: Yes |Onsemi BAW56TT1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8490 |
|
$0.0430 / $0.1080 | Buy Now |
|
DISTI #
BAW56TT1GOSCT-ND
|
DigiKey | DIODE ARRAY GP 70V 200MA SC75 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
9731 In Stock |
|
$0.0150 / $0.1000 | Buy Now |
|
DISTI #
BAW56TT1G
|
Avnet Americas | Diode Small Signal Switching 70V 0.2A 3-Pin SOT-416 T/R - Tape and Reel (Alt: BAW56TT1G) RoHS: Compliant Min Qty: 48000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 54000 |
|
$0.0132 / $0.0141 | Buy Now |
|
DISTI #
BAW56TT1G
|
Avnet Americas | Diode Small Signal Switching 70V 0.2A 3-Pin SOT-416 T/R - Tape and Reel (Alt: BAW56TT1G) RoHS: Compliant Min Qty: 48000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 174000 Factory Stock |
|
RFQ | |
|
DISTI #
BAW56TT1G
|
Avnet Americas | Diode Small Signal Switching 70V 0.2A 3-Pin SOT-416 T/R - Tape and Reel (Alt: BAW56TT1G) RoHS: Compliant Min Qty: 48000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 174000 Factory Stock |
|
RFQ | |
|
DISTI #
863-BAW56TT1G
|
Mouser Electronics | Small Signal Switching Diodes 70V 200mA RoHS: Compliant | 20633 |
|
$0.0160 / $0.1000 | Buy Now |
|
DISTI #
V72:2272_07317299
|
Arrow Electronics | Diode Small Signal Switching 0.2A 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2212 Container: Cut Strips | Americas - 26300 |
|
$0.1010 / $0.1033 | Buy Now |
|
DISTI #
V79:2366_28710981
|
Arrow Electronics | Diode Small Signal Switching 0.2A 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2209 | Americas - 3000 |
|
$0.0132 / $0.1000 | Buy Now |
|
|
Future Electronics | BAW56TT1G Series 70 V 200 mA Surface Mount Dual Switching Diode - SC-75-3 RoHS: Compliant pbFree: Yes Min Qty: 48000 Package Multiple: 3000 Lead time: 10 Weeks Container: Reel | 0Reel |
|
$0.0139 / $0.0151 | Buy Now |
|
|
Onlinecomponents.com | 70 V Dual Common Anode Switching Diode RoHS: Compliant | 0 |
|
$0.0133 / $0.0164 | Buy Now |
Part Details for BAW56TT1G
BAW56TT1G CAD Models
BAW56TT1G Part Data Attributes
|
|
BAW56TT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
BAW56TT1G
onsemi
70 V Dual Common Anode Switching Diode, SC-75 (SOT-416) 3 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-75 (SOT-416) 3 LEAD | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT, CASE 463-01, SC-75, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 463-01 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Application | GENERAL PURPOSE | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.715 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.5 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.225 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 70 V | |
| Reverse Recovery Time-Max | 0.006 µs | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for BAW56TT1G
This table gives cross-reference parts and alternative options found for BAW56TT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAW56TT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAW56-7-F | Diodes Incorporated | $0.0430 | Rectifier Diode, 2 Element, 0.3A, 75V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3 | BAW56TT1G vs BAW56-7-F |
| BAW56LT3 | onsemi | Check for Price | 70 V Dual Common Anode Switching Diode, SOT-23 (TO-236) 3 LEAD, 10000-REEL | BAW56TT1G vs BAW56LT3 |
| BAW56TT1 | onsemi | Check for Price | 0.2A, 70V, 2 ELEMENT, SILICON, SIGNAL DIODE, CASE 463-01, SC-75, 3 PIN | BAW56TT1G vs BAW56TT1 |
| BAW56LT1G | onsemi | $0.0228 | 70 V Dual Common Anode Switching Diode, SOT-23 (TO-236) 3 LEAD, 3000-REEL | BAW56TT1G vs BAW56LT1G |
| BAW56LT3G | onsemi | $0.0299 | 70 V Dual Common Anode Switching Diode, SOT-23 (TO-236) 3 LEAD, 10000-REEL | BAW56TT1G vs BAW56LT3G |
BAW56TT1G Frequently Asked Questions (FAQ)
-
A good PCB layout for BAW56TT1G involves keeping the leads as short as possible, using a ground plane, and minimizing the distance between the device and the PCB ground. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and avoid exceeding the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink or thermal interface material to reduce thermal resistance.
-
BAW56TT1G has an internal ESD protection diode, but it's still important to follow proper ESD handling procedures during assembly and handling. Use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or container.
-
While BAW56TT1G is primarily designed for linear applications, it can be used in switching applications with some precautions. Ensure that the switching frequency is within the recommended range, and consider adding a snubber circuit to reduce voltage spikes and ringing.
-
The correct resistor values for BAW56TT1G depend on the specific application and desired performance. As a general guideline, use resistors with a tolerance of 1% or better, and consider the voltage drop across the resistor when selecting the value. Consult the datasheet and application notes for more information.
