BA9741FS-E2 Information
BA9741FS-E2 by ROHM Semiconductor is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BA9741FS-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BA9741FS-E2TR-ND
|
DigiKey | IC REG CTRLR BUCK/BOOST 16SSOP Min Qty: 2500 Lead time: 7 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.0789 | Buy Now |
|
DISTI #
755-BA9741FS-E2
|
Mouser Electronics | Switching Controllers CTRL REG 2CH RoHS: Compliant | 0 |
|
$1.9000 | Order Now |
|
DISTI #
85949891
|
Verical | DC/DC Cntrlr Dual-OUT Step Down/Step Up 800kHz 16-Pin SSOP-A T/R RoHS: Compliant Min Qty: 31 Package Multiple: 1 | Americas - 100 |
|
$1.1900 / $1.5000 | Buy Now |
|
DISTI #
36526163
|
Verical | DC/DC Cntrlr Dual-OUT Step Down/Step Up 800kHz 16-Pin SSOP-A T/R RoHS: Compliant Min Qty: 32 Package Multiple: 1 | Americas - 32 |
|
$2.3557 | Buy Now |
|
DISTI #
BA9741FS-E2
|
Avnet Silica | DC DC Cntrlr DualOUT Step UpStep Down 16Pin SSOPA TR (Alt: BA9741FS-E2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BA9741FS-E2

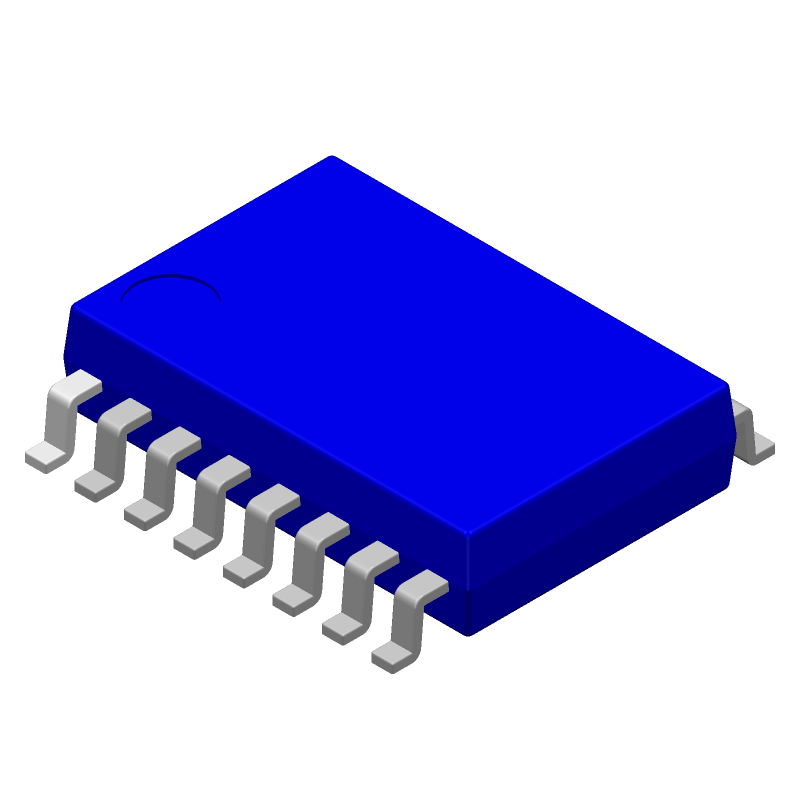

BA9741FS-E2 CAD Models
BA9741FS-E2 Part Data Attributes
|
|
BA9741FS-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA9741FS-E2
ROHM Semiconductor
Dual Switching Controller, Voltage-mode, 0.12A, 800kHz Switching Freq-Max, BIPolar, PDSO16, ROHS COMPLIANT, SSOP-16
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 35 V | |
| Input Voltage-Min | 3.6 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 6.6 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.12 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SOP16,.25,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 800 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4.4 mm |
