ATMEGA16L-8MU by:

IC MCU 8BIT 16KB FLASH 44VQFN

Part Details for ATMEGA16L-8MU by Microchip Technology Inc

Results Overview of ATMEGA16L-8MU by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ATMEGA16L-8MU Information

ATMEGA16L-8MU by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATMEGA16L-8MU

Part # Distributor Description Stock Price Buy
DISTI # 81AC2280
Newark Mcu, 8Bit, Atmega, 8Mhz, Vqfn-44, Product Range:Avr Atmega Family Atmega16 Series Microcontrollers, Cpu Speed:8Mhz, Program Memory Size:16Kb, Ram Memory Size:1Kb, No. Of Pins:44Pins, Mcu Case Style:Vqfn, No. Of I/O S:32I/O S, Rohs Compliant: Yes |Microchip ATMEGA16L-8MU RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $6.2500
  • 10 $6.0000
  • 25 $5.7400
  • 50 $5.6300
  • 100 $5.5300
$5.5300 / $6.2500 Buy Now
DISTI # ATMEGA16L-8MU
Avnet Americas 8 Bit MCU, AVR ATmega Family ATmega16 Series Microcontrollers, AVR, 8 MHz, 16 KB, 44 Pins, VQFN - Trays (Alt: ATMEGA16L-8MU) RoHS: Compliant Min Qty: 360 Package Multiple: 360 Lead time: 4 Weeks, 0 Days Container: Tray 0
  • 1 $6.2500
  • 25 $5.7400
  • 100 $5.1900
$5.1900 / $6.2500 Buy Now
DISTI # 556-ATMEGA16L-8MU
Mouser Electronics 8-bit Microcontrollers - MCU 16kB Flash 0.5kB EEPROM 32 I/O Pins RoHS: Compliant 258
  • 1 $6.2500
  • 10 $6.2300
  • 25 $5.7400
  • 100 $5.5200
$5.5200 / $6.2500 Buy Now
Onlinecomponents.com MCU - 8-bit AVR RISC - 16KB Flash - 3.3V/5V - 44-Pin VQFN EP - Tray RoHS: Compliant 355 In Stock
5040 Factory Stock
  • 5 $6.4400
  • 25 $5.6900
  • 50 $5.6300
  • 90 $5.4900
  • 180 $5.3900
  • 270 $5.3600
  • 360 $5.3300
$5.3300 / $6.4400 Buy Now
DISTI # 68373729
Verical MCU 8-bit AVR RISC 16KB Flash 3.3V/5V 44-Pin VQFN EP Tray RoHS: Compliant Min Qty: 10 Package Multiple: 5 Americas - 355
  • 10 $7.5765
  • 25 $6.6941
  • 50 $6.6235
  • 90 $6.4588
  • 180 $6.3412
$6.3412 / $7.5765 Buy Now
DISTI # 77372288
Verical MCU 8-bit AVR RISC 16KB Flash 3.3V/5V 44-Pin VQFN EP Tray RoHS: Compliant Min Qty: 69 Package Multiple: 69 Americas - 69
  • 69 $11.8709
$11.8709 Buy Now
DISTI # ATMEGA16L-8MU
TME IC: AVR microcontroller, VQFN44, 2.7÷5.5VDC, Ext.inter: 3, Cmp: 1 Min Qty: 1 0
  • 1 $7.6000
  • 5 $6.9900
  • 25 $6.4800
  • 100 $6.2400
$6.2400 / $7.6000 RFQ
NAC 8MHZ, MLF, IND TEMP, GREEN - Package: 44 VQFN 7x7x1mm TRAY RoHS: Compliant Min Qty: 360 Package Multiple: 360 Container: Tray 0
  • 1 $6.5000
  • 100 $5.8900
  • 500 $5.5200
  • 1,000 $5.3900
$5.3900 / $6.5000 Buy Now
DISTI # ATMEGA16L-8MU
Avnet Silica 8 Bit MCU AVR ATmega Family ATmega16 Series Microcontrollers AVR 8 MHz 16 KB 44 Pins VQFN (Alt: ATMEGA16L-8MU) RoHS: Compliant Min Qty: 360 Package Multiple: 360 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # ATMEGA16L-8MU
EBV Elektronik 8 Bit MCU AVR ATmega Family ATmega16 Series Microcontrollers AVR 8 MHz 16 KB 44 Pins VQFN (Alt: ATMEGA16L-8MU) RoHS: Compliant Min Qty: 360 Package Multiple: 360 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU - 8-bit AVR RISC - 16KB Flash - 3.3V/5V - 44-Pin VQFN EP - Tray RoHS: Compliant 355 In Stock
5040 Factory Stock
  • 5 $6.4400
  • 25 $5.6900
  • 50 $5.6300
  • 90 $5.4900
  • 180 $5.3900
  • 270 $5.3600
  • 360 $5.3300
$5.3300 / $6.4400 Buy Now

Part Details for ATMEGA16L-8MU

ATMEGA16L-8MU CAD Models

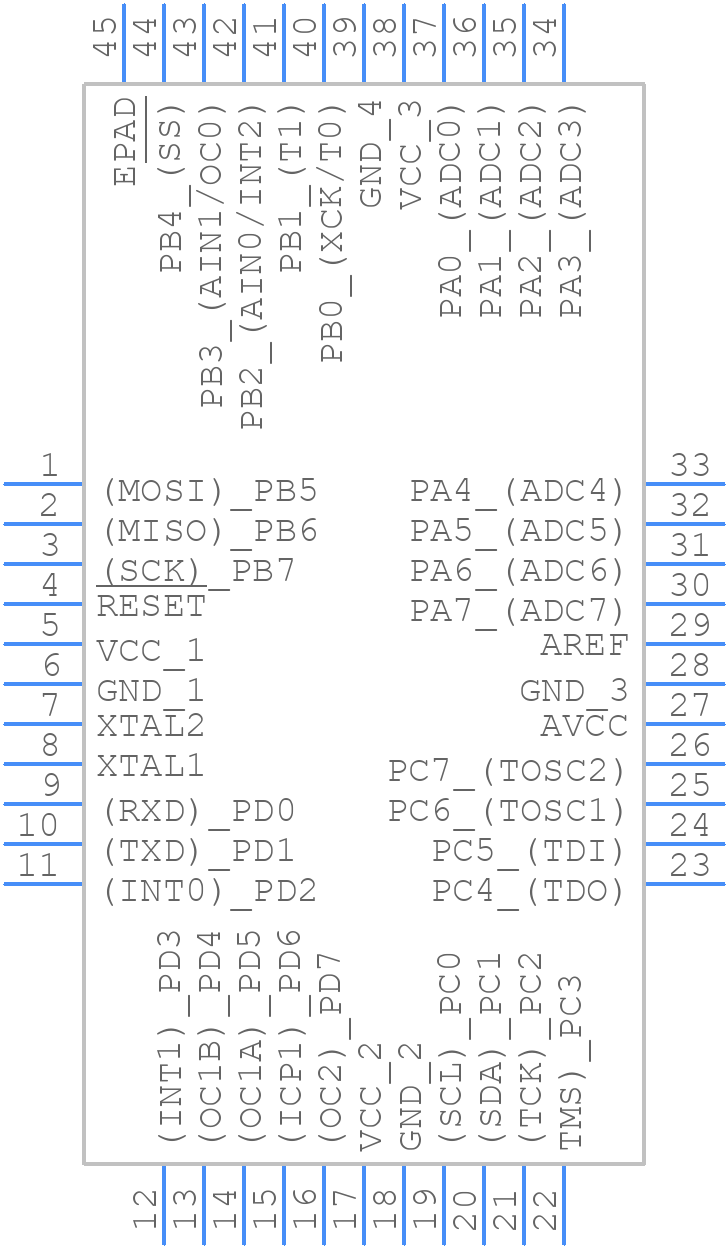

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ATMEGA16L-8MU Part Data Attributes

Parametric Data
ATMEGA16L-8MU Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
ATMEGA16L-8MU Microchip Technology Inc IC MCU 8BIT 16KB FLASH 44VQFN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description VQFN-44
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family AVR RISC
Clock Frequency-Max 8 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-N44
JESD-609 Code e3
Length 7 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of External Interrupts 3
Number of I/O Lines 32
Number of Serial I/Os 1
Number of Terminals 44
Number of Timers 3
On Chip Data RAM Width 8
On Chip Program ROM Width 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC44,.28SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Qualification Status Not Qualified
RAM (bytes) 1024
ROM (words) 8192
ROM Programmability FLASH
Seated Height-Max 1 mm
Speed 8 MHz
Supply Current-Max 5 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for ATMEGA16L-8MU

This table gives cross-reference parts and alternative options found for ATMEGA16L-8MU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATMEGA16L-8MU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ATMEGA16L-8MU-SL383 Atmel Corporation Check for Price Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 8MHz, CMOS, PQCC44, 7 X 7 MM, 1 MM HEIGHT, 0.50 MM PITCH, GREEN, PLASTIC, MO-220VKKD-3, VQFN-44 ATMEGA16L-8MU vs ATMEGA16L-8MU-SL383
ATMEGA16L-8MC Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 8MHz, CMOS, 7 X 7 MM, 1 MM HEIGHT, 0.50 MM PITCH, MO-220VKKD-3, MLF-44 ATMEGA16L-8MU vs ATMEGA16L-8MC
Part Number Manufacturer Composite Price Description Compare
ATMEGA16L-8MI Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 8MHz, CMOS, 7 X 7 MM, 1 MM HEIGHT, 0.50 MM PITCH, MO-220VKKD-3, MLF-44 ATMEGA16L-8MU vs ATMEGA16L-8MI
ATMEGA16L-8ML Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, 8MHz, CMOS, 7 X 7 MM, 1 MM HEIGHT, 0.50 MM PITCH, MO-220VKKD-3, MLF-44 ATMEGA16L-8MU vs ATMEGA16L-8ML
ATMEGA16L-8MU Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 8MHz, CMOS, PQCC44, 7 X 7 MM, 1 MM HEIGHT, 0.50 MM PITCH, GREEN, PLASTIC, MO-220VKKD-3, VQFN-44 ATMEGA16L-8MU vs ATMEGA16L-8MU
ATMEGA16L-8PC Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 8MHz, CMOS, PDIP40, 0.600 INCH, PLASTIC, MS-011AC, DIP-40 ATMEGA16L-8MU vs ATMEGA16L-8PC
ATMEGA16L-8PL Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, 8MHz, CMOS, PDIP40, 0.600 INCH, PLASTIC, MS-011AC, DIP-40 ATMEGA16L-8MU vs ATMEGA16L-8PL
S3F8235-ET IXYS Corporation Check for Price Microcontroller, 8-Bit, FLASH, 8MHz, CMOS, PQFP64, 10 X 10 MM, LQFP-64 ATMEGA16L-8MU vs S3F8235-ET
ATMEGA16L-8AI Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 8MHz, CMOS, PQFP44, 10 X 10 MM, 1 MM HEIGHT, 0.80 MM PITCH, PLASTIC, MS-026ACB, TQFP-44 ATMEGA16L-8MU vs ATMEGA16L-8AI
ATMEGA16L-8AC Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 8MHz, CMOS, PQFP44, 10 X 10 MM, 1 MM HEIGHT, 0.80 MM PITCH, PLASTIC, MS-026ACB, TQFP-44 ATMEGA16L-8MU vs ATMEGA16L-8AC
ATMEGA16L-8AUR Atmel Corporation Check for Price RISC Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 8MHz, CMOS, PQFP44, 10 X 10 MM, 1 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, MS-026ACB, TQFP-44 ATMEGA16L-8MU vs ATMEGA16L-8AUR
ATMEGA16L-8AURA5 Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 8MHz, CMOS, PQFP44 ATMEGA16L-8MU vs ATMEGA16L-8AURA5

ATMEGA16L-8MU Related Parts

ATMEGA16L-8MU Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the ATMEGA16L-8MU is 8 MHz.

  • The ATMEGA16L-8MU has 16 KB of flash memory.

  • The operating voltage range for the ATMEGA16L-8MU is 4.5V to 5.5V.

  • Yes, the ATMEGA16L-8MU has 512 bytes of built-in EEPROM.

  • The maximum current consumption of the ATMEGA16L-8MU is 15 mA at 5V and 8 MHz.
