Part Details for ADM2486BRWZ-REEL by Analog Devices Inc
Results Overview of ADM2486BRWZ-REEL by Analog Devices Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADM2486BRWZ-REEL Information
ADM2486BRWZ-REEL by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LMX2325TMX-G | Rochester Electronics LLC | LMX2325 - RoHS - T/R, PLL Freq Synthesizer | |
| HSCHD02CR2001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Brown housing | |
| HSCHD02BR1001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Blue housing |
Price & Stock for ADM2486BRWZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9279
|
Newark | Transceiver, Rs422, Rs485, 1Tx, 1Rx, Ic Type:Isolated Rs422/Rs485 Transceiver, No. Of Receivers:1Receivers, No. Of Transmitters:1, Communication Mode:Half Duplex, Data Rate Max:20Mbps, Supply Voltage Min:2.7V, No. Of Pins:16Pins Rohs Compliant: Yes |Analog Devices ADM2486BRWZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 137 |
|
$5.2800 / $10.1500 | Buy Now |
|
DISTI #
ADM2486BRWZ-REELCT-ND
|
DigiKey | DG ISO 2.5KV 3CH RS422 16-SOIC Min Qty: 1 Lead time: 39 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1635 In Stock |
|
$5.2750 / $11.1100 | Buy Now |
|
DISTI #
584-ADM2486BRWZ-R
|
Mouser Electronics | Digital Isolators Isolated HighSpeed RS-485 Transciever RoHS: Compliant | 4996 |
|
$5.5000 / $9.6100 | Buy Now |
|
DISTI #
E54:1762_00116718
|
Arrow Electronics | Single Transmitter/Receiver RS-485 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks Date Code: 2510 | Europe - 12000 |
|
$5.6640 | Buy Now |
|
DISTI #
V72:2272_06219605
|
Arrow Electronics | Single Transmitter/Receiver RS-485 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2301 Container: Cut Strips | Americas - 130 |
|
$5.6640 / $7.3990 | Buy Now |
|
|
Analog Devices Inc | Isolated HighSpeed RS-485 Tran Min Qty: 1 Package Multiple: 1000 | 20327 |
|
$5.2750 / $11.1100 | Buy Now |
|
DISTI #
26902698
|
Verical | Single Transmitter/Receiver RS-485 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 30000 |
|
$5.3082 | Buy Now |
|
DISTI #
88121394
|
Verical | Single Transmitter/Receiver RS-485 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2510 | Americas - 12000 |
|
$11.4017 | Buy Now |
|
DISTI #
66352480
|
Verical | Single Transmitter/Receiver RS-485 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2301 | Americas - 130 |
|
$5.6640 / $7.3990 | Buy Now |
|
DISTI #
ADM2486BRWZ-REEL
|
TME | IC: interface, digital isolator,transceiver, RS422 / RS485 Min Qty: 1 | 338 |
|
$3.5000 / $5.0000 | Buy Now |
Part Details for ADM2486BRWZ-REEL

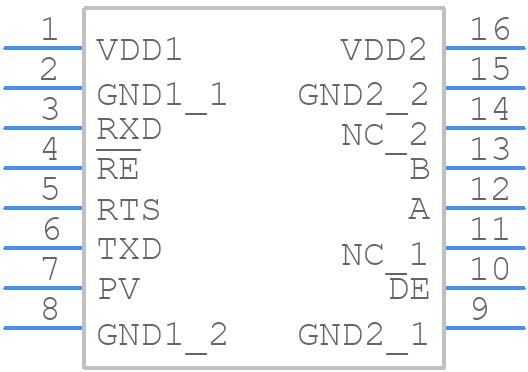

ADM2486BRWZ-REEL CAD Models
ADM2486BRWZ-REEL Part Data Attributes
|
|
ADM2486BRWZ-REEL
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM2486BRWZ-REEL
Analog Devices Inc
2.5 kV Signal Isolated, High Speed (20 Mbps), Half Duplex RS-485 Transceiver
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MS-013AA, SOIC-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RW-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| High Level Input Current-Max | 0.00001 A | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-485-A; TIA-485-A; ISO 8482E | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 2.1 V | |
| Output Low Current-Max | 0.004 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 55 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3 V | |
| Supply Voltage1-Max | 5.25 V | |
| Supply Voltage1-Min | 4.75 V | |
| Supply Voltage1-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 55 ns | |
| Width | 7.5 mm |
