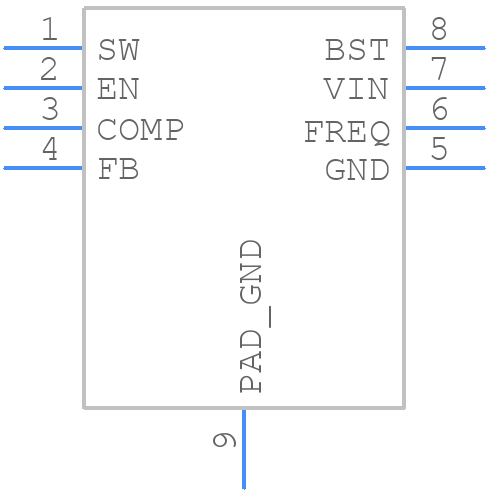

Part Symbol
-

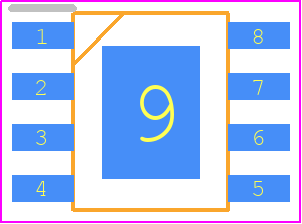

Footprint
-

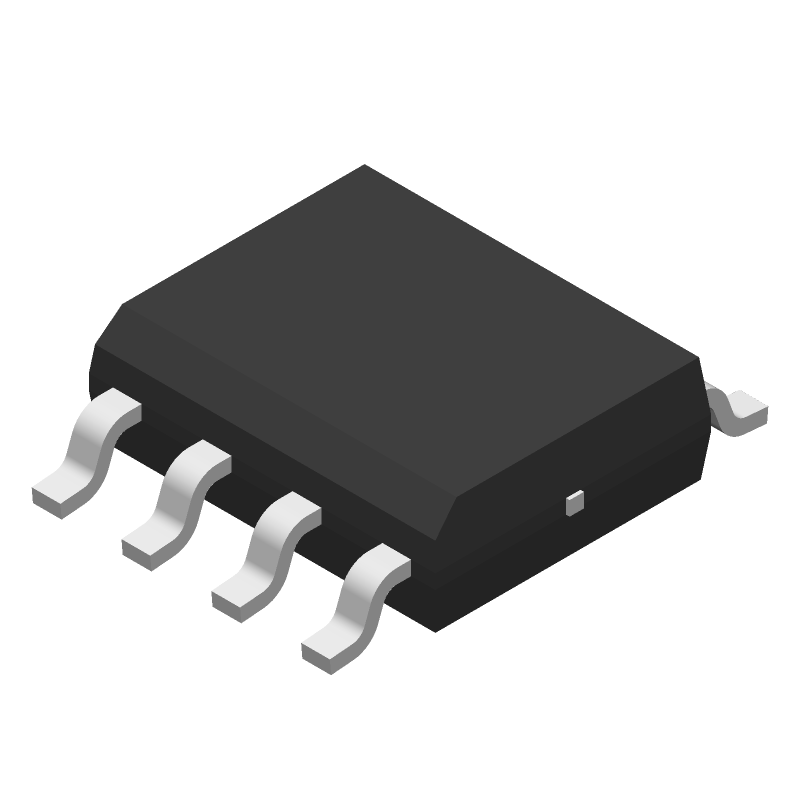

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for A8586KLJTR-T-1 by Allegro MicroSystems LLC
Results Overview of A8586KLJTR-T-1 by Allegro MicroSystems LLC
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
A8586KLJTR-T-1 Information
A8586KLJTR-T-1 by Allegro MicroSystems LLC is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for A8586KLJTR-T-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
250-A8586KLJTR-T-1
|
Mouser Electronics | Switching Voltage Regulators WIDE INPUT VOLTAGE ADJ FREQUENCY 3.5 AMP BUCK REG RoHS: Compliant | 5559 |
|
$0.9130 / $1.8500 | Buy Now |
|
|
Future Electronics | WIDE INPUT VOLTAGE ADJ FREQUENCY 3.5 AMP BUCK REG RoHS: Not Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks Container: Reel | 3000Reel |
|
$0.7750 | Buy Now |
|
|
Future Electronics | WIDE INPUT VOLTAGE ADJ FREQUENCY 3.5 AMP BUCK REG Min Qty: 3000 Package Multiple: 3000 |
3000 null |
|
$0.7750 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 6000 |
|
$1.1900 / $1.2900 | Buy Now |
Part Details for A8586KLJTR-T-1
A8586KLJTR-T-1 CAD Models
A8586KLJTR-T-1 Part Data Attributes
|
|
A8586KLJTR-T-1
Allegro MicroSystems LLC
Buy Now
Datasheet
|
Compare Parts:
A8586KLJTR-T-1
Allegro MicroSystems LLC
Switching Regulator, Current-mode, 2400kHz Switching Freq-Max, PDSO8, SOIC-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ALLEGRO MICROSYSTEMS LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Allegro Microsystems | |
| Additional Feature | OUTPUT VOLTAGE RANGE FROM 0.8 V TO 30 V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 3.8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE | |
| Seated Height-Max | 1.7 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 2400 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
A8586KLJTR-T-1 Frequently Asked Questions (FAQ)
-
Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity.
-
To ensure accurate current sensing, use a low-impedance current sense resistor (RSENSE) and ensure the PCB layout minimizes parasitic inductance and resistance. Also, calibrate the device according to the datasheet's calibration procedure.
-
The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
-
The A8586KLJTR-T-1 is rated for operation up to 150°C. However, the device's accuracy and reliability may degrade at high temperatures. Consult Allegro's application notes for thermal management guidelines.
-
Consult Allegro's troubleshooting guide and application notes for common issues and solutions. Also, verify the device's configuration, PCB layout, and component selection to ensure correct operation.
