T9AS5D22-24 by: TE Connectivity

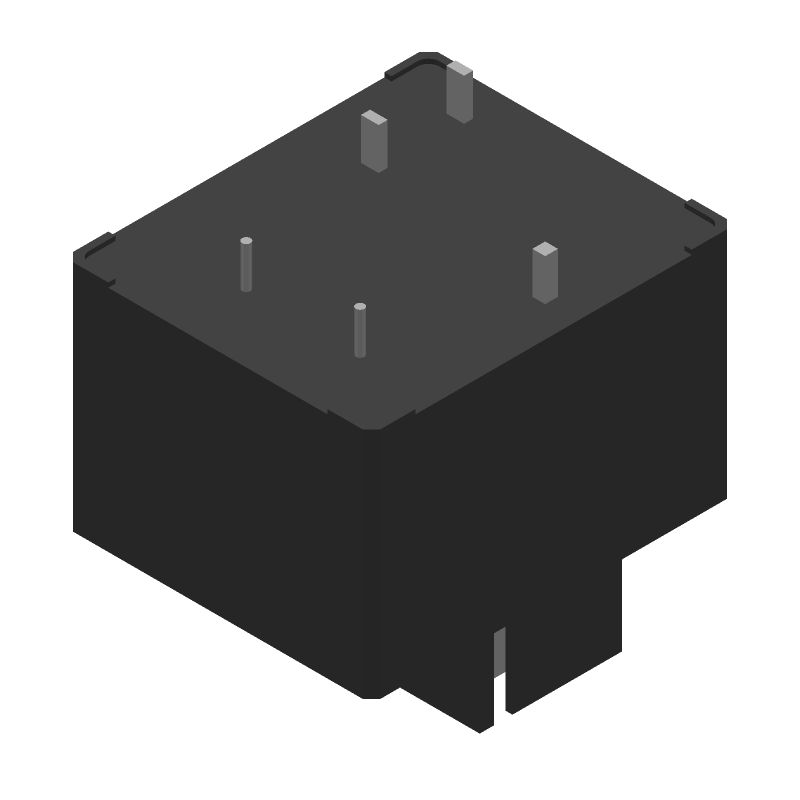

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.042A (COIL), 24VDC (COIL), 2800mW (COIL), 10A (CONTACT), 28VDC (CONTACT), PANEL MOUNT, ROHS COMPLIANT

Part Details for T9AS5D22-24 by TE Connectivity

Results Overview of T9AS5D22-24 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

T9AS5D22-24 Information

T9AS5D22-24 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for T9AS5D22-24

Part # Distributor Description Stock Price Buy
DISTI # 92F3739
Newark Relay, Spdt, 240Vac, 28Vdc, 30A, Contact Configuration:Spdt, Coil Voltage:24Vdc, Contact Current:20A, Product Range:T9A Series, Relay Mounting:Through Hole, Coil Type:Non Latching, Contact Voltage Vac:277V, Relay Terminals:Solder Rohs Compliant: Yes |Te Connectivity T9AS5D22-24 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 5
  • 1 $5.4700
  • 10 $5.4700
  • 25 $5.0500
  • 50 $5.0500
  • 100 $5.0500
  • 250 $5.0500
$5.0500 / $5.4700 Buy Now
DISTI # PB309-ND
DigiKey RELAY GEN PURPOSE SPDT 20A 24V Min Qty: 1 Lead time: 22 Weeks Container: Bulk 6664
In Stock
  • 1 $6.2400
  • 10 $5.5600
  • 25 $5.3096
  • 50 $5.1276
  • 100 $4.9517
  • 250 $4.7282
  • 500 $4.5657
  • 1,000 $4.4088
$4.4088 / $6.2400 Buy Now
DISTI # 92F3739
Avnet Americas Electromechanical Relay SPDT 20(NO)/10(NC)A 24VDC 576Ohm Through Hole - Bulk (Alt: 92F3739) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 28 Weeks, 6 Days Container: Bulk 5 Partner Stock
  • 1 $8.5200
  • 10 $6.8200
  • 25 $6.5100
  • 50 $6.2000
  • 100 $5.9500
$5.9500 / $8.5200 Buy Now
DISTI # 3-1419104-6
Avnet Americas Electromechanical Relay SPDT 20(NO)/10(NC)A 24VDC 576Ohm Through Hole - Bulk (Alt: 3-1419104-6) RoHS: Compliant Min Qty: 1000 Package Multiple: 500 Lead time: 19 Weeks, 3 Days Container: Bulk 0
  • 1,000 $3.9048
  • 2,000 $3.8739
  • 3,000 $3.8443
  • 5,000 $3.1984
  • 10,000 $2.8389
$2.8389 / $3.9048 Buy Now
DISTI # 655-T9AS5D22-24
Mouser Electronics General Purpose Relays SPDT PC MOUNT 24VDC RoHS: Compliant 886
  • 1 $6.2400
  • 10 $5.0500
  • 50 $4.8200
  • 100 $4.6200
  • 250 $4.4900
  • 500 $4.2500
$4.2500 / $6.2400 Buy Now
Onlinecomponents.com Power Relay 24VDC 20(NO)/10(NC)A SPDT(32.51mm 27.43mm 27.94mm) THT RoHS: Compliant 5661 In Stock
  • 5 $6.1290
  • 25 $5.1720
  • 100 $4.7260
  • 250 $4.5760
  • 500 $4.4540
  • 1,000 $4.3010
  • 2,500 $4.2800
  • 5,000 $4.2580
$4.2580 / $6.1290 Buy Now
Bristol Electronics   Min Qty: 1 158
  • 1 $5.6000
  • 6 $3.6400
  • 15 $2.8000
  • 46 $2.6135
  • 97 $2.4265
$2.4265 / $5.6000 Buy Now
Quest Components POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.042A (COIL), 24VDC (COIL), 2800MW (COIL), 10A (CONTACT), 28VDC (CONTACT), DC INPUT, AC/DC OUTPUT, PANEL MOUNT 126
  • 1 $7.5000
  • 6 $3.7500
  • 54 $3.5000
$3.5000 / $7.5000 Buy Now
Quest Components POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.042A (COIL), 24VDC (COIL), 2800MW (COIL), 10A (CONTACT), 28VDC (CONTACT), DC INPUT, AC/DC OUTPUT, PANEL MOUNT 126
  • 1 $7.5000
  • 6 $3.7500
  • 54 $3.5000
$3.5000 / $7.5000 Buy Now
Quest Components POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.042A (COIL), 24VDC (COIL), 2800MW (COIL), 10A (CONTACT), 28VDC (CONTACT), DC INPUT, AC/DC OUTPUT, PANEL MOUNT 16
  • 1 $8.4375
  • 5 $6.1875
  • 13 $5.6250
$5.6250 / $8.4375 Buy Now
Quest Components POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.042A (COIL), 24VDC (COIL), 2800MW (COIL), 10A (CONTACT), 28VDC (CONTACT), DC INPUT, AC/DC OUTPUT, PANEL MOUNT 1
  • 1 $4.0800
$4.0800 Buy Now
DISTI # 3-1419104-6
TTI General Purpose Relays T9AS5D22-24 Min Qty: 1 Package Multiple: 1 Container: Bulk Americas - 1148
In Stock
Buy Now
DISTI # 3-1419104-6
TTI General Purpose Relays T9AS5D22-24 Min Qty: 1 Package Multiple: 1 Container: Bulk Americas - 1148
In Stock
Buy Now
DISTI # T9AS5D22-24
TME Relay: electromagnetic, SPDT, Ucoil: 24VDC, 20A, Ucoil min: 18VDC Min Qty: 1 68
  • 1 $9.8000
  • 5 $8.0100
  • 25 $7.1200
  • 100 $6.7200
  • 500 $5.9200
$5.9200 / $9.8000 Buy Now
Master Electronics Power Relay 24VDC 20(NO)/10(NC)A SPDT(32.51mm 27.43mm 27.94mm) THT RoHS: Compliant 5661 In Stock
  • 5 $6.1290
  • 25 $5.1720
  • 100 $4.7260
  • 250 $4.5760
  • 500 $4.4540
  • 1,000 $4.3010
  • 2,500 $4.2800
  • 5,000 $4.2580
$4.2580 / $6.1290 Buy Now

Part Details for T9AS5D22-24

T9AS5D22-24 Part Data Attributes

Parametric Data
T9AS5D22-24 TE Connectivity
Buy Now Datasheet
Compare Parts:
T9AS5D22-24 TE Connectivity POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.042A (COIL), 24VDC (COIL), 2800mW (COIL), 10A (CONTACT), 28VDC (CONTACT), PANEL MOUNT, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description ROHS COMPLIANT
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.41.00.50
Factory Lead Time 28 Weeks, 6 Days
Samacsys Manufacturer TE Connectivity
Body Breadth 27.4 mm
Body Height 27.9 mm
Body Length or Diameter 32.5 mm
Coil Current(AC)-Max 0.042 A
Coil Current(DC)-Max 0.042 A
Coil Operate Voltage(DC) 18 V
Coil Power 1000 mW
Coil Release Voltage(DC) 2.4 V
Coil Resistance 576 Ω
Coil Voltage(DC)-Max 24 V
Coil/Input Supply Type DC
Contact (AC) Max Rating R Load 20A@240VAC
Contact Current(AC)-Max 20 A
Contact Current(DC)-Max 20 A
Contact (DC) Max Rating R Load 10A@28VDC
Contact Voltage(AC)-Max 277 V
Contact Voltage(DC)-Max 28 V
Contact/Output Supply Type AC/DC
Dielectric Strength Between Coil and Contacts 2500 Vrms
Dielectric Strength Between Open Contacts 1500 Vrms
Electrical Life 100000 Cycle(s)
End Contact Material SILVER CADMIUM OXIDE
Insulation Resistance 1000000000 Ω
Mounting Feature PANEL MOUNT
Operate Time 15 ms
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Packing Method BOX; TRAY
Physical Dimension 32.51mm x 27.43mm x 27.94mm
Reference Standard CSA; UL
Relay Action MOMENTARY
Relay Form 1 FORM C
Relay Function SPDT
Relay Type POWER/SIGNAL RELAY
Release Time 15 ms
Sealing SEALED TYPE
Surface Mount NO
Termination Type SOLDER/QUICK CONNECT
Weight 33 g
