Relays / Reed Relays / SIL05-1A72-71D
Datasheets

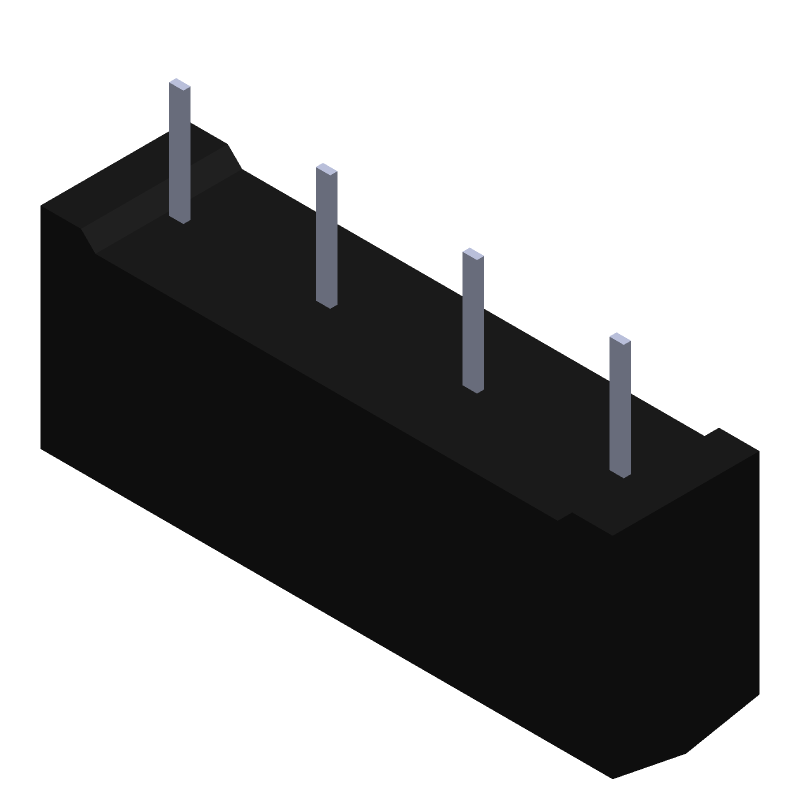

SIL05-1A72-71D by: Standex-Meder Electronics

Dry Reed Relay, SPST, Momentary, 0.01A (Coil), 5VDC (Coil), 50mW (Coil), 1A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,

Part Details for SIL05-1A72-71D by Standex-Meder Electronics

Results Overview of SIL05-1A72-71D by Standex-Meder Electronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SIL05-1A72-71D Information

SIL05-1A72-71D by Standex-Meder Electronics is a Reed Relay.
Reed Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for SIL05-1A72-71D

Part # Distributor Description Stock Price Buy
DISTI # 97K9760
Newark Relay, Reed, Spst-No, 200V, 1A, Tht, Contact Configuration:Spst-No, Coil Voltage:5Vdc, Product Range:Sil Series, Relay Mounting:Through Hole, Coil Resistance:500Ohm, Switching Current Max:1A, Switching Voltage Max:200V Rohs Compliant: Yes |Standexmeder SIL05-1A72-71D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 13926
  • 1 $3.5200
  • 10 $3.1600
  • 25 $2.9100
  • 50 $2.8100
  • 100 $2.7000
  • 250 $2.5800
  • 500 $2.4900
  • 1,000 $2.4800
$2.4800 / $3.5200 Buy Now
DISTI # 374-1113-ND
DigiKey RELAY REED SPST 0.5A 5V Min Qty: 1 Lead time: 11 Weeks Container: Tube 561
In Stock
  • 1 $3.4100
  • 10 $3.0420
  • 25 $2.9048
  • 50 $2.8054
  • 100 $2.7092
  • 250 $2.5870
  • 500 $2.4982
  • 1,000 $2.4124
$2.4124 / $3.4100 Buy Now
DISTI # 876-SIL05-1A72-71D
Mouser Electronics Reed Relays 1 Form A 5 V SIL w/diode RoHS: Compliant 935
  • 1 $3.4100
  • 10 $3.0500
  • 25 $2.7800
  • 100 $2.5800
  • 250 $2.3400
  • 500 $2.2600
  • 1,000 $2.1500
$2.1500 / $3.4100 Buy Now
DISTI # E02:0323_09217178
Arrow Electronics Reed Relay 5VDC 500Ohm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2507 Europe - 10954
  • 1 $3.4737
  • 10 $3.1055
  • 25 $2.8627
  • 50 $2.7835
  • 100 $2.5500
  • 250 $2.3884
  • 500 $2.2825
  • 1,000 $2.1015
$2.1015 / $3.4737 Buy Now
DISTI # STXSIL05-1A72-71D
Heilind Electronics REED RELAY, 1 FORM A, SPST-NO, 5V SIL (SINGLE IN-LINE) W/DIO Americas - 0 in Stock
  • 500 $2.4167
  • 700 $2.3770
  • 3,500 $2.2131
$2.2131 / $2.4167 Buy Now
Onlinecomponents.com Reed Relay, 1 Form A, SPST-NO, 5V SIL (Single In-Line) w/Diode RoHS: Compliant 900 In Stock
  • 100 $2.4700
  • 300 $2.3800
  • 500 $2.3000
  • 1,000 $2.2600
  • 2,500 $2.1600
  • 5,000 $2.1500
  • 7,500 $2.1300
  • 10,000 $2.1200
$2.1200 / $2.4700 Buy Now
DISTI # 87776550
Verical Reed Relay 5VDC 500Ohm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2507 Americas - 10953
  • 3 $3.4099
  • 10 $3.0485
  • 25 $2.8103
  • 50 $2.7316
  • 100 $2.5034
  • 250 $2.3439
  • 500 $2.2410
  • 1,000 $2.0956
$2.0956 / $3.4099 Buy Now
DISTI # 66747299
Verical Reed Relay 5VDC 500Ohm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2307 Americas - 900
  • 100 $3.2110
  • 300 $3.0940
  • 500 $2.9900
  • 1,000 $2.9380
  • 2,500 $2.8080
$2.8080 / $3.2110 Buy Now
DISTI # 88083508
Verical Reed Relay 5VDC 500Ohm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry RoHS: Compliant Min Qty: 32 Package Multiple: 1 Americas - 50
  • 33 $2.3549
  • 50 $2.2652
$2.2652 / $2.3549 Buy Now
Quest Components DRY REED RELAY, SPST, MOMENTARY, 0.01A (COIL), 5VDC (COIL), 50MW (COIL), 1A (CONTACT), 200VDC (CONTACT), DC INPUT, AC/DC OUTPUT, THROUGH HOLE-STRAIGHT 8
  • 1 $6.0000
  • 3 $4.0000
  • 7 $3.0000
$3.0000 / $6.0000 Buy Now
DISTI # SIL05-1A72-71D
TTI Reed Relays 1 Form A 5 V SIL w/diode RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 25 Container: Tube Americas - 0
  • 500 $2.0400
  • 1,000 $2.0000
  • 2,500 $1.9600
  • 5,000 $1.9200
  • 10,000 $1.8800
$1.8800 / $2.0400 Buy Now
DISTI # SIL05-1A72-71D
TME Relay: reed switch, SPST-NO, Ucoil: 5VDC, 1.25A, max.200VDC, 50mW Min Qty: 1 1740
  • 1 $3.5200
  • 5 $2.9200
  • 25 $2.6100
  • 100 $2.3100
  • 500 $2.1000
$2.1000 / $3.5200 Buy Now
Master Electronics Reed Relay, 1 Form A, SPST-NO, 5V SIL (Single In-Line) w/Diode RoHS: Compliant 900 In Stock
  • 100 $2.4700
  • 300 $2.3800
  • 500 $2.3000
  • 1,000 $2.2600
  • 2,500 $2.1600
  • 5,000 $2.1500
  • 7,500 $2.1300
  • 10,000 $2.1200
$2.1200 / $2.4700 Buy Now

Part Details for SIL05-1A72-71D

SIL05-1A72-71D Part Data Attributes

Parametric Data
SIL05-1A72-71D Standex-Meder Electronics
Buy Now Datasheet
Compare Parts:
SIL05-1A72-71D Standex-Meder Electronics Dry Reed Relay, SPST, Momentary, 0.01A (Coil), 5VDC (Coil), 50mW (Coil), 1A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,
Part Life Cycle Code Transferred
Ihs Manufacturer MEDER ELECTRONIC AG
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.49.00.50
Samacsys Manufacturer Meder
Body Breadth 5.08 mm
Body Height 7.8 mm
Body Length or Diameter 19.8 mm
Coil Current(DC)-Max 0.01 A
Coil Operate Voltage(DC) 3.5 V
Coil Power 50 mW
Coil Release Voltage(DC) 0.75 V
Coil Resistance 500 Ω
Coil Voltage-Nom 5 V
Coil/Input Supply Type DC
Contact (AC) Max Rating R Load 0.5A@200VAC
Contact Current(AC)-Max 0.5 A
Contact Current(DC)-Max 0.5 A
Contact (DC) Max Rating R Load 0.5A@200VDC
Contact Resistance 100 mΩ
Contact Voltage(AC)-Max 200 V
Contact Voltage(DC)-Max 200 V
Contact/Output Supply Type AC/DC
Input Switching Control Type Random
Insulation Resistance 10000000000 Ω
Mounting Feature THROUGH HOLE-STRAIGHT
Number of Terminals 4
Operate Time 0.5 ms
Operating Temperature-Max 70 °C
Operating Temperature-Min -20 °C
Physical Dimension 19.8mm x 5.08mm x 7.8mm
Reference Standard CUL; UL
Relay Action MBB
Relay Form 1 FORM A
Relay Function SPST
Relay Type DRY REED RELAY
Release Time 0.1 ms
Surface Mount NO
Terminal Length 0.003500127000254001 inch
Termination Type SOLDER
