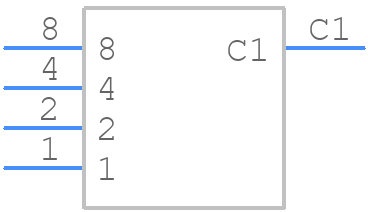

Part Symbol
-

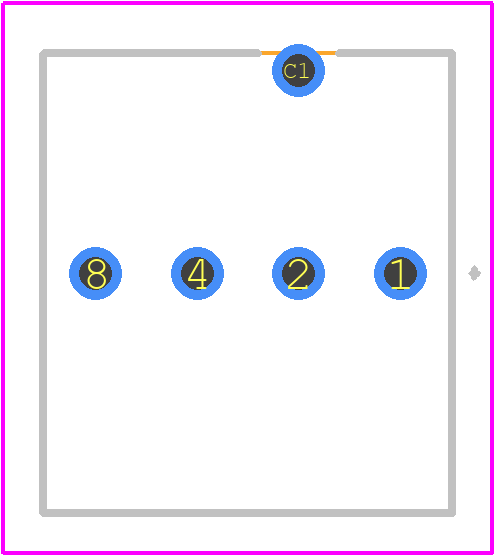

Footprint
-

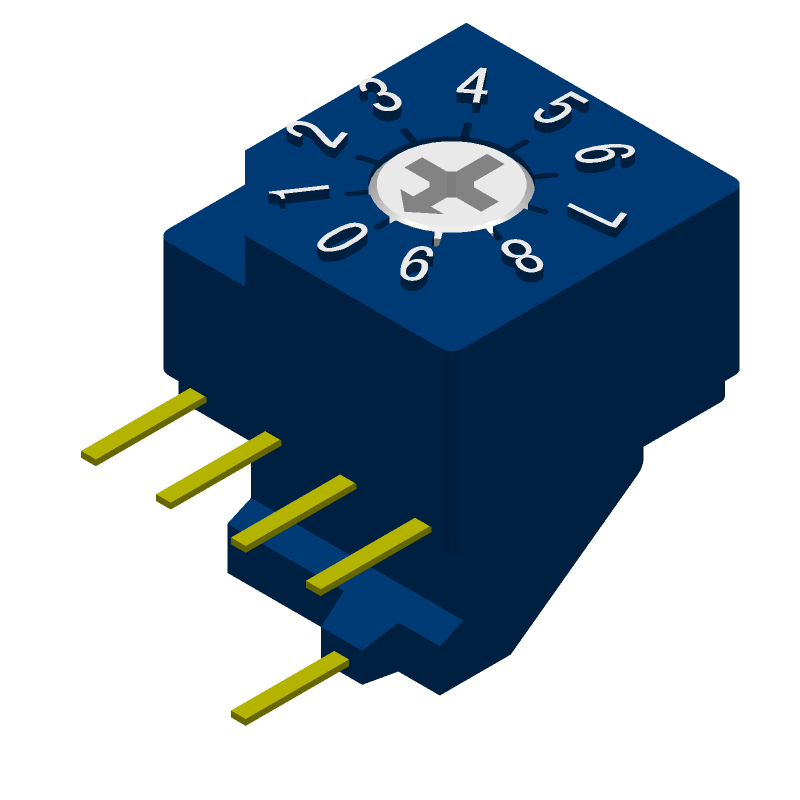

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for S-2011A by Nidec Copal Electronics Corporation
Results Overview of S-2011A by Nidec Copal Electronics Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
S-2011A Information
S-2011A by Nidec Copal Electronics Corporation is a Rotary Switch.
Rotary Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for S-2011A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
S-2011A
|
Avnet Americas | Switch DIP SP10T 10 Flush Screwdriver 0.1A 5VDC PC Pins Thru-Hole Bulk - Bulk (Alt: S-2011A) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 15 Weeks, 0 Days Container: Bulk | 0 |
|
$1.6256 / $1.7272 | Buy Now |
|
DISTI #
87172271
|
Verical | Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.1A 5VDC PC Pins Thru-Hole Bulk RoHS: Compliant Min Qty: 22 Package Multiple: 1 | Americas - 49 |
|
$2.7900 | Buy Now |
|
|
Quest Components | SWITCH ROTARY DIP 10-POS SIDE | 1 |
|
$2.1750 | Buy Now |
Part Details for S-2011A
S-2011A CAD Models
S-2011A Part Data Attributes
|
|
S-2011A
Nidec Copal Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
S-2011A
Nidec Copal Electronics Corporation
Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NIDEC COPAL ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.20 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Nidec Copal | |
| Body Breadth | 10 mm | |
| Body Height | 10 mm | |
| Body Length or Diameter | 11.5 mm | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | .1A@5VDC | |
| Contact Voltage(DC)-Max | 5 V | |
| Indexing Angle | 36 deg | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Number of Positions | 10 | |
| Number of Switch Sections | 1 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -25 °C | |
| Packing Method | BAG | |
| Sealing | WATERPROOF | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | BINARY CODED DECIMAL | |
| Switch Type | ROTARY CODED SWITCH | |
| Terminal Finish | Gold (Au) | |
| Termination Type | SOLDER |
