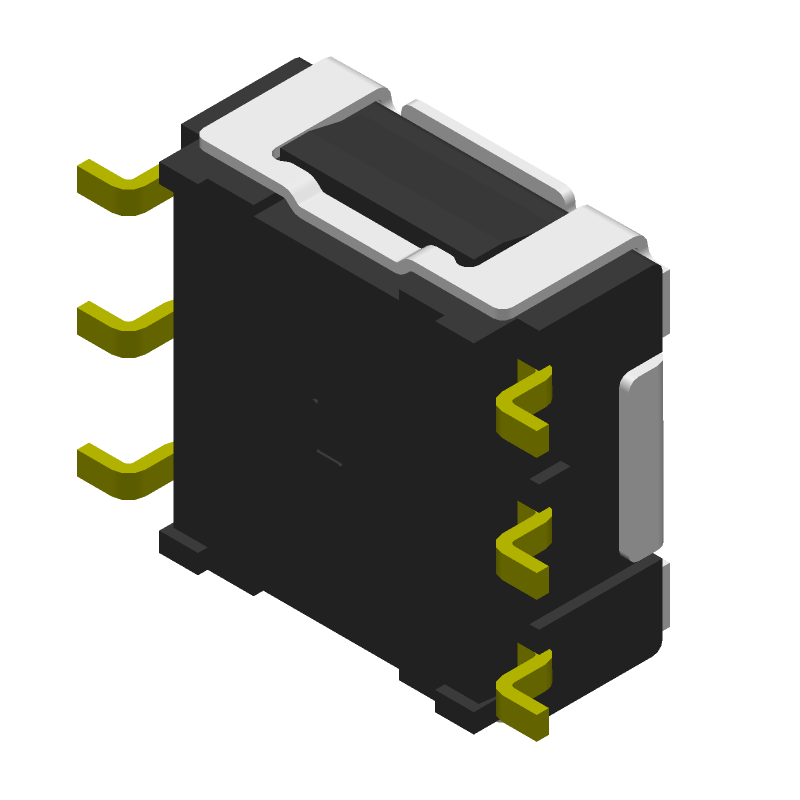

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for RDS-16S-74385-SMT by Same Sky
Results Overview of RDS-16S-74385-SMT by Same Sky
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
RDS-16S-74385-SMT Information
RDS-16S-74385-SMT by Same Sky is a Rotary Switch.
Rotary Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for RDS-16S-74385-SMT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2223-RDS-16S-74385-SMT-ND
|
DigiKey | SWITCH ROTARY DIP HEX 0.1A 42V Min Qty: 1 Lead time: 12 Weeks Container: Tube |
544 In Stock |
|
$1.5119 / $2.9000 | Buy Now |
|
DISTI #
490-RDS16S74385SMT
|
Mouser Electronics | DIP Switches / SIP Switches Rotary DIP Switch, 7.4 x 7.4 x 3.85 mm, 16 pos, SMT RoHS: Compliant | 725 |
|
$1.5100 / $2.9000 | Buy Now |
|
|
Onlinecomponents.com | DIP Switch - 16 Position - Surface Mount - 5.08 mm Pitch - Flat Rotary Actuator RoHS: Compliant | 0 |
|
$1.3800 / $1.7600 | Buy Now |
|
DISTI #
RDS16S74385SMT
|
TME | Encoding switch, DEC/BCD, Pos: 16, SMT, Rcont max: 80mΩ, LCP, IP67 Min Qty: 700 | 0 |
|
$1.5100 / $1.6000 | RFQ |
Part Details for RDS-16S-74385-SMT
RDS-16S-74385-SMT CAD Models
RDS-16S-74385-SMT Part Data Attributes
|
|
RDS-16S-74385-SMT
Same Sky
Buy Now
Datasheet
|
Compare Parts:
RDS-16S-74385-SMT
Same Sky
16 Position, Surface Mount, 5.08 mm Pitch, Flat Rotary Actuator, DIP Switch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | CUI DEVICES | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Same Sky | |
| Actuator Material | LIQUID CRYSTAL POLYMER | |
| Actuator Type | FLAT TYPE | |
| Additional Feature | UL | |
| Body Breadth | 7.4 mm | |
| Body Height | 3.85 mm | |
| Body Length or Diameter | 7.4 mm | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | 0.1A@42VDC | |
| Contact Function | BINARY CODED | |
| Contact Resistance | 0.08 mΩ | |
| Contact Voltage(DC)-Max | 42 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 25000 Cycle(s) | |
| Housing Material | LIQUID CRYSTAL POLYMER | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Positions | 16 | |
| Number of Switch Sections | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -60 °C | |
| Packing Method | TUBE | |
| Sealing | IP67 | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | BCH COMPLEMENT | |
| Switch Type | ROTARY CODED SWITCH | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
