Microcontrollers and Processors / Microcontrollers / PIC24F16KA102-I/SP
Datasheets
PIC24F16KA102-I/SP by: Microchip Technology Inc

16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28

Part Details for PIC24F16KA102-I/SP by Microchip Technology Inc

Results Overview of PIC24F16KA102-I/SP by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

PIC24F16KA102-I/SP Information

PIC24F16KA102-I/SP by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC24F16KA102-I/SP

Part # Distributor Description Stock Price Buy
DISTI # 40M1463
Newark Microcontroller Mcu, 16 Bit, Pic24, 32Mhz, Dip-28, Product Range:Pic24 Family Pic24Fka Series Microcontrollers, Device Core:Pic24, Data Bus Width:16 Bit, Operating Frequency Max:32Mhz, Program Memory Size:16Kb, No. Of Pins:28Pins Rohs Compliant: Yes |Microchip PIC24F16KA102-I/SP RoHS: Compliant Min Qty: 240 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 60 $2.8100
$2.8100 Buy Now
DISTI # PIC24F16KA102-I/SP-ND
DigiKey IC MCU 16BIT 16KB FLASH 28SPDIP Min Qty: 1 Lead time: 8 Weeks Container: Tube 230
In Stock
  • 1 $3.4000
  • 25 $3.0900
  • 100 $2.8100
$2.8100 / $3.4000 Buy Now
DISTI # PIC24F16KA102-I/SP
Avnet Americas - Rail/Tube (Alt: PIC24F16KA102-I/SP) RoHS: Compliant Min Qty: 210 Package Multiple: 15 Lead time: 8 Weeks, 0 Days Container: Tube 0
  • 1 $3.4000
  • 25 $3.0900
  • 100 $2.8100
$2.8100 / $3.4000 Buy Now
DISTI # 579-PIC24F16KA102ISP
Mouser Electronics 16-bit Microcontrollers - MCU 16KB 2KB RAM512B EEPROM 19MIPS I/O16B RoHS: Compliant 305
  • 1 $3.4000
  • 10 $3.0900
  • 30 $2.8100
$2.8100 / $3.4000 Buy Now
DISTI # PIC24F16KA102-I/SP
Microchip Technology Inc 16KB Flash, 2KB RAM, 512B EEPROM, 16 MIPS, 19 I/O,nanoWatt XLP, SPDIP, Projected EOL: 2034-04-07 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube 1020

Alternates Available
  • 1 $3.4000
  • 25 $3.0900
  • 100 $2.8100
  • 1,000 $2.5800
  • 5,000 $2.4500
$2.4500 / $3.4000 Buy Now
DISTI # 70047147
RS 28-Pin, 16KB Flash, 2KB RAM, 512B EEPROM, 16 MIPS, 19 I/O,16-Bit PIC24F Family Min Qty: 240 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 240 $5.4800
  • 1,200 $5.2100
  • 2,400 $4.9300
  • 4,800 $4.6600
$4.6600 / $5.4800 RFQ
Onlinecomponents.com MCU 16-bit PIC RISC 16KB Flash 2.5V/3.3V Automotive 28-Pin SPDIP Tube RoHS: Compliant 1020 Factory Stock
  • 60 $4.3000
  • 120 $3.2300
  • 180 $3.0100
  • 240 $2.9500
$2.9500 / $4.3000 Buy Now
NAC 16KB Flash, 2KB RAM, 512B EEPROM, 16 MIPS, 19 I/O,16-bit PIC24F Family, nanoWatt XLP - Package: 28 SPDIP .300in TUBE RoHS: Compliant Min Qty: 105 Package Multiple: 15 Container: Tube 0
  • 1 $3.5100
  • 100 $3.1900
  • 500 $2.9900
  • 1,000 $2.9100
$2.9100 / $3.5100 Buy Now
DISTI # PIC24F16KA102-I/SP
Avnet Silica (Alt: PIC24F16KA102-I/SP) RoHS: Compliant Min Qty: 15 Package Multiple: 15 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
DISTI # PIC24F16KA102-I/SP
EBV Elektronik (Alt: PIC24F16KA102-I/SP) RoHS: Compliant Min Qty: 15 Package Multiple: 15 Lead time: 9 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU 16-bit PIC RISC 16KB Flash 2.5V/3.3V Automotive 28-Pin SPDIP Tube RoHS: Compliant 1020 Factory Stock
  • 60 $4.3000
  • 120 $3.2300
  • 180 $3.0100
  • 240 $2.9500
$2.9500 / $4.3000 Buy Now

Part Details for PIC24F16KA102-I/SP

PIC24F16KA102-I/SP CAD Models

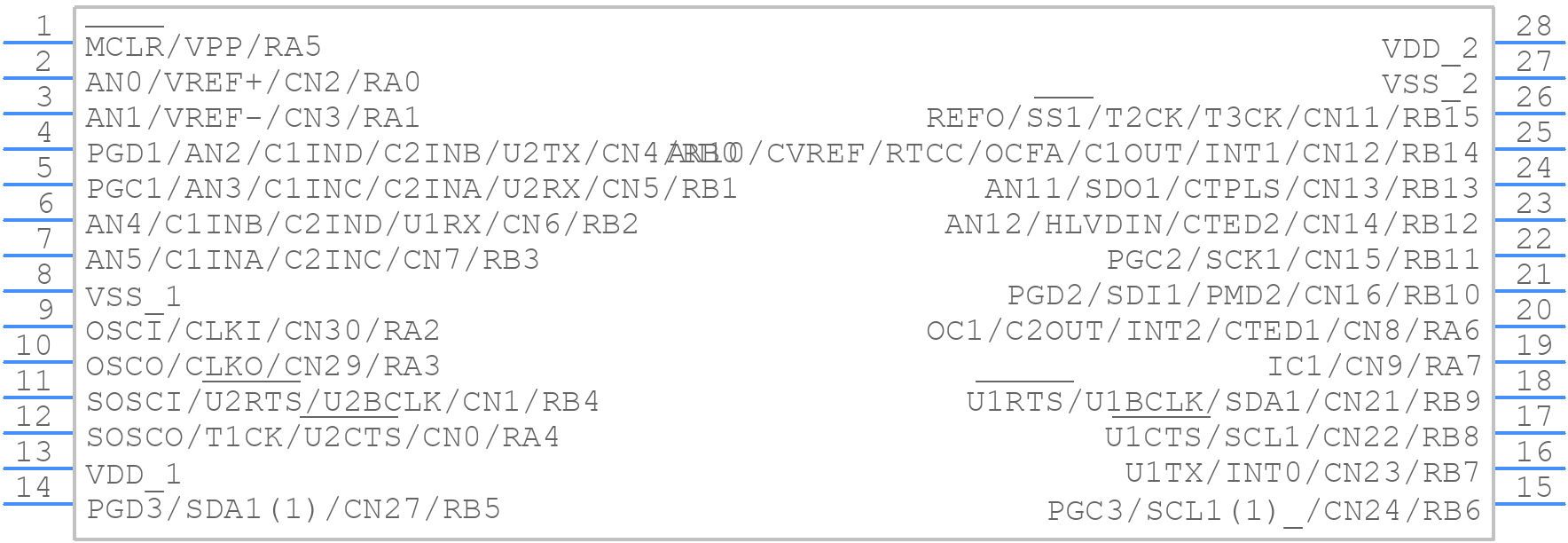

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC24F16KA102-I/SP Part Data Attributes

Parametric Data
PIC24F16KA102-I/SP Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC24F16KA102-I/SP Microchip Technology Inc 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DIP
Package Description 0.300 INCH, LEAD FREE, PLASTIC, SDIP-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 8 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ITS ALSO OPERATES MINIMUM 1.8V AT 8 MHZ
Address Bus Width
Bit Size 16
Boundary Scan NO
CPU Family PIC24
Clock Frequency-Max 32 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T28
JESD-609 Code e3
Length 34.671 mm
Low Power Mode YES
Number of External Interrupts 3
Number of I/O Lines 24
Number of Serial I/Os 2
Number of Terminals 28
Number of Timers 5
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
RAM (bytes) 1536
ROM (words) 16384
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 5.08 mm
Speed 32 MHz
Supply Current-Max 18 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 1.8 V
Supply Voltage-Nom 2 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC24F16KA102-I/SP

This table gives cross-reference parts and alternative options found for PIC24F16KA102-I/SP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC24F16KA102-I/SP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC24F16KA102-E/SP Microchip Technology Inc $3.6367 IC,MICROCONTROLLER,16-BIT,PIC CPU,CMOS,DIP,28PIN,PLASTIC PIC24F16KA102-I/SP vs PIC24F16KA102-E/SP
Part Number Manufacturer Composite Price Description Compare
PIC24F16KA102-I/SO Microchip Technology Inc $2.8556 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC24F16KA102-I/SP vs PIC24F16KA102-I/SO
PIC24F16KA102T-I/SS Microchip Technology Inc $3.0600 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28 PIC24F16KA102-I/SP vs PIC24F16KA102T-I/SS
PIC24F16KA102T-I/SO Microchip Technology Inc $3.1200 16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 PIC24F16KA102-I/SP vs PIC24F16KA102T-I/SO
PIC24F16KA102-E/SSVAO Microchip Technology Inc Check for Price Microcontroller, 16-Bit, FLASH, 32MHz, CMOS, PDSO28 PIC24F16KA102-I/SP vs PIC24F16KA102-E/SSVAO
PIC24F16KA102-E/MLVAO Microchip Technology Inc Check for Price Microcontroller, 16-Bit, FLASH, 32MHz, CMOS, PQCC28 PIC24F16KA102-I/SP vs PIC24F16KA102-E/MLVAO
PIC24F16KA102T-E/ML Microchip Technology Inc Check for Price 16-BIT, FLASH, 32MHz, MICROCONTROLLER, PQCC28 PIC24F16KA102-I/SP vs PIC24F16KA102T-E/ML
PIC24F16KA102T-I/MLVAO Microchip Technology Inc Check for Price Microcontroller, 16-Bit, FLASH, 32MHz, CMOS, PQCC28 PIC24F16KA102-I/SP vs PIC24F16KA102T-I/MLVAO
PIC24F16KA102T-E/SSVAO Microchip Technology Inc Check for Price Microcontroller, 16-Bit, FLASH, 32MHz, CMOS, PDSO28 PIC24F16KA102-I/SP vs PIC24F16KA102T-E/SSVAO

PIC24F16KA102-I/SP Related Parts

PIC24F16KA102-I/SP Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC24F16KA102-I/SP is 32 MHz.

  • The PIC24F16KA102-I/SP has 16 KB of flash memory.

  • No, the PIC24F16KA102-I/SP is a 3.3V device and should not be operated at 5V.

  • Yes, the PIC24F16KA102-I/SP has a built-in oscillator that can be used as a clock source.

  • The PIC24F16KA102-I/SP has two UART modules, UART1 and UART2.
