Microcontrollers and Processors / Microcontrollers / PIC16LF15325-I/P
Datasheets
PIC16LF15325-I/P by: Microchip Technology Inc

RISC Microcontroller

Part Details for PIC16LF15325-I/P by Microchip Technology Inc

Results Overview of PIC16LF15325-I/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities Automotive

PIC16LF15325-I/P Information

PIC16LF15325-I/P by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC16LF15325-I/P

Part # Distributor Description Stock Price Buy
DISTI # 23AC8381
Newark Mcu, 8Bit, 32Mhz, Dip-14, Product Range:Pic16 Family Pic16Lf153Xx Series Microcontroller, Device Core:Pic16, Operating Frequency Max:32Mhz, Program Memory Size:14Kb, No. Of Pins:14Pins, Ic Case/Package:Dip, No. Of I/O S:12I/O S Rohs Compliant: Yes |Microchip PIC16LF15325-I/P RoHS: Compliant Min Qty: 570 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.2400
$1.2400 Buy Now
DISTI # PIC16LF15325-I/P-ND
DigiKey IC MCU 8BIT 14KB FLASH 14DIP Min Qty: 570 Lead time: 6 Weeks Container: Tube Temporarily Out of Stock
  • 570 $1.1700
$1.1700 Buy Now
DISTI # PIC16LF15325-I/P
Avnet Americas 14KB 1KB RAM 4XPWMS COMPARATOR DAC ADC 4XCLC CWG 2XEUSART SPI/I2C - Rail/Tube (Alt: PIC16LF15325-I/P) RoHS: Not Compliant Min Qty: 510 Package Multiple: 30 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 510 $1.3524
  • 570 $1.1999
  • 1,080 $1.1799
  • 2,550 $1.1600
  • 5,100 $1.1400
$1.1400 / $1.3524 Buy Now
DISTI # 579-PIC16LF15325-I/P
Mouser Electronics 8-bit Microcontrollers - MCU 14KB, 1KB RAM, 4xPWMs, Comparator, DAC, ADC, 4xCLC, CWG, 2xEUSART, SPI/I2C RoHS: Compliant 633
  • 1 $1.4100
  • 30 $1.1900
  • 120 $1.1700
  • 270 $1.1600
$1.1600 / $1.4100 Buy Now
DISTI # PIC16LF15325-I/P
Microchip Technology Inc 14KB, 1KB RAM, 12x I/O, 4xPWMs, Comp, DAC, ADC, CWG, 2xEUSART, SPI/I2C, PDIP, Projected EOL: 2044-12-21 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 2260

Alternates Available
  • 1 $1.4100
  • 25 $1.2900
  • 100 $1.1700
  • 1,000 $1.0800
  • 5,000 $1.0300
$1.0300 / $1.4100 Buy Now
Onlinecomponents.com MCU 8-bit PIC RISC 14KB Flash 3.3V 14-Pin PDIP Tube RoHS: Compliant 2250 Factory Stock
  • 143 $1.7700
  • 285 $1.3300
  • 428 $1.2400
  • 570 $1.2200
$1.2200 / $1.7700 Buy Now
DISTI # PIC16LF15325-I/P
TME IC: PIC microcontroller, 14kB, 32MHz, MSSP (SPI / I2C),UART, THT Min Qty: 1 0
  • 1 $1.3800
  • 5 $1.3400
  • 30 $1.2700
$1.2700 / $1.3800 RFQ
NAC 14KB, 1KB RAM, 4xPWMs, Comparator, DAC, ADC, 4xCLC, CWG, 2xEUSART, SPI/I2C - Package: 14 PDIP .300in TUBE RoHS: Compliant Min Qty: 270 Package Multiple: 30 Container: Tube 0
  • 1 $1.5400
  • 100 $1.3900
  • 500 $1.2800
  • 1,000 $1.2500
$1.2500 / $1.5400 Buy Now
Master Electronics MCU 8-bit PIC RISC 14KB Flash 3.3V 14-Pin PDIP Tube RoHS: Compliant 2250 Factory Stock
  • 143 $1.7700
  • 285 $1.3300
  • 428 $1.2400
  • 570 $1.2200
$1.2200 / $1.7700 Buy Now

Part Details for PIC16LF15325-I/P

PIC16LF15325-I/P CAD Models

  • Part Symbol

    Part Symbol

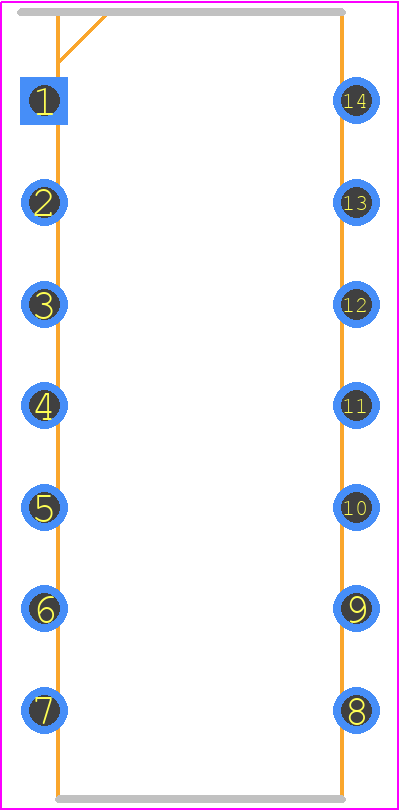

  • Footprint

    footprint

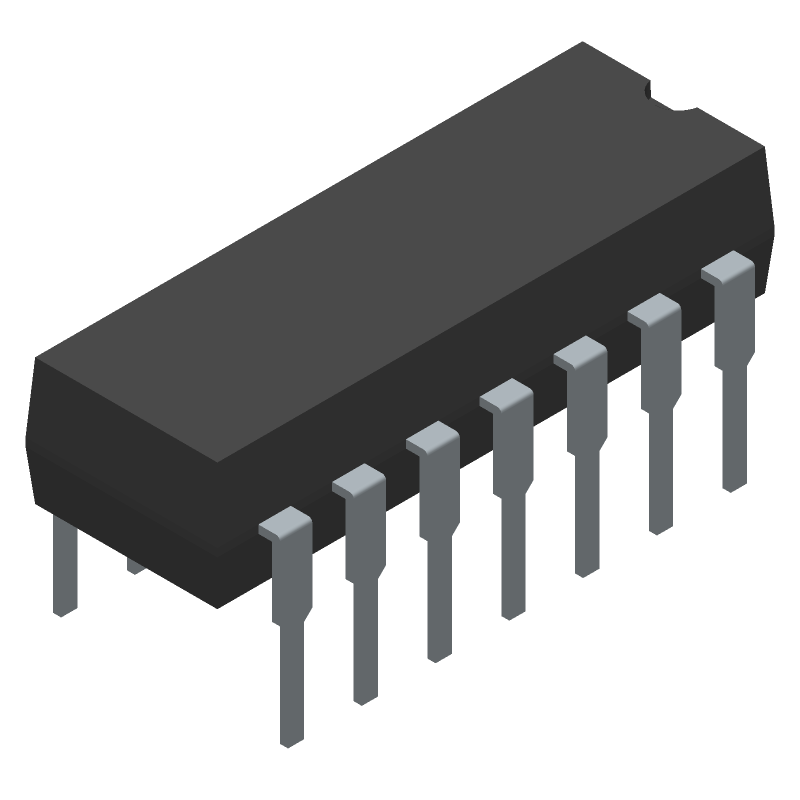

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC16LF15325-I/P Part Data Attributes

Parametric Data
PIC16LF15325-I/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC16LF15325-I/P Microchip Technology Inc RISC Microcontroller
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description DIP-14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Date Of Intro 2016-11-21
Samacsys Manufacturer Microchip
Has ADC YES
Bit Size 32
Boundary Scan NO
CPU Family PIC16
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels NO
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T14
JESD-609 Code e3
Length 19.05 mm
Low Power Mode YES
Number of I/O Lines 12
Number of Serial I/Os 2
Number of Terminals 14
Number of Timers 3
On Chip Data RAM Width 8
On Chip Program ROM Width 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
RAM (bytes) 1024
ROM (words) 8192
ROM Programmability FLASH
Seated Height-Max 5.334 mm
Speed 32 MHz
Supply Current-Max 3.5 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 1.8 V
Supply Voltage-Nom 1.8 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC16LF15325-I/P

This table gives cross-reference parts and alternative options found for PIC16LF15325-I/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC16LF15325-I/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC16F15325-I/P Microchip Technology Inc $1.3709 RISC Microcontroller PIC16LF15325-I/P vs PIC16F15325-I/P
PIC16F15325-E/P Microchip Technology Inc $1.3853 RISC Microcontroller PIC16LF15325-I/P vs PIC16F15325-E/P
Part Number Manufacturer Composite Price Description Compare
PIC16F15325-I/JQ Microchip Technology Inc $1.0625 RISC Microcontroller PIC16LF15325-I/P vs PIC16F15325-I/JQ
PIC16F15325-E/ST Microchip Technology Inc $1.2133 RISC Microcontroller PIC16LF15325-I/P vs PIC16F15325-E/ST
PIC16LF15325-E/P Microchip Technology Inc $1.4837 RISC Microcontroller PIC16LF15325-I/P vs PIC16LF15325-E/P
PIC16F15325T-E/SLVAO Microchip Technology Inc Check for Price RISC Microcontroller PIC16LF15325-I/P vs PIC16F15325T-E/SLVAO
PIC16F15325T-E/ML Microchip Technology Inc Check for Price RISC Microcontroller PIC16LF15325-I/P vs PIC16F15325T-E/ML
PIC16F15325T-I/ST Microchip Technology Inc Check for Price RISC Microcontroller PIC16LF15325-I/P vs PIC16F15325T-I/ST
PIC16F15325T-E/JQ Microchip Technology Inc Check for Price RISC Microcontroller PIC16LF15325-I/P vs PIC16F15325T-E/JQ
PIC16F15325T-E/JQVAO Microchip Technology Inc Check for Price RISC Microcontroller, 8-Bit, FLASH, 32MHz, CMOS, PQCC16 PIC16LF15325-I/P vs PIC16F15325T-E/JQVAO
PIC16LF15325T-E/JQVAO Microchip Technology Inc Check for Price RISC Microcontroller PIC16LF15325-I/P vs PIC16LF15325T-E/JQVAO
PIC16F15325T-E/ST Microchip Technology Inc Check for Price RISC Microcontroller PIC16LF15325-I/P vs PIC16F15325T-E/ST

PIC16LF15325-I/P Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the PIC16LF15325-I/P is 32 MHz.

  • The PIC16LF15325-I/P has 14 KB of flash memory.

  • No, the PIC16LF15325-I/P is a low-voltage device and operates at a maximum voltage of 3.6V.

  • No, the PIC16LF15325-I/P does not have built-in USB functionality. However, it does have a UART module that can be used for serial communication.

  • The PIC16LF15325-I/P has 12 ADC channels.
