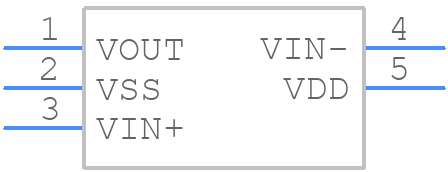

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP6021T-E/OT by Microchip Technology Inc
Results Overview of MCP6021T-E/OT by Microchip Technology Inc
- Distributor Offerings: (31 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MCP6021T-E/OT Information
MCP6021T-E/OT by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for MCP6021T-E/OT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84R5185
|
Newark | Op Amp, 10 Mhz, 7 V/Us, 250 Uv, 5-Sot-23, No. Of Channels:1Channels, Gain Bandwidth Product:10Mhz, Supply Voltage Range:2.5V To 5.5V, Ic Case/Package:Sot-23, No. Of Pins:5Pins, Amplifier Type:General Purpose, Input Bias Current:1Parohs Compliant: Yes |Microchip MCP6021T-E/OT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 7343 |
|
$0.7990 | Buy Now |
|
DISTI #
69K0144
|
Newark | Op Amp, 10 Mhz, 7 V/Us, 250 Uv, 5-Sot-23, Full Reel, No. Of Channels:1Channels, Gain Bandwidth Product:10Mhz, Supply Voltage Range:2.5V To 5.5V, Ic Case/Package:Sot-23, No. Of Pins:5Pins, Amplifier Type:General Purpose Rohs Compliant: Yes |Microchip MCP6021T-E/OT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.0200 | Buy Now |
|
DISTI #
38AH8693
|
Newark | Single 2.5V 10 Mhz Op, E Temp Rohs Compliant: Yes |Microchip MCP6021T-E/OT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.0200 | Buy Now |
|
DISTI #
MCP6021T-E/OTCT-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
18094 In Stock |
|
$1.0200 / $1.3500 | Buy Now |
|
DISTI #
MCP6021T-E/OT
|
Avnet Americas | Operational Amplifier, Single, 1 Channels, 10 MHz, 7 V/?s, 2.5V to 5.5V, SOT-23, 5 Pins - Tape and Reel (Alt: MCP6021T-E/OT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 4 Weeks, 0 Days Container: Reel | 6000 |
|
$1.0146 / $1.0501 | Buy Now |
|
DISTI #
84R5185
|
Avnet Americas | Operational Amplifier, Single, 1 Channels, 10 MHz, 7 V/?s, 2.5V to 5.5V, SOT-23, 5 Pins - Product that comes on tape, but is not reeled (Alt: 84R5185) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 55 Weeks, 0 Days Container: Ammo Pack | 7343 Partner Stock |
|
$1.1200 / $1.4000 | Buy Now |
|
DISTI #
579-MCP6021T-E/OT
|
Mouser Electronics | Operational Amplifiers - Op Amps Single 2.5V 10 MHz OP E temp RoHS: Compliant | 16687 |
|
$1.0200 / $1.3500 | Buy Now |
|
DISTI #
V72:2272_06447043
|
Arrow Electronics | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2236 Container: Cut Strips | Americas - 9596 |
|
$1.1950 / $1.3570 | Buy Now |
|
DISTI #
E54:1762_00054085
|
Arrow Electronics | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 4 Weeks Date Code: 2428 | Europe - 3000 |
|
$1.1150 | Buy Now |
|
DISTI #
VBF:5286_06447043
|
Arrow Electronics | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 4 Weeks Date Code: 2337 | Americas - 3000 |
|
$1.1150 | Buy Now |
Part Details for MCP6021T-E/OT
MCP6021T-E/OT CAD Models
MCP6021T-E/OT Part Data Attributes
|
|
MCP6021T-E/OT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP6021T-E/OT
Microchip Technology Inc
OP-AMP, 250 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO5, PLASTIC, SC-74A, SOT-23, 5 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOT-23 | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 55 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.005 µA | |
| Common-mode Reject Ratio-Min | 74 dB | |
| Common-mode Reject Ratio-Nom | 90 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 2500 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.95 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Nom | 7 V/us | |
| Supply Current-Max | 1.35 mA | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 10000 | |
| Voltage Gain-Min | 31620 | |
| Wideband | NO | |
| Width | 1.63 mm |
Alternate Parts for MCP6021T-E/OT
This table gives cross-reference parts and alternative options found for MCP6021T-E/OT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6021T-E/OT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP6023-E/P | Microchip Technology Inc | $1.2176 | OP-AMP, 250 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDIP8, 0.300 INCH, LEAD FREE, PLASTIC, MS-001, DIP-8 | MCP6021T-E/OT vs MCP6023-E/P |
| MCP6023T-E/ST | Microchip Technology Inc | $51.2185 | OP-AMP, 250 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8 | MCP6021T-E/OT vs MCP6023T-E/ST |
| MCP6021-I/SNVAO | Microchip Technology Inc | Check for Price | Operational Amplifier, 1 Func, 3000uV Offset-Max, CMOS, PDSO8 | MCP6021T-E/OT vs MCP6021-I/SNVAO |
| MCP6021R-E/SN | Microchip Technology Inc | Check for Price | Operational Amplifier | MCP6021T-E/OT vs MCP6021R-E/SN |
| MCP6021R-I/P | Microchip Technology Inc | Check for Price | Operational Amplifier | MCP6021T-E/OT vs MCP6021R-I/P |
| MCP6021R-I/SN | Microchip Technology Inc | Check for Price | Operational Amplifier | MCP6021T-E/OT vs MCP6021R-I/SN |
| MCP6021T-E/SL | Microchip Technology Inc | Check for Price | Operational Amplifier | MCP6021T-E/OT vs MCP6021T-E/SL |
| MCP6023-E/SN | Microchip Technology Inc | Check for Price | OP-AMP, 250 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, MS-012, SOIC-8 | MCP6021T-E/OT vs MCP6023-E/SN |
| MCP6021T-I/SN | Microchip Technology Inc | Check for Price | OP-AMP, 500 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, MS-012, SOIC-8 | MCP6021T-E/OT vs MCP6021T-I/SN |
| MCP6021T-E/ST | Microchip Technology Inc | Check for Price | OP-AMP, 2500 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8 | MCP6021T-E/OT vs MCP6021T-E/ST |
MCP6021T-E/OT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the MCP6021T-E/OT is 670 mW, which is calculated based on the package thermal resistance and the maximum junction temperature.
-
To ensure stability in a unity-gain buffer configuration, add a capacitor (typically 10-100 pF) between the output and the inverting input to compensate for the op-amp's internal capacitance and prevent oscillations.
-
To minimize noise and EMI, use a star-ground configuration, keep the input and output traces short and away from each other, and use a ground plane to shield the op-amp. Additionally, place decoupling capacitors close to the op-amp's power pins.
-
Yes, the MCP6021T-E/OT can be used as a comparator. To do so, connect the input signal to the non-inverting input and the reference voltage to the inverting input. Use a pull-up resistor on the output to set the output voltage level.
-
The maximum input voltage range of the MCP6021T-E/OT is from -0.5 V to VDD + 0.5 V. Exceeding this range can cause the op-amp to saturate or latch up, leading to incorrect operation or even damage.
