MCP1825T-5002E/DC by: Microchip Technology Inc

5 V FIXED POSITIVE LDO REGULATOR, 0.35 V DROPOUT, PSSO5, PLASTIC, SOT-223, 5 PIN

Part Details for MCP1825T-5002E/DC by Microchip Technology Inc

Results Overview of MCP1825T-5002E/DC by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

MCP1825T-5002E/DC Information

MCP1825T-5002E/DC by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MCP1825T-5002E/DC

Part # Distributor Description Stock Price Buy
DISTI # 40M0722
Newark Ldo Voltage Regulator, 5V, 0.5A, Sot-223-5, Full Reel, Output Type:Fixed, Input Voltage Min:2.1V, Input Voltage Max:6V, No. Of Outputs:1Outputs, Output Voltage Min:-, Output Voltage Max:-, Polarity:Positive Output, No. Of Pins:5Pins Rohs Compliant: Yes |Microchip MCP1825T-5002E/DC RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 4,000 $0.5460
$0.5460 Buy Now
DISTI # MCP1825T-5002E/DCCT-ND
DigiKey IC REG LINEAR 5V 500MA SOT-223-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 22285
In Stock
  • 1 $0.6900
  • 25 $0.5800
  • 100 $0.5300
  • 4,000 $0.5300
$0.5300 / $0.6900 Buy Now
DISTI # MCP1825T-5002E/DC
Avnet Americas Fixed LDO Voltage Regulator, 2.1V to 6V, 210mV Dropout, 5Vout, 500mAout, SOT-223-5 - Tape and Reel (Alt: MCP1825T-5002E/DC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 1 $0.6900
  • 25 $0.5800
  • 100 $0.5300
$0.5300 / $0.6900 Buy Now
DISTI # 579-MCP1825T-5002EDC
Mouser Electronics LDO Voltage Regulators 500 mA CMOS LDO Vout 5.0V ETR RoHS: Compliant 3346
  • 1 $0.6900
  • 25 $0.5800
  • 100 $0.5300
$0.5300 / $0.6900 Buy Now
DISTI # V36:1790_06441005
Arrow Electronics LDO Regulator Pos 5V 0.5A Automotive AEC-Q100 6-Pin(5+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 6 Weeks Date Code: 2331 Americas - 4000
  • 4,000 $0.6262
$0.6262 Buy Now
DISTI # MCP1825T-5002E/DC
Microchip Technology Inc 500mA LOW VOLTAGE, LOW IQ LDO, SOT-223, Projected EOL: 2034-09-10 COO: Taiwan, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel 67800
  • 1 $0.6900
  • 25 $0.5800
  • 100 $0.5300
  • 1,000 $0.5200
  • 5,000 $0.5000
$0.5000 / $0.6900 Buy Now
DISTI # 70048305
RS IC, LINEAR REGULATOR, MAX. INPUT,6V, OUTPUT,5V, 500MA, ACCURACY,0.5%, SOT223-5 Min Qty: 4000 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk 0
  • 4,000 $0.7000
  • 40,000 $0.6600
  • 200,000 $0.6300
  • 400,000 $0.5900
$0.5900 / $0.7000 RFQ
Onlinecomponents.com LDO Regulator Pos 5V 0.5A Automotive 6-Pin(5+Tab) SOT-223 T/R RoHS: Compliant 4000 In Stock
64000 Factory Stock
  • 50 $1.0070
  • 250 $0.9920
  • 500 $0.9770
  • 1,000 $0.9620
  • 2,000 $0.5920
  • 3,000 $0.4687
  • 4,000 $0.4593
$0.4593 / $1.0070 Buy Now
DISTI # 69227134
Verical LDO Regulator Pos 5V 0.5A Automotive AEC-Q100 6-Pin(5+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2321 Americas - 4000
  • 50 $1.2899
  • 250 $1.2226
  • 500 $1.1838
  • 1,000 $1.1466
  • 2,000 $0.6940
$0.6940 / $1.2899 Buy Now
NAC 500 mA CMOS LDO, Vout=5.0V, Extended Temp Range - Package: 5 SOT-223 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 0
  • 1 $0.6900
  • 100 $0.6300
  • 500 $0.5800
  • 1,000 $0.5600
$0.5600 / $0.6900 Buy Now
DISTI # MCP1825T-5002E/DC
Avnet Silica Fixed LDO Voltage Regulator 21V to 6V 210mV Dropout 5Vout 500mAout SOT2235 (Alt: MCP1825T-5002E/DC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MCP1825T-5002E/DC
EBV Elektronik Fixed LDO Voltage Regulator 21V to 6V 210mV Dropout 5Vout 500mAout SOT2235 (Alt: MCP1825T-5002E/DC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics LDO Regulator Pos 5V 0.5A Automotive 6-Pin(5+Tab) SOT-223 T/R RoHS: Compliant 4000 In Stock
64000 Factory Stock
  • 50 $1.0070
  • 250 $0.9920
  • 500 $0.9770
  • 1,000 $0.9620
  • 2,000 $0.5920
  • 3,000 $0.4687
  • 4,000 $0.4593
$0.4593 / $1.0070 Buy Now

Part Details for MCP1825T-5002E/DC

MCP1825T-5002E/DC CAD Models

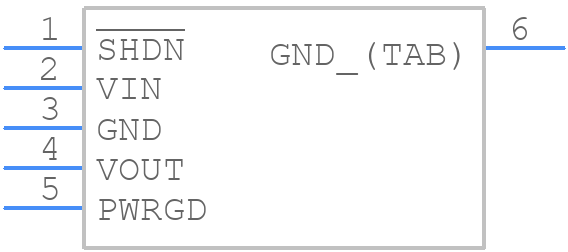

  • Part Symbol

    Part Symbol

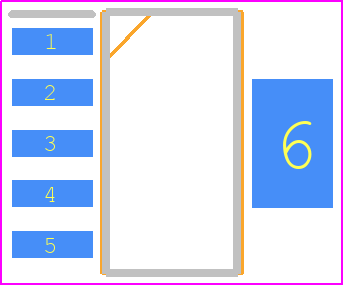

  • Footprint

    footprint

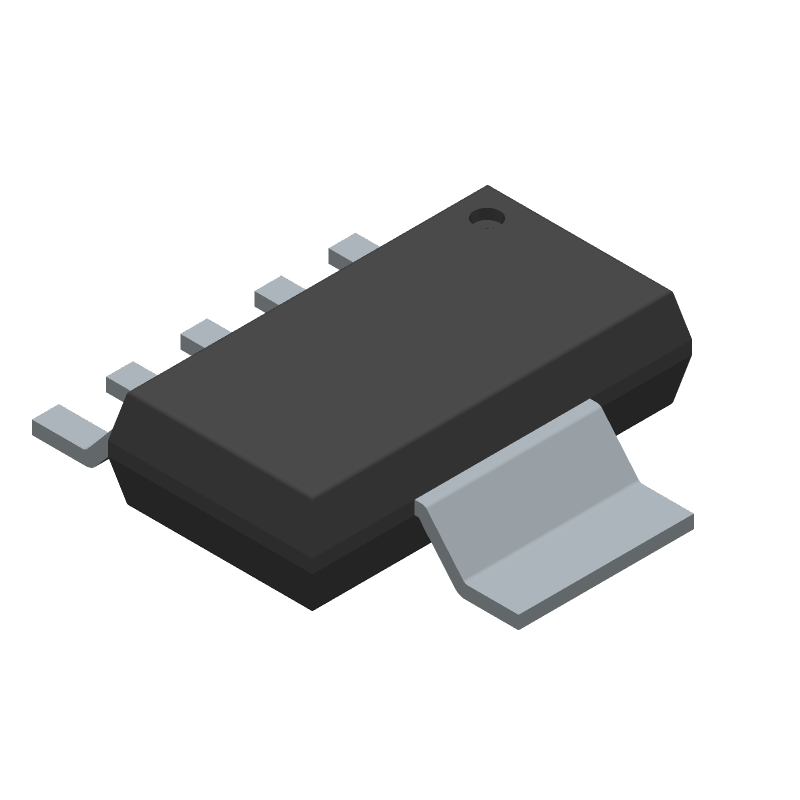

  • 3D Model
