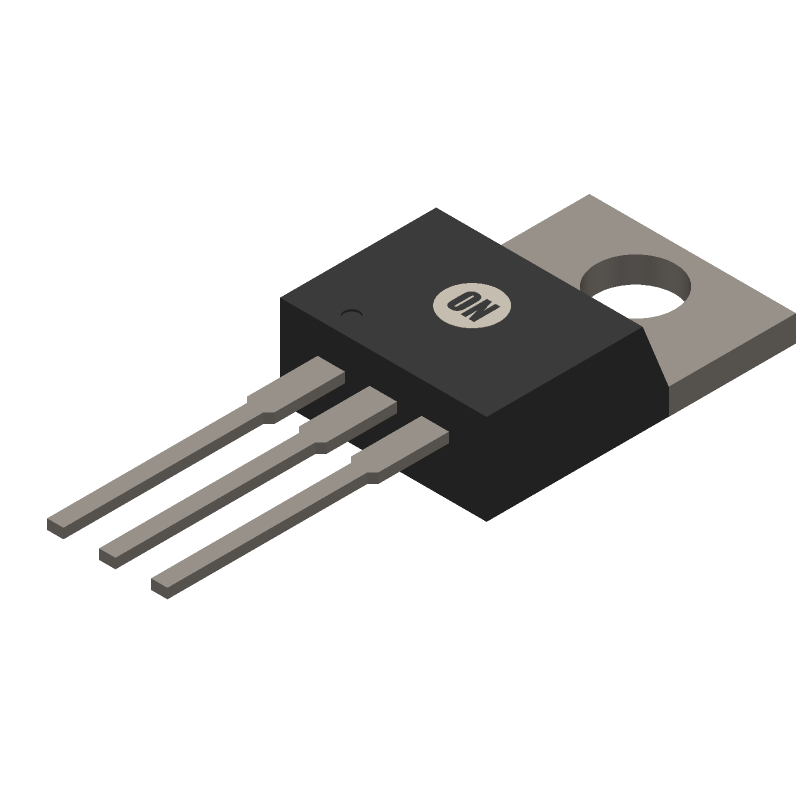

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MBR2535CTG by onsemi
Results Overview of MBR2535CTG by onsemi
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MBR2535CTG Information
MBR2535CTG by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBR2535CTG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AC3623
|
Newark | Schottky Rect, 35V, 30A, To-220, Repetitive Reverse Voltage Vrrm Max:35V, Forward Current If(Av):30A, Diode Configuration:Dual Common Cathode, Diode Case Style:To-220, No. Of Pins:3Pins, Forward Voltage Vf Max:820Mv, Forward Surge Rohs Compliant: Yes |Onsemi MBR2535CTG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 805 |
|
$1.1100 / $1.3400 | Buy Now |
|
DISTI #
MBR2535CTGOS-ND
|
DigiKey | DIODE ARRAY SCHOT 35V 30A TO-220 Min Qty: 1 Lead time: 8 Weeks Container: Tube |
4605 In Stock |
|
$0.6811 / $0.8000 | Buy Now |
|
DISTI #
MBR2535CTG
|
Avnet Americas | Schottky Rectifier, 35 V, 30 A, Dual Common Cathode, TO-220, 3 Pins, 820 mV - Rail/Tube (Alt: MBR2535CTG) RoHS: Compliant Min Qty: 950 Package Multiple: 50 Lead time: 8 Weeks, 0 Days Container: Tube | 0 |
|
$0.7031 / $0.7675 | Buy Now |
|
DISTI #
863-MBR2535CTG
|
Mouser Electronics | Schottky Diodes & Rectifiers 25A 35V RoHS: Compliant | 2961 |
|
$0.6810 / $0.7900 | Buy Now |
|
DISTI #
70100475
|
RS | Diode, Schottky Barrier, Vr 35V, If 30A, Pkg TO-220AB, Vf 0.65V, Tj +175degc, Cs 150A Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$0.7200 / $0.8400 | RFQ |
|
|
Onlinecomponents.com | Diode Schottky 35V 30A 3-Pin(3+Tab) TO-220AB Rail RoHS: Compliant | 0 |
|
$0.6630 / $0.8130 | Buy Now |
|
DISTI #
87521813
|
Verical | Diode Schottky 35V 30A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 326 Package Multiple: 1 Date Code: 2301 | Americas - 1100 |
|
$0.7151 / $1.1534 | Buy Now |
|
|
Rochester Electronics | Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 35V, TO-220AB RoHS: Not Compliant Status: Active Min Qty: 1 | 1109 |
|
$0.5721 / $0.9227 | Buy Now |
|
DISTI #
MBR2535CTG
|
TME | Diode: Schottky rectifying, THT, 35V, 30A, TO220AB, tube Min Qty: 1 | 0 |
|
$0.8800 / $1.4200 | RFQ |
|
|
ComSIT USA | AVAILABLE EU | 146 |
|
RFQ |
Part Details for MBR2535CTG
MBR2535CTG CAD Models
MBR2535CTG Part Data Attributes
|
|
MBR2535CTG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MBR2535CTG
onsemi
35 V, 25 A Schottky Rectifier, TO-220 3 LEAD STANDARD, 50-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220 3 LEAD STANDARD | |
| Package Description | LEAD FREE, PLASTIC, CASE 221A-09, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 221A | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Application | POWER | |
| Case Connection | CATHODE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.82 V | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 150 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 30 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 35 V | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE |
Alternate Parts for MBR2535CTG
This table gives cross-reference parts and alternative options found for MBR2535CTG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBR2535CTG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| VS-30CTQ035PBF | Vishay Semiconductors | Check for Price | DIODE RECTIFIER DIODE, Rectifier Diode | MBR2535CTG vs VS-30CTQ035PBF |
| 30CTQ035-G | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, Silicon, TO-220AB, LEAD FREE, PLASTIC PACKAGE-3 | MBR2535CTG vs 30CTQ035-G |
| MBR2535CT | General Instrument Corp | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 35V V(RRM), Silicon, TO-220AB, | MBR2535CTG vs MBR2535CT |
MBR2535CTG Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MBR2535CTG is -55°C to 150°C.
-
To ensure proper biasing, connect the anode to a voltage source through a current-limiting resistor, and the cathode to ground through a current-sensing resistor. Consult the datasheet for specific biasing requirements.
-
Store the MBR2535CTG in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the device to temperatures above 30°C or humidity above 60%.
-
Yes, the MBR2535CTG is suitable for switching power supply applications due to its fast switching times and low voltage drop. However, ensure proper snubber circuit design to prevent voltage spikes.
-
Handle the MBR2535CTG with ESD-protective equipment, such as wrist straps or mats, to prevent electrostatic discharge damage. Ground yourself before handling the device.
