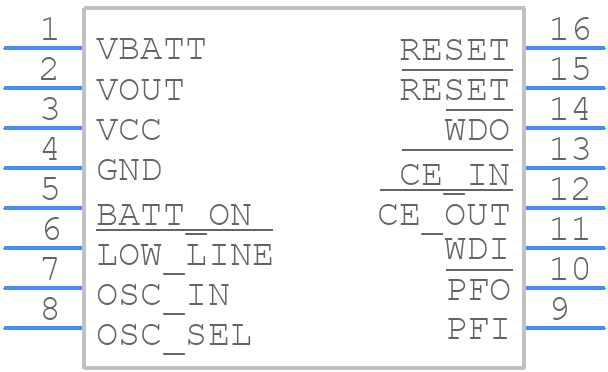

Part Symbol
-

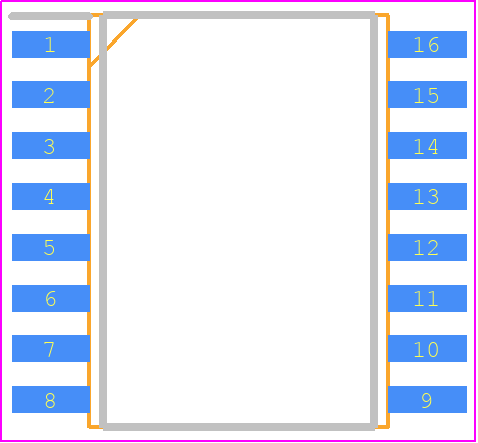

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTC695ISW-3.3#PBF by Analog Devices Inc
Results Overview of LTC695ISW-3.3#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
LTC695ISW-3.3#PBF Information
LTC695ISW-3.3#PBF by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC695ISW-3.3#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK4053
|
Newark | Mp Supervisor, Wsoic-16, 85Deg C, Reset Threshold Voltage ? Min:-, Reset Threshold Voltage ? Max:-, Reset Threshold Voltage - Nom:2.9V, No. Of Monitored Voltages:1Monitors, Supply Voltage Min:1.5V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices LTC695ISW-3.3#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 175 |
|
$10.7200 / $19.0100 | Buy Now |
|
DISTI #
LTC695ISW-3.3#PBF-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL 16SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
670 In Stock |
|
$10.7250 / $19.0100 | Buy Now |
|
DISTI #
584-LTC695ISW-3.3PBF
|
Mouser Electronics | Supervisory Circuits 3.3V uP Supy Circs RoHS: Compliant | 487 |
|
$10.7200 / $18.6400 | Buy Now |
|
|
Analog Devices Inc | 3.3V uP Supy Circs Package Multiple: 47 | 2672 |
|
$8.5800 / $19.0100 | Buy Now |
|
DISTI #
LTC695ISW-3.3PB
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 47 | 0 |
|
$11.0800 / $12.8700 | Buy Now |
Part Details for LTC695ISW-3.3#PBF
LTC695ISW-3.3#PBF CAD Models
LTC695ISW-3.3#PBF Part Data Attributes
|
|
LTC695ISW-3.3#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC695ISW-3.3#PBF
Analog Devices Inc
3.3V Microprocessor Supervisory Circuits
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | 0.300 INCH, LEAD FREE, PLASTIC, SOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1620 (SW16) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.642 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +2.9V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.62 mm |
Alternate Parts for LTC695ISW-3.3#PBF
This table gives cross-reference parts and alternative options found for LTC695ISW-3.3#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC695ISW-3.3#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC695CSW-3.3#PBF | Analog Devices Inc | $9.0617 | 3.3V Microprocessor Supervisory Circuits | LTC695ISW-3.3#PBF vs LTC695CSW-3.3#PBF |
| LTC695CSW-3.3#PBF | Linear Technology | Check for Price | LTC695-3.3 - 3.3V Microprocessor Supervisory Circuits; Package: SO; Pins: 16; Temperature Range: 0°C to 70°C | LTC695ISW-3.3#PBF vs LTC695CSW-3.3#PBF |
| LTC695ISW-3.3#PBF | Linear Technology | Check for Price | LTC695-3.3 - 3.3V Microprocessor Supervisory Circuits; Package: SO; Pins: 16; Temperature Range: -40°C to 85°C | LTC695ISW-3.3#PBF vs LTC695ISW-3.3#PBF |
| LTC695CSW-3.3 | Linear Technology | Check for Price | LTC695-3.3 - 3.3V Microprocessor Supervisory Circuits; Package: SO; Pins: 16; Temperature Range: 0°C to 70°C | LTC695ISW-3.3#PBF vs LTC695CSW-3.3 |
| LTC695CSW-3.3#TR | Analog Devices Inc | Check for Price | Power Supply Management Circuit, Fixed, 1 Channel, CMOS, PDSO16 | LTC695ISW-3.3#PBF vs LTC695CSW-3.3#TR |
| LTC695ISW-3.3#TRPBF | Linear Technology | Check for Price | LTC695-3.3 - 3.3V Microprocessor Supervisory Circuits; Package: SO; Pins: 16; Temperature Range: -40°C to 85°C | LTC695ISW-3.3#PBF vs LTC695ISW-3.3#TRPBF |
| LTC695ISW-3.3#TRPBF | Analog Devices Inc | Check for Price | 3.3V Microprocessor Supervisory Circuits | LTC695ISW-3.3#PBF vs LTC695ISW-3.3#TRPBF |
LTC695ISW-3.3#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC695ISW-3.3 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, make sure to follow the recommended PCB layout, use a sufficient output capacitor (at least 10uF), and add a 10nF capacitor between the output and ground. Also, ensure that the input voltage is within the recommended range and the device is operated within its specified temperature range.
-
The maximum input voltage that can be applied to the LTC695ISW-3.3 is 15V. Exceeding this voltage may damage the device.
-
The LTC695ISW-3.3 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures.
-
The output voltage of the LTC695ISW-3.3 can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (3.3V for the LTC695ISW-3.3).
