42V, 2.5A Synchronous Step-Down Regulator with No-Loss Input PowerPath

Part Details for LTC3126HFE#TRPBF by Analog Devices Inc

Results Overview of LTC3126HFE#TRPBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LTC3126HFE#TRPBF Information

LTC3126HFE#TRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LTC3126HFE#TRPBF

Part # Distributor Description Stock Price Buy
DISTI # LTC3126HFE#TRPBF-ND
DigiKey IC REG BUCK ADJ 2.5A 28TSSOP Min Qty: 2000 Lead time: 10 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 2,000 $6.9625
$6.9625 Buy Now
DISTI # 584-LTC3126HFE#TRPBF
Mouser Electronics Switching Voltage Regulators 42V, 2.5A Sync Buck Reg w/ No-Loss In Pw RoHS: Compliant 0
  • 2,000 $6.9600
$6.9600 Order Now
Analog Devices Inc 42V, 2.5A Sync Buck Reg w/ No- Min Qty: 2000 Package Multiple: 2000 0
  • 1 $7.6900
  • 1,000 $5.5700
  • 2,000 $6.9625
$5.5700 / $7.6900 Buy Now
DISTI # LTC3126HFETRPBF
Richardson RFPD DC TO DC CONVERTER RoHS: Compliant Min Qty: 2000 0
  • 2,000 $7.4800
  • 5,000 $7.1900
$7.1900 / $7.4800 Buy Now
Vyrian Peripheral ICs 902
RFQ

Part Details for LTC3126HFE#TRPBF

LTC3126HFE#TRPBF CAD Models

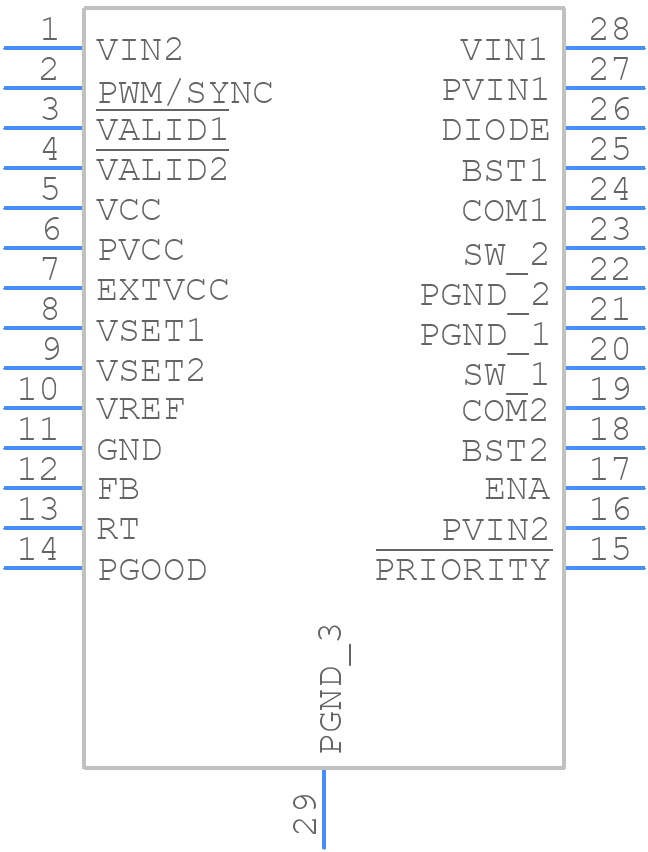

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LTC3126HFE#TRPBF Part Data Attributes

Parametric Data
LTC3126HFE#TRPBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LTC3126HFE#TRPBF Analog Devices Inc 42V, 2.5A Synchronous Step-Down Regulator with No-Loss Input PowerPath
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Pin Count 28
Manufacturer Package Code 05-08-1663 (EB)
Reach Compliance Code compliant
Samacsys Manufacturer Analog Devices
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 42 V
Input Voltage-Min 2.4 V
Input Voltage-Nom 12 V
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 9.7 mm
Number of Functions 1
Number of Terminals 28
Operating Temperature-Max 150 °C
Operating Temperature-Min -40 °C
Output Current-Max 2.5 A
Output Voltage-Max 42 V
Output Voltage-Min 0.818 V
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP28,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Seated Height-Max 1.247 mm
Supply Voltage-Nom (Vsup) 4.22 V
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 2200 kHz
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Width 4.4 mm
